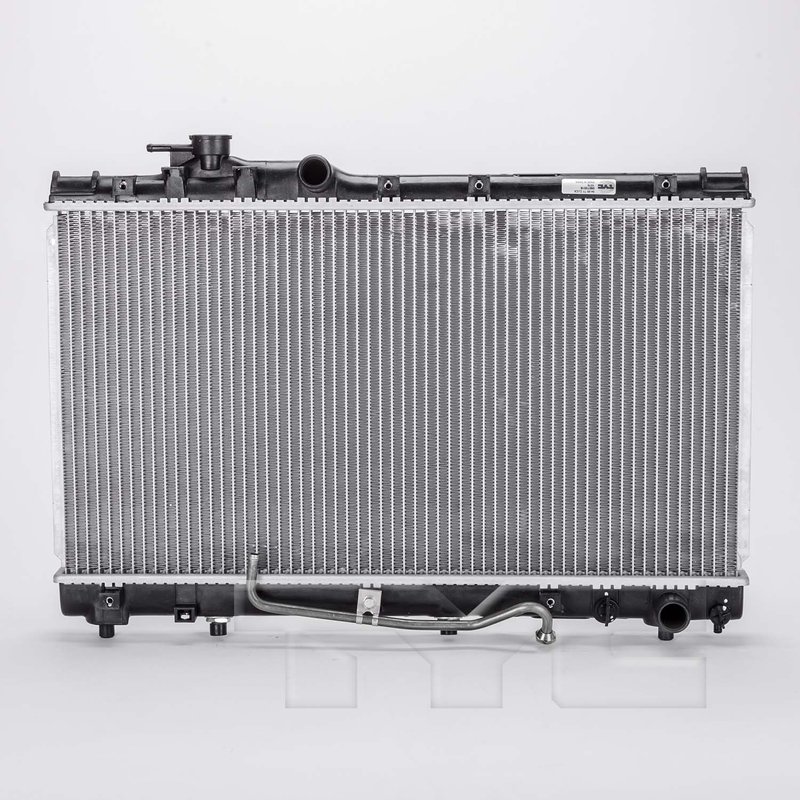

TYC 1575 Radiator
OE Quality 60-Day Returns
TYC
 TYC Radiator

TYC 1575 Radiator

Brand TYC 1575
Bottom Header 2.11x26.38
Core Height (in) 25.47
Core Length (in) 13.78
Core Material Aluminum
Core Thickness (in) 1.02
Engine Oil Cooler Included No
Fin Count (every 4") 60
Fin Wave Height (in) 0.35
Find Wave Pitch 3.4
Flow Configuration Downflow
Inlet Connection Type Hose Clamp
Inlet Diameter (in) 1.26
No. Of Rows 1
Outlet Connection Type Hose Clamp
Outlet Diameter (in) 1.26
Toc Distance (in) 8.86
Toc Inlet Diameter (in) 0.39
Toc Inlet Type Tube fitting
Toc Outlet Diameter (in) 0.39
Toc Outlet Type Tube fitting
Top Header 2.11x26.38
Total Fin Row Count 59
Total Tube Count 58
Transmission Oil Cooler Included Yes
Transmission Oil Cooler Type Concentric Oil Cooler
Tube Count (every 4") 10
Tube Width X Height 26x2
Product line TYC Radiator
Fits Toyota · 6 vehicles

Aluminum core. Lightweight construction helps promote efficient heat transfer.

Transmission oil cooler included. Adds integrated cooling for automatic transmission fluid.

Downflow design. Supports steady coolant flow through the radiator.

Cross-references APDI 8011575, DENSO 221-3133 and Partslink TO3010125 for the same application. See all 6.

$132.50Free shipping
Out of stock
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $132.50
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator options

TYC Radiator for Toyota Celica

This TYC Radiator 1575 is a direct-fit cooling replacement for 1994-1999 Toyota Celica models. Built with an aluminum core and a downflow design, it includes a concentric transmission oil cooler for vehicles equipped with automatic transmission cooling needs.

Key Features

  • Aluminum core construction for efficient heat transfer
  • Downflow flow configuration
  • Transmission oil cooler included with concentric oil cooler design
  • Hose clamp inlet and outlet connections
  • Core dimensions: 25.47 in. height, 13.78 in. length, 1.02 in. thickness
  • Single-row core with 58 total tubes and 59 total fin rows
  • Fits 1994-1999 Toyota Celica, N/A

Detailed Description

TYC Radiator 1575 is engineered for the Toyota Celica cooling system layout used across the 1994-1999 model years. The aluminum core, 1.26 in. inlet and outlet diameters, and hose clamp connections support a straightforward radiator replacement where OE-style fitment is required. This radiator also includes a concentric transmission oil cooler with tube-fitting inlet and outlet ports, making it a practical choice for Celica applications that route automatic transmission fluid through the radiator assembly. This part cross-references DENSO 221-3133 for the same application.

What It Helps Address

  • Overheating caused by a worn or restricted radiator core
  • Coolant leaks from aging radiator tanks or core seams
  • Reduced heat dissipation from damaged fins or tubes
  • Transmission fluid temperature control issues in equipped vehicles
  • Cooling system service needs on a 1994-1999 Toyota Celica

Installation Notes and Tips

Verify radiator dimensions, inlet and outlet sizes, and transmission cooler line routing before installation. Confirm hose clamp fitment and inspect related cooling system components such as hoses, clamps, thermostat, and coolant condition during replacement. For best results, flush the cooling system and check for proper bleed procedure after installation. Fits 1994-1999 Toyota Celica, N/A.

Quality Assurance

TYC Radiator 1575 is built to match the listed application and specifications for direct replacement use. It is also listed under OE and aftermarket cross-references including Toyota 16400-7A070, APDI 8011575, Spectra Premium CU1575, Partslink TO3010125, and Vista Pro 431369.

Related reading

This part fits 6 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelTransmissionLitersCylindersPositionNotes
1999ToyotaCelicaAutomatic2.2LL4N/ATYC Radiator
1998ToyotaCelicaAutomatic2.2LL4N/ATYC Radiator
1997ToyotaCelicaAutomatic2.2LL4N/ATYC Radiator
1996ToyotaCelicaAutomatic2.2LL4N/ATYC Radiator
1995ToyotaCelicaAutomatic2.2LL4N/ATYC Radiator
1994ToyotaCelicaAutomatic2.2LL4N/ATYC Radiator
Directly replaces or cross-references 6 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
APDI — 8011575DENSO — 221-3133Partslink — TO3010125Spectra Premium — CU1575Toyota — 16400-7A070Vista Pro — 431369
