TYC 1609 Radiator

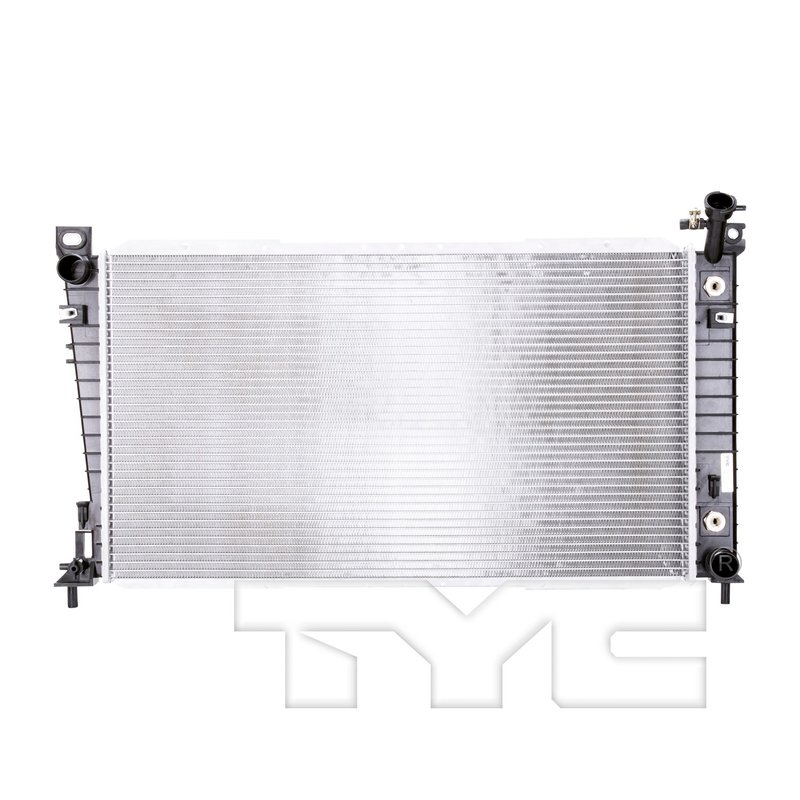

Overview of TYC Radiator 1609 for Ford Windstar

The TYC Radiator 1609 is engineered specifically for Ford Windstar models, providing reliable cooling performance with integrated transmission oil cooling. Designed with durable aluminum core material, this radiator supports efficient heat dissipation and vehicle operation.

• Core material constructed from aluminum for effective heat transfer
• Includes a plate-type transmission oil cooler for enhanced transmission cooling
• Core dimensions: 16.81 inches height, 29.92 inches length, and 1.02 inches thickness
• Crossflow design with 38 tubes and 56 fins per 4 inches for optimized airflow
• Inlet and outlet hose clamp connections with 1.50-inch diameter
• Includes rubber hose and clamp (8 mm diameter) for installation

Detailed Features of the TYC Radiator 1609

This radiator features a single-row core with a crossflow configuration, allowing coolant to flow horizontally through 38 tubes measuring 26 by 2 mm. The aluminum core ensures efficient heat exchange, supported by 56 fins every 4 inches and a fin wave height of 0.35 inches to maximize cooling surface area. The top and bottom headers measure 1.97 by 17.28 inches and 3.14 by 17.29 inches respectively, contributing to structural integrity and coolant distribution.

The integrated transmission oil cooler uses a plate oil cooler design with tube fittings of 0.33-inch diameter for both inlet and outlet, providing dedicated cooling for the transmission fluid. This feature is essential for maintaining transmission performance and longevity in Ford Windstar vehicles.

About the TYC Radiator Product Line

The TYC Radiator line focuses on delivering replacement radiators that meet or exceed OEM specifications. The TYC Radiator 1609 is part of this line, offering a balance of durability and performance with its aluminum core and integrated transmission oil cooler. This product line is designed to provide reliable cooling solutions tailored to specific vehicle applications such as the Ford Windstar.

Applications and Problem Solving

• Replaces faulty or leaking radiators in Ford Windstar models
• Addresses overheating issues caused by inefficient coolant flow
• Improves transmission cooling to prevent transmission fluid overheating
• Resolves radiator core damage or corrosion problems
• Supports engine cooling system maintenance and restoration

Installation Notes and Tips

Installation requires proper handling of hose clamp connections with 1.50-inch diameter inlet and outlet ports. The included rubber hose and clamp (8 mm diameter) should be used as specified. Ensure all connections are secure to prevent leaks. The crossflow design requires correct orientation during installation to maintain optimal coolant flow.

Quality Assurance and Warranty

TYC Radiator 1609 is manufactured to meet industry standards for durability and performance. The aluminum core construction and integrated transmission oil cooler are tested for reliability. Warranty details should be confirmed with the distributor or manufacturer to ensure coverage for defects or premature failure.
