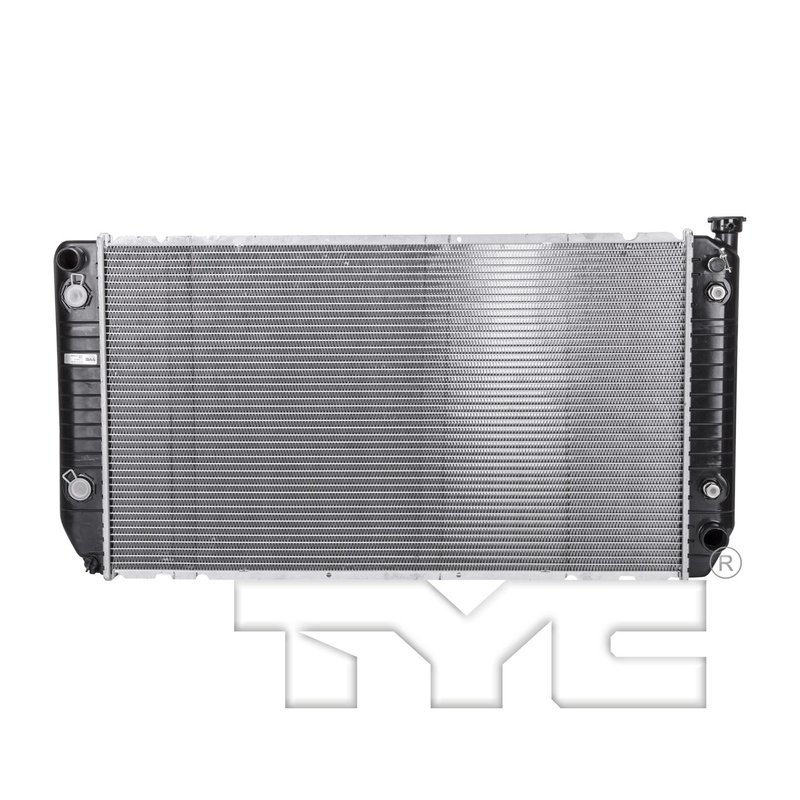

TYC 1696 Radiator

Overview of TYC Radiator Part 1696 for Chevrolet and GMC Trucks

The TYC Radiator 1696 is engineered to provide reliable cooling performance for Chevrolet and GMC heavy-duty trucks, including C2500, C2500 Suburban, C3500, K2500, K2500 Suburban, and K3500 models. Designed with durable aluminum core material and integrated oil coolers, this radiator supports efficient engine and transmission temperature management.

• Core Material: Aluminum for enhanced heat dissipation
• Includes both Engine and Transmission Plate Oil Coolers
• Crossflow flow configuration for optimized coolant circulation
• Core dimensions: 19.41" height, 34.09" length, 2.2" thickness
• Hose clamp inlet (1.38") and outlet (1.57") connections
• Single-row tube design with 44 tubes and 45 fin rows
• Compatible with Chevrolet and GMC C2500, C2500 Suburban, C3500, K2500, K2500 Suburban, and K3500

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering dependable cooling solutions tailored for specific vehicle applications. This radiator model 1696 integrates both engine and transmission oil coolers using plate oil cooler technology, which enhances heat exchange efficiency. The crossflow design and aluminum core contribute to consistent temperature regulation, supporting the performance and longevity of Chevrolet and GMC trucks.

Technical Specifications and Features

This radiator features a 3.16x20.66 inch top and bottom header, with a core thickness of 2.2 inches. It has a fin count of 41 every 4 inches and a total of 45 fin rows, which improves airflow and heat dissipation. The single-row tube configuration includes 44 tubes measuring 26x2 inches each. Both inlet and outlet connections use hose clamps, sized at 1.38 inches and 1.57 inches respectively. The integrated engine and transmission oil coolers utilize plate oil cooler types with adapter inlet and outlet fittings sized 1/2-20UNF, ensuring compatibility with the vehicle’s cooling system.

Applications and Problem Solving

• Replaces worn or leaking radiators in Chevrolet and GMC C2500, C2500 Suburban, C3500, K2500, K2500 Suburban, and K3500 trucks
• Addresses overheating issues caused by inefficient heat dissipation
• Solves transmission fluid temperature regulation problems with integrated plate oil cooler
• Prevents engine oil overheating through built-in engine oil cooler
• Restores proper coolant flow and pressure with crossflow design

Installation Notes and Tips

• Ensure compatibility with vehicle make and model before installation
• Use appropriate hose clamps for inlet and outlet connections (1.38" inlet, 1.57" outlet)
• Check and replace any worn hoses or adapters during installation
• Bleed the cooling system properly to avoid air pockets
• Verify transmission and engine oil cooler connections for secure fitment

Quality Assurance and Warranty

TYC Radiator part number 1696 is manufactured to meet OEM specifications for Chevrolet and GMC trucks. The aluminum core and integrated plate oil coolers are designed for durability and consistent performance. While specific warranty details are not provided here, TYC products typically come with a limited warranty covering defects in materials and workmanship. Refer to the product packaging or manufacturer documentation for exact warranty terms.
