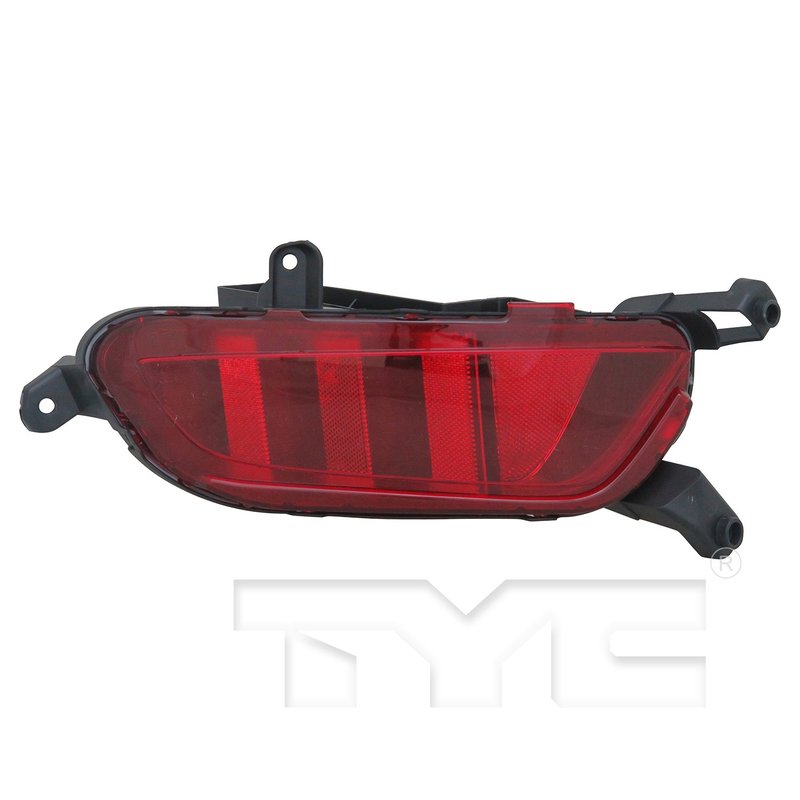

TYC 17-5624-00 Reflector Assembly - Rear Left
| Brand | TYC 17-5624-00 |
|---|---|
| Position | Rear Left |
| Bulbs Included | Yes |
| Lens Color | Red |
| Lens Material | Plastic |
| Housing Material | Plastic |
| Attachment Method | Screw in |
| Components Included | Complete assembly |
| Other Side | 17-5623-00 |
| Product line | TYC Regular |
| Fits | Mazda · 16 vehicles |
Complete assembly. Includes the reflector assembly components for a straightforward replacement.
Screw-in attachment. Installs securely with a simple screw-in method.
Red plastic lens. Uses a plastic lens and housing for a clean, durable finish.
Cross-references Mazda DB4G-51-5M0 and Partslink MA1184107 for the same application. See all 2.
Rear Left Reflector Assembly for Mazda CX-3
This TYC reflector assembly is a direct-fit exterior lighting component for the rear left side of the Mazda CX-3. Built as a complete assembly with a red lens and included bulb, it supports a clean OE-style replacement for damaged, faded, or missing rear reflectors.
TYC Regular parts are positioned as practical replacement components for everyday repair work, with fitment coverage for the Mazda CX-3 across the listed model years. Part number 17-5624-00 is also referenced by Mazda DB4G-51-5M0 and Partslink MA1184107 for the same application.
Key Features
- Rear left reflector assembly for Mazda CX-3
- Complete assembly with bulb included
- Red lens with plastic lens and housing construction
- Screw-in attachment method for secure mounting
- Direct replacement part number 17-5624-00
- Cross-reference: Mazda DB4G-51-5M0 and Partslink MA1184107
Product Details
This reflector assembly restores the rear left exterior lighting position on the Mazda CX-3 with a complete, ready-to-install design. The red plastic lens and plastic housing are built for the rear body location, while the screw-in attachment method supports a factory-style mounting approach. If you are replacing a cracked reflector, a missing rear marker, or a worn exterior lighting component, TYC 17-5624-00 provides the correct fitment for the listed CX-3 applications.
Compatible With 2022 Mazda CX-3, rear left. Compatible With 2016-2021 Mazda CX-3, rear left. This part number 17-5624-00 is the correct reference for the rear left reflector assembly on these vehicles.
Common Repair Uses
- Replacing a broken rear left reflector lens
- Restoring rear exterior visibility after impact damage
- Correcting a missing or faded reflector on the Mazda CX-3
- Repairing a worn screw-in reflector mounting point
- Returning the rear lighting appearance to OE-style condition
Installation Notes
Verify rear left position before installation and confirm the vehicle matches the listed Mazda CX-3 fitment. Use the existing screw-in mounting location and check alignment of the reflector housing before final tightening. Confirm bulb function after installation and compare the removed part to TYC 17-5624-00 when matching connectors and mounting points.
Quality Assurance
TYC Regular replacement parts are built for straightforward service use and application-specific fitment. This reflector assembly is listed for the Mazda CX-3 rear left position and cross-references to OE and aftermarket part numbers for identification and ordering accuracy.
| Year | Make | Model | Submodel | Body Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2022 | Mazda | CX-3 | I Sport | Sport Utility | Rear Left | TYC Regular |
| 2021 | Mazda | CX-3 | Sport | Sport Utility | Rear Left | Components Included: Complete Assembly; Other Side: 17-5623-00; TYC Regular |
| 2020 | Mazda | CX-3 | Sport | Sport Utility | Rear Left | Components Included: Complete Assembly; Other Side: 17-5623-00; TYC Regular |
| 2020 | Mazda | CX-3 | i Grand Touring | Sport Utility | Rear Left | Components Included: Complete Assembly; Other Side: 17-5623-00; TYC Regular |
| 2019 | Mazda | CX-3 | Grand Touring | Sport Utility | Rear Left | Components Included: Complete Assembly; Other Side: 17-5623-00; TYC Regular |
| 2019 | Mazda | CX-3 | Touring | Sport Utility | Rear Left | Components Included: Complete Assembly; Other Side: 17-5623-00; TYC Regular |
| 2019 | Mazda | CX-3 | Sport | Sport Utility | Rear Left | Components Included: Complete Assembly; Other Side: 17-5623-00; TYC Regular |
| 2018 | Mazda | CX-3 | Grand Touring | Sport Utility | Rear Left | Components Included: Complete Assembly; Other Side: 17-5623-00; TYC Regular |
| 2018 | Mazda | CX-3 | Sport | Sport Utility | Rear Left | Components Included: Complete Assembly; Other Side: 17-5623-00; TYC Regular |
| 2018 | Mazda | CX-3 | Touring | Sport Utility | Rear Left | Components Included: Complete Assembly; Other Side: 17-5623-00; TYC Regular |
| 2017 | Mazda | CX-3 | Sport | Sport Utility | Rear Left | Components Included: Complete Assembly; Other Side: 17-5623-00; TYC Regular |
| 2017 | Mazda | CX-3 | Touring | Sport Utility | Rear Left | Components Included: Complete Assembly; Other Side: 17-5623-00; TYC Regular |
| 2017 | Mazda | CX-3 | Grand Touring | Sport Utility | Rear Left | Components Included: Complete Assembly; Other Side: 17-5623-00; TYC Regular |
| 2016 | Mazda | CX-3 | Sport | Sport Utility | Rear Left | Components Included: Complete Assembly; Other Side: 17-5623-00; TYC Regular |
| 2016 | Mazda | CX-3 | Grand Touring | Sport Utility | Rear Left | Components Included: Complete Assembly; Other Side: 17-5623-00; TYC Regular |
| 2016 | Mazda | CX-3 | Touring | Sport Utility | Rear Left | Components Included: Complete Assembly; Other Side: 17-5623-00; TYC Regular |
