TYC 1704 Radiator

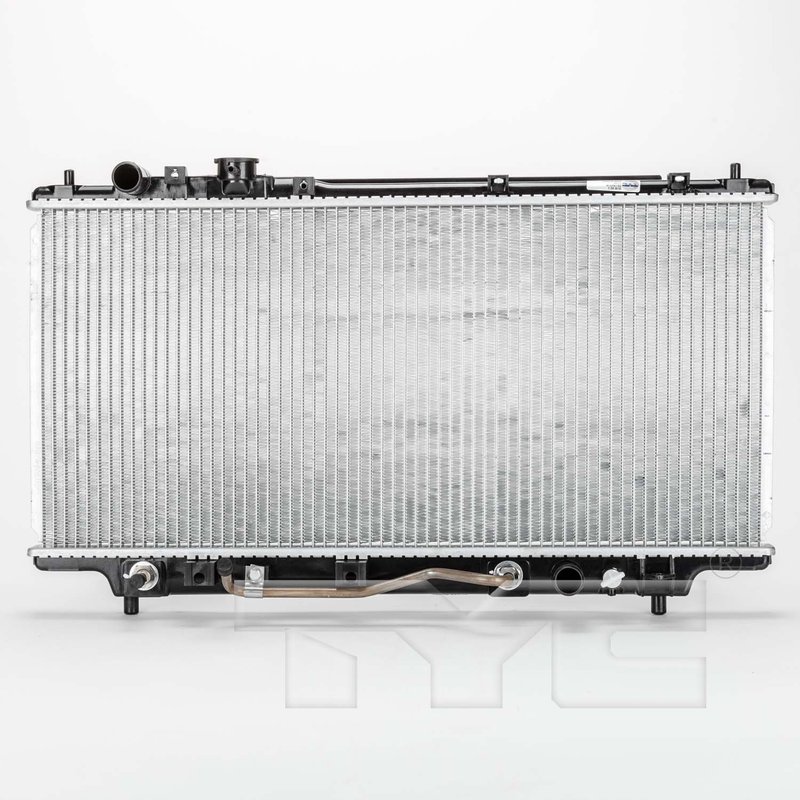

Overview of TYC Radiator 1704 for Mazda 323 and Protege

The TYC Radiator 1704 is engineered to provide reliable cooling performance for Mazda 323 and Protege models. Designed with durable aluminum core material and integrated transmission oil cooler, this radiator supports efficient engine temperature regulation and transmission fluid cooling.

• Core material constructed from aluminum for effective heat dissipation
• Includes concentric transmission oil cooler for enhanced transmission cooling
• Downflow flow configuration optimized for Mazda 323 and Protege
• Core dimensions: 27.2 inches height, 12.8 inches length, 0.63 inches thickness
• Hose clamp inlet and outlet connections with 1.10-inch diameter
• Single-row tube design with 62 tubes and 64 fins per 4 inches
• Top and bottom headers sized at 1.96 by 28.21 inches

Detailed Features of the TYC Radiator Product Line

The TYC Radiator product line focuses on delivering dependable cooling solutions with precision fitment and quality materials. This line includes radiators designed to meet or exceed OEM specifications, featuring aluminum cores and integrated transmission oil coolers where applicable. The TYC Radiator 1704 exemplifies this approach by combining a robust aluminum core with a concentric transmission oil cooler, tailored specifically for Mazda 323 and Protege vehicles.

Technical Specifications and Design Details

This radiator features a downflow configuration that directs coolant from the top to the bottom, enhancing heat exchange efficiency. The aluminum core measures 27.2 inches in height, 12.8 inches in length, and 0.63 inches in thickness, providing a balance of cooling surface area and compact design. It includes 62 tubes arranged in a single row and 64 fins every 4 inches, with fin wave height of 0.35 inches and a pitch of 3.2 inches, all contributing to effective heat dissipation.

The radiator’s inlet and outlet connections use hose clamps with a diameter of 1.10 inches, ensuring secure and leak-resistant hose attachment. The integrated concentric transmission oil cooler features tube fittings with 0.39-inch inlet and outlet diameters, supporting transmission fluid cooling without the need for a separate cooler.

Common Applications and Problem Resolution

• Replacement for damaged or leaking radiator in Mazda 323 and Protege
• Improves engine cooling efficiency to prevent overheating
• Supports transmission fluid cooling to maintain transmission performance
• Addresses coolant leaks caused by corrosion or physical damage
• Restores proper coolant flow and heat exchange in aging radiators

Installation Notes and Tips

When installing the TYC Radiator 1704, ensure all hose clamps are securely tightened to prevent leaks. Verify compatibility with Mazda 323 and Protege models before installation. The downflow design requires correct orientation for optimal coolant flow. Inspect transmission oil cooler connections for proper tube fitting engagement. It is recommended to flush the cooling system prior to installation to remove debris and contaminants.

Quality Assurance and Warranty Information

TYC Radiator 1704 is manufactured to meet industry standards for durability and performance. The aluminum core construction resists corrosion and extends service life. This radiator includes an integrated concentric transmission oil cooler designed for reliable operation. Warranty coverage details should be confirmed with the product documentation or supplier.
