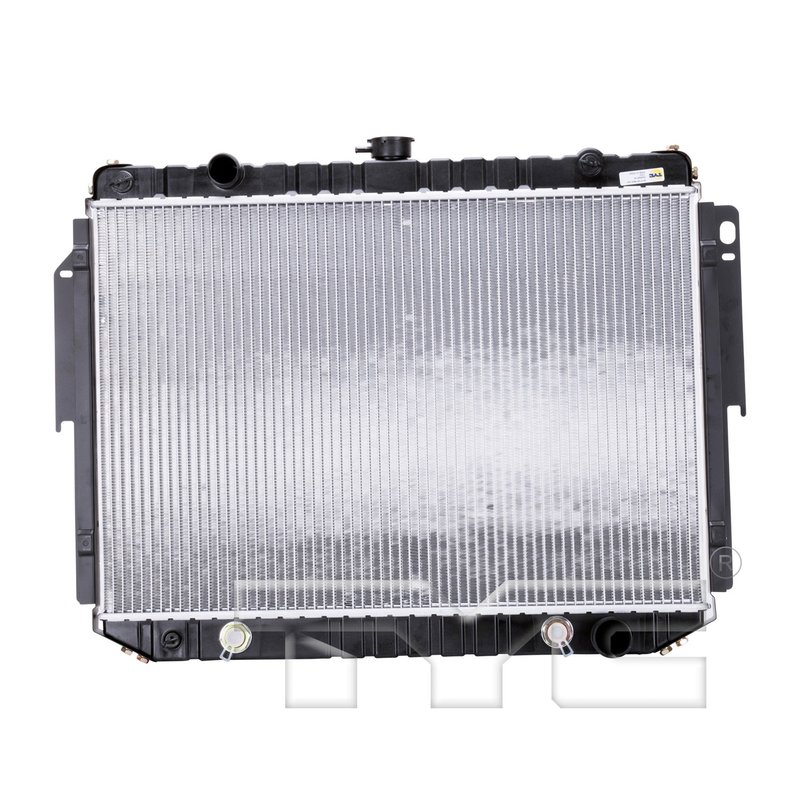

TYC 1707 Radiator

TYC Radiator for Dodge Van Cooling Service

The TYC Radiator 1707 is an aluminum replacement radiator with an integrated concentric transmission oil cooler for select Dodge Ram van applications. It is built for direct-fit cooling service on vehicles that use a hose-clamp inlet and outlet connection, including Dodge Ram 1500 Van, Ram 2500 Van, Ram 3500 Van, and related B-Series vans.

• Aluminum core construction
• Downflow flow configuration
• Transmission oil cooler included with concentric oil cooler design
• No engine oil cooler included
• Inlet diameter: 1.50 in.; outlet diameter: 1.77 in.
• Single-row core design
• Core dimensions: 26.77 in. height x 18.31 in. length x 1.26 in. thickness
• Hose clamp inlet and outlet connections

Product Details

TYC Radiator 1707 is engineered around the cooling and transmission-fluid routing needs of select Dodge vans and Ram vans from 1994 through 2003. The aluminum core, downflow layout, and integrated transmission oil cooler support OE-style replacement service where the original radiator also handled transmission cooling. This part cross-references Spectra Premium CU1707 and Chrysler 52028627AB for the same application.

Compatible With 1995-1996 Dodge Ram 1500 Van, N/A; 1997-2003 Dodge Ram 2500 Van, N/A; 1998-2003 Dodge Ram 1500 Van, N/A; 1997-2003 Dodge Ram 3500 Van, N/A; 1997-1998 Dodge B1500, Primary; 1997-1998 Dodge B2500, Primary; 1995-1998 Dodge B3500, Primary; 1998 Dodge Ram 3500 Van, Primary; 1997 Dodge Ram 1500 Van, Primary; 1994 Dodge B350, Primary.

What This Radiator Helps Address

• Overheating caused by a worn or leaking radiator core
• Transmission temperature issues tied to a failing integrated cooler
• Coolant loss from cracked tanks or aged core seams
• Poor heat transfer from clogged or damaged radiator passages
• Fitment replacement needs on Dodge Ram van and B-Series van cooling systems

Installation Notes and Tips

Verify the vehicle’s radiator style, inlet and outlet sizes, and quick-connect or hose-clamp configuration before installation. This radiator is listed for applications with quick connect notes in the fitment data, so matching the original connection style is important for proper fit. Confirm that the transmission cooler routing matches the vehicle’s factory setup before final assembly. The part number 1707 should be checked against the removed unit and vehicle application before installation.

Quality Assurance

TYC Radiator 1707 is built as a replacement cooling component for listed Dodge applications and follows the dimensional and connection details shown above. The part number 1707 is also referenced by APDI 8011707, Partslink CH3010179, Vista Pro 433961, and Spectra Premium CU1707 for the same application.
