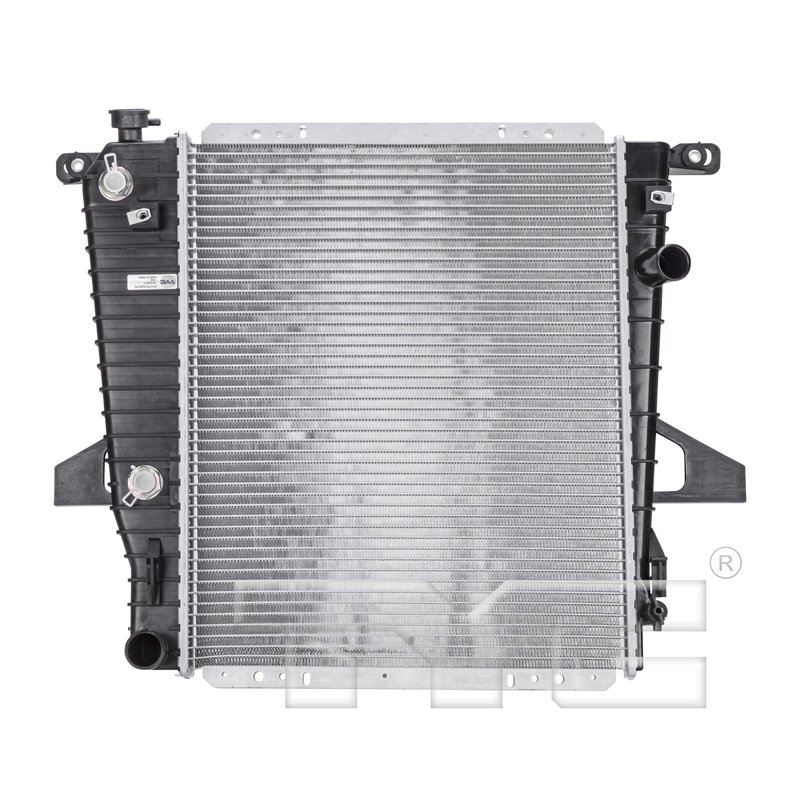

TYC 1722 Radiator

Overview of the TYC Radiator 1722 for Mazda B3000 and B4000

The TYC Radiator part number 1722 is designed specifically for Mazda B3000 and B4000 models, providing reliable cooling performance. This radiator features an aluminum core and includes a transmission oil cooler to support efficient vehicle operation.

• Core material constructed from durable aluminum
• Includes a plate-type transmission oil cooler
• Crossflow flow configuration for optimized coolant circulation
• Core dimensions: 21.14 inches height, 17.2 inches length, and 1.02 inches thickness
• Inlet and outlet hose clamp connections with 1.50-inch diameter
• Single-row tube design with 48 total tubes and 64 fins per 4 inches
• Compatible with Mazda B3000 and B4000 models

Detailed Features of the TYC Radiator Product Line

The TYC Radiator product line focuses on delivering quality cooling components engineered for specific vehicle applications. This radiator model 1722 incorporates a plate oil cooler for transmission fluid, enhancing heat dissipation and maintaining optimal transmission temperatures. The aluminum core construction ensures efficient heat transfer and corrosion resistance, while the crossflow design promotes effective coolant flow through the radiator.

Technical Specifications and Design Details

This radiator features a core height of 21.14 inches, length of 17.2 inches, and thickness of 1.02 inches, providing a compact yet efficient cooling surface. The bottom header measures 3.14 by 21.69 inches, and the top header is 1.95 by 21.68 inches. It includes 64 fins every 4 inches with a fin wave height of 0.35 inches and a fin pitch of 3.2 inches, contributing to effective heat exchange. The single-row tube configuration contains 48 tubes total, with 10 tubes every 4 inches, each measuring 26 by 2 inches. Both inlet and outlet connections use hose clamps with a diameter of 1.50 inches, facilitating secure hose attachment.

Applications and Common Issues Addressed

• Replacement for worn or leaking radiators in Mazda B3000 and B4000
• Helps resolve engine overheating caused by inefficient cooling
• Supports transmission cooling to prevent transmission fluid overheating
• Addresses coolant leaks due to damaged or corroded radiator cores
• Restores proper coolant flow and heat dissipation in aging cooling systems

Installation Notes and Tips

When installing the TYC Radiator 1722, ensure all hose clamps are securely fastened to the 1.50-inch inlet and outlet connections to prevent leaks. Verify compatibility with Mazda B3000 and B4000 models before installation. Properly bleed the cooling system after installation to remove air pockets and maintain optimal cooling performance.

Quality Assurance and Warranty Information

TYC Radiator products are manufactured to meet or exceed OEM standards for durability and performance. The aluminum core construction provides corrosion resistance and long service life. While specific warranty details are not provided here, TYC typically offers coverage against manufacturing defects. Refer to the product documentation or manufacturer for exact warranty terms.
