Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

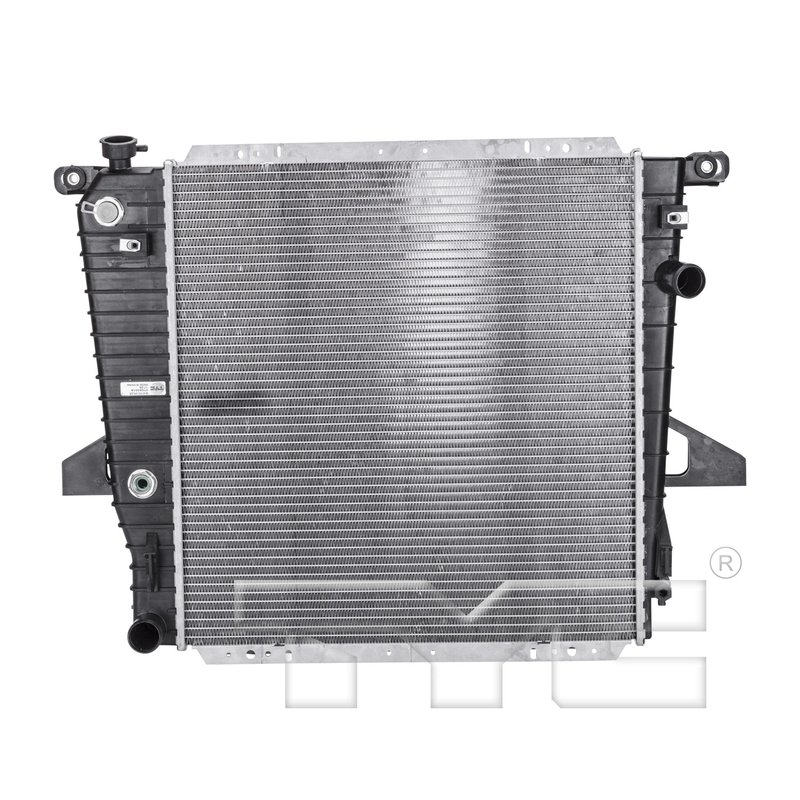

TYC 1728 Radiator
| Brand | TYC 1728 |
|---|---|
| Accessories Included | OC Adapters (5/8"-18 UNF) and Clip for S.P. |
| Bottom Header | 3.14x21.69 |
| Core Height (in) | 21.18 |
| Core Length (in) | 20.04 |
| Core Material | Aluminum |
| Core Thickness (in) | 2.2 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 55 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 3.7 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose Clamp |
| Inlet Diameter (in) | 1.50 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose Clamp |
| Outlet Diameter (in) | 1.50 |
| Toc Distance (in) | 12.01 |
| Toc Inlet Diameter (in) | 5/8-18UNF |
| Toc Inlet Type | Adapter |
| Toc Outlet Diameter (in) | 5/8-18UNF |
| Toc Outlet Type | Adapter |
| Top Header | 3.14x21.69 |
| Total Fin Row Count | 54 |
| Total Tube Count | 53 |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate Oil Cooler |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Ford · 3 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Crossflow design. Supports even coolant flow through the radiator core.
Transmission oil cooler included. Adds integrated cooling for automatic transmission fluid.
Cross-references APDI 8011728, Ford F67Z 8005 JA and Partslink FO3010149 for the same application. See all 8.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Ford Explorer Cooling Service
The TYC Radiator 1728 is a direct-fit aluminum radiator for select Ford Explorer applications. It includes a transmission oil cooler with plate-style construction and uses crossflow cooling to support stable engine temperatures in daily driving and towing conditions.
Key Features
- Aluminum core construction for efficient heat transfer
- Crossflow design with one-row core layout
- Transmission oil cooler included with plate oil cooler type
- Hose clamp inlet and outlet connections, 1.50 in. diameter
- Includes OC adapters (5/8"-18 UNF) and clip for S.P.
- Core dimensions: 21.18 in. height, 20.04 in. length, 2.2 in. thickness
- Direct replacement radiator for Ford Explorer cooling system service
Detailed Description
Built under the TYC Radiator line, part number 1728 is engineered as a replacement radiator for 1995-1996 Ford Explorer and 1997 Ford Explorer OHV applications. The aluminum core, crossflow flow configuration, and integrated transmission oil cooler help maintain coolant and transmission fluid temperature control in a single assembly. This radiator is a practical choice when replacing a leaking, clogged, or damaged OE-style unit on a Ford Explorer.
This part cross-references Spectra Premium CU1728 and Ford F67Z 8005 JA for the same application. TYC 1728 also aligns with interchange references including APDI 8011728, Partslink FO3010149, Silla Cooling 1728, Vista Pro 432412, and Visteon 9380.
Used For
- Replacing a radiator with coolant leaks
- Restoring cooling performance after core blockage or corrosion
- Addressing transmission fluid temperature control concerns tied to the radiator cooler
- Repairing overheating caused by a damaged or inefficient radiator
- Servicing a Ford Explorer cooling system with OE-style fitment
Installation Notes and Tips
Verify inlet and outlet hose sizes, transmission cooler line adapter fitment, and overall core dimensions before installation. Flush the cooling system and inspect hoses, clamps, and related cooling components for wear before installing the new radiator. Confirm application details for 1995-1996 Ford Explorer and 1997 Ford Explorer OHV models, as listed fitment is specific to those vehicles.
Quality Assurance
TYC Radiator 1728 is built with aluminum core construction and application-specific dimensions for direct replacement use. It is listed for 1995-1996 Ford Explorer and 1997 Ford Explorer OHV fitment, supporting accurate parts selection for cooling system repair.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1997 | Ford | Explorer | Automatic | 4.0L | V6 | N/A | OHV; TYC Radiator |
| 1996 | Ford | Explorer | Automatic | 4.0L | V6 | N/A | TYC Radiator |
| 1995 | Ford | Explorer | Automatic | 4.0L | V6 | N/A | TYC Radiator |
