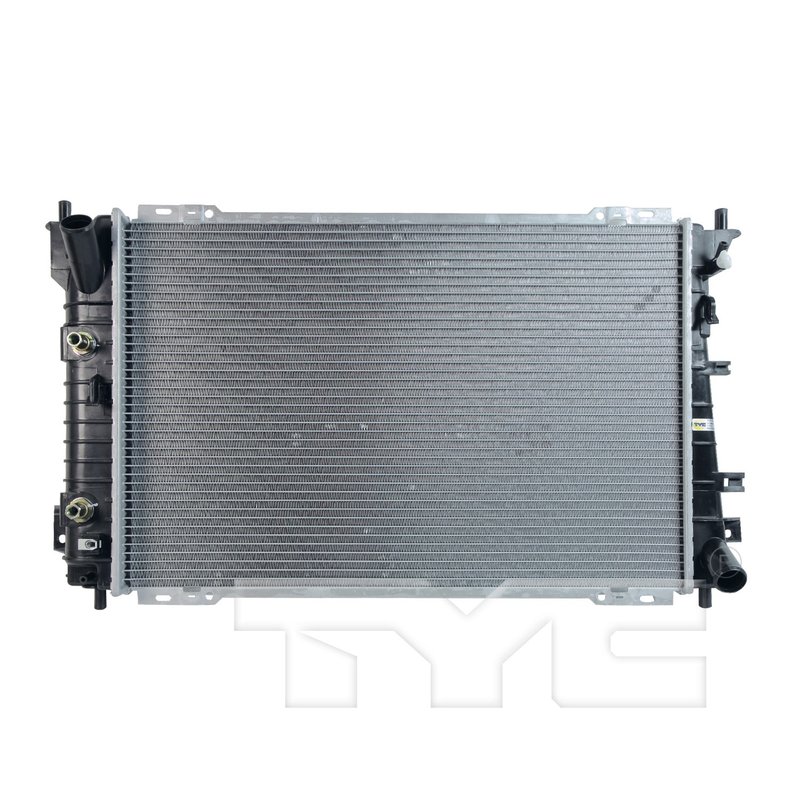

TYC 1737 Radiator
| Brand | TYC 1737 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 3.18x18.65 |
| Core Height (in) | 18.11 |
| Core Length (in) | 27.56 |
| Core Thickness (in) | 1.02 |
| Fin Count (every 4") | 60 |
| Fin Wave Height (in) | 0.35 |
| Find Wave Pitch | 3.4 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.50 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.50 |
| Toc Distance (in) | 7.99 |
| Toc Inlet Diameter (in) | 1/2-20unf |
| Toc Inlet Type | Adapter |
| Toc Outlet Diameter (in) | 1/2-20unf |
| Toc Outlet Type | Adapter |
| Top Header | 2x18.65 |
| Total Fin Row Count | 42 |
| Total Tube Count | 41 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Ford, Lincoln, and Mercury · 9 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Crossflow design. Supports even coolant flow through the radiator.
Transmission oil cooler included. Adds integrated cooling for the transmission system.
Cross-references APDI 8011737, DENSO 221-9070 and Ford F5VY 8005 C for the same application. See all 8.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Ford, Lincoln, and Mercury
The TYC Radiator 1737 is a direct-fit cooling replacement for select 1995-1997 Ford Crown Victoria, Lincoln Town Car, and Mercury Grand Marquis applications. Built with an aluminum core and a crossflow design, it includes a concentric transmission oil cooler for vehicles equipped with automatic transmission cooling through the radiator.
Key Features
- Aluminum core construction for efficient heat transfer
- Crossflow radiator design
- Transmission oil cooler included
- Concentric oil cooler type with adapter-style TOC connections
- Hose clamp inlet and outlet connections
- Single-row core design
- Core dimensions: 27.56 in. length, 18.11 in. height, 1.02 in. thickness
- Fits 1995-1997 Ford Crown Victoria, 1995-1997 Lincoln Town Car, and 1995-1997 Mercury Grand Marquis
Product Details
TYC Radiator 1737 is engineered for vehicles that use a radiator-integrated transmission cooler. The aluminum core, 41-tube layout, and 42 total fin rows are specified to match the cooling package used in these Ford, Lincoln, and Mercury full-size sedans. In addition to the main coolant circuit, the built-in transmission oil cooler uses 1/2-20 UNF adapter connections and a 7.99 in. TOC distance for the listed applications. This part cross-references Spectra Premium CU1737 and DENSO 221-9070 for the same application.
What It Helps Address
- Overheating caused by a worn or leaking radiator
- Transmission temperature issues tied to a failed radiator cooler circuit
- Coolant loss from cracked tanks or damaged core sections
- Reduced cooling performance from restricted tubes or fin damage
- Fitment problems when replacing the original radiator on Crown Victoria, Town Car, or Grand Marquis models
Installation Notes
Verify inlet and outlet hose diameter, transmission cooler line style, and core dimensions before installation. This radiator uses hose clamp inlet and outlet connections with 1.50 in. ports, so matching the original cooling system layout is important for proper fitment. Confirm the vehicle is equipped for radiator-mounted transmission oil cooling before replacement. Fits 1995-1997 Ford Crown Victoria, 1995-1997 Lincoln Town Car, and 1995-1997 Mercury Grand Marquis, N/A.
Quality Assurance
TYC supplies replacement cooling components built to match listed OE-style specifications for the application. Part number 1737 is cataloged with interchange references including Ford F5VY 8005 C, Partslink FO3010108, and TYC FD37022A.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1997 | Ford | Crown Victoria | Automatic | 4.6L | V8 | N/A | TYC Radiator |
| 1997 | Lincoln | Town Car | Automatic | 4.6L | V8 | N/A | TYC Radiator |
| 1997 | Mercury | Grand Marquis | Automatic | 4.6L | V8 | N/A | TYC Radiator |
| 1996 | Ford | Crown Victoria | Automatic | 4.6L | V8 | N/A | TYC Radiator |
| 1996 | Lincoln | Town Car | Automatic | 4.6L | V8 | N/A | TYC Radiator |
| 1996 | Mercury | Grand Marquis | Automatic | 4.6L | V8 | N/A | TYC Radiator |
| 1995 | Ford | Crown Victoria | Automatic | 4.6L | V8 | N/A | TYC Radiator |
| 1995 | Lincoln | Town Car | Automatic | 4.6L | V8 | N/A | TYC Radiator |
| 1995 | Mercury | Grand Marquis | Automatic | 4.6L | V8 | N/A | TYC Radiator |
