Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

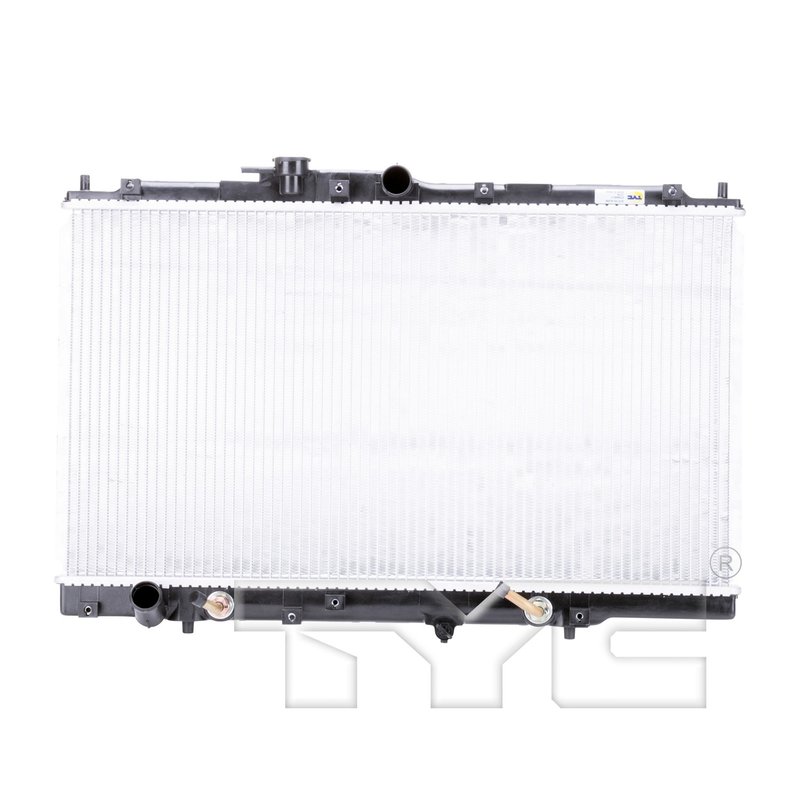

TYC 1776 Radiator
| Brand | TYC 1776 |
|---|---|
| Bottom Header | 2.02x27.66 |
| Core Height (in) | 26.69 |
| Core Length (in) | 14.76 |
| Core Material | Aluminum |
| Core Thickness (in) | 0.63 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 64 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 3.2 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose Clamp |
| Inlet Diameter (in) | 1.34 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose Clamp |
| Outlet Diameter (in) | 1.34 |
| Toc Distance (in) | 12.80 |
| Toc Inlet Diameter (in) | 0.39 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.39 |
| Toc Outlet Type | Tube fitting |
| Top Header | 1.43x27.66 |
| Total Fin Row Count | 68 |
| Total Tube Count | 67 |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric Oil Cooler |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 16x2 |
| Product line | TYC Radiator |
| Fits | Acura and Honda · 4 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Transmission oil cooler included. Adds integrated cooling for automatic transmission fluid.
Downflow design. Supports steady coolant flow through the radiator.
Cross-references APDI 8011776, CSF 2567 and DENSO 221-3201 for the same application. See all 10.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Accord and CL
The TYC Radiator 1776 is a direct-fit cooling replacement for select 1995-1997 Honda Accord and 1997 Acura CL applications. Built with an aluminum core and an integrated concentric transmission oil cooler, it addresses engine cooling and automatic transmission fluid cooling in one radiator assembly.
Key Features
- Aluminum core construction for efficient heat transfer
- Integrated transmission oil cooler included
- Concentric oil cooler design
- Downflow flow configuration
- Hose clamp inlet and outlet connections
- Single-row core layout
- TYC Radiator 1776 cross-references OE-style replacement numbers for the same application
Detailed Description
TYC part number 1776 is engineered for vehicles that require a radiator with built-in transmission cooling. The aluminum core measures 26.69 inches in height, 14.76 inches in length, and 0.63 inches in thickness, with a downflow design and 1.34-inch inlet and outlet diameters. The integrated concentric transmission oil cooler uses tube-fitting connections and is positioned to support fluid temperature control within the radiator assembly. This makes the TYC Radiator 1776 a practical replacement for 1995-1997 Honda Accord and 1997 Acura CL models that use this configuration.
The TYC Radiator line focuses on application-specific replacement radiators built to match OE-style fitment and connection points. For buyers searching for a 1995-1997 Honda Accord radiator or a 1997 Acura CL radiator, part number 1776 provides the core dimensions, hose clamp connections, and transmission cooler layout needed for a direct replacement search.
What It Helps Address
- Overheating caused by a failing radiator core
- Transmission fluid temperature control issues tied to a damaged cooler circuit
- Coolant leaks from aging radiator tanks or core seams
- Poor heat dissipation from clogged or corroded cooling passages
- Fitment problems when replacing an OE-style radiator on Accord or CL applications
Installation Notes and Tips
Verify radiator dimensions, inlet and outlet sizes, and transmission cooler line connection style before installation. Confirm that the vehicle uses a radiator with an integrated concentric transmission oil cooler and hose clamp coolant connections. Flush the cooling system, inspect hoses and clamps, and check the transmission cooler lines for contamination or wear before installing TYC 1776.
Quality Assurance
TYC manufactures replacement cooling components for vehicle-specific applications, and this radiator is built around the listed OE-style dimensions and connection types for the confirmed fitment range.
- Fits 1997 Acura CL, N/A
- Fits 1995-1997 Honda Accord, N/A
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1997 | Acura | CL | 3.0L | V6 | N/A | TYC Radiator |
| 1997 | Honda | Accord | 2.7L | V6 | N/A | TYC Radiator |
| 1996 | Honda | Accord | 2.7L | V6 | N/A | TYC Radiator |
| 1995 | Honda | Accord | 2.7L | V6 | N/A | TYC Radiator |
