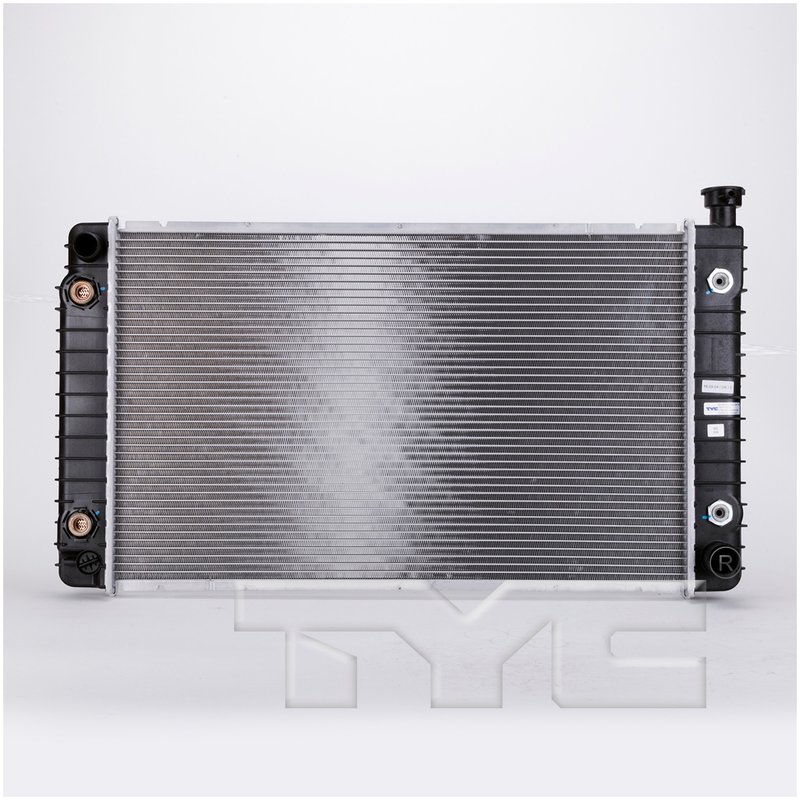

TYC 1790 Radiator

Overview of TYC Radiator Part Number 1790

The TYC Radiator 1790 is engineered for reliable cooling performance in Chevrolet and GMC trucks, including C1500, C2500, K1500, and K2500 models. Designed with durable aluminum core and plastic tanks, this radiator supports efficient engine and transmission oil cooling to maintain optimal vehicle operation.

• Core material constructed from aluminum for effective heat dissipation
• Plastic tank material for corrosion resistance and lightweight design
• Integrated plate-type transmission and engine oil coolers
• Crossflow core design with dimensions: 28.35" length, 18.43" height, and 0.92" thickness
• Hose clamp fittings for inlet and outlet connections
• Compatible with Chevrolet and GMC C1500, C2500, K1500, and K2500 trucks

Detailed Features and Specifications

This TYC Radiator 1790 features a single-row aluminum core that measures 28.35 inches in length, 18.43 inches in height, and 0.92 inches in thickness, providing a balance of cooling capacity and compact size. The radiator incorporates a crossflow flow configuration, which enhances coolant circulation efficiency. Both the transmission oil cooler and engine oil cooler utilize plate-type designs, with fittings spaced approximately 11.50 inches apart for the transmission and 11.49 inches apart for the engine oil cooler. The inlet and outlet fittings for both coolers and the radiator itself are designed for hose clamp connections, ensuring secure and straightforward installation. The radiator’s plastic tanks contribute to corrosion resistance and reduce overall weight without compromising durability.

TYC Radiator Product Line Information

The TYC Radiator product line focuses on delivering reliable cooling solutions tailored for specific vehicle applications. This line emphasizes quality core materials and precise fitment to match original equipment specifications. The TYC Radiator 1790 exemplifies this approach by combining aluminum core construction with integrated oil coolers, making it suitable for heavy-duty Chevrolet and GMC trucks requiring efficient engine and transmission cooling.

Applications and Problem Solving

• Replaces faulty or leaking radiators in Chevrolet and GMC C1500, C2500, K1500, and K2500 trucks
• Addresses overheating issues caused by inefficient heat dissipation
• Resolves transmission fluid temperature problems with integrated plate-type transmission oil cooler
• Improves engine oil cooling to prevent premature engine wear
• Eliminates coolant leaks from damaged or corroded radiator tanks

Installation Notes and Tips

• Ensure compatibility with Chevrolet and GMC C1500, C2500, K1500, and K2500 models before installation
• Use appropriate hose clamps for inlet and outlet fittings to secure connections
• Check transmission and engine oil cooler fittings for proper alignment and spacing (approximately 11.5 inches apart)
• Inspect coolant system for leaks and flush if necessary prior to installation
• Follow vehicle manufacturer torque specifications when securing radiator mounts

Quality Assurance and Warranty

The TYC Radiator 1790 is manufactured to meet or exceed OEM standards for fit, form, and function. Constructed with corrosion-resistant materials and designed for durability, this radiator supports long-term vehicle performance. Warranty coverage details should be confirmed with the product provider or manufacturer to ensure protection against defects.
