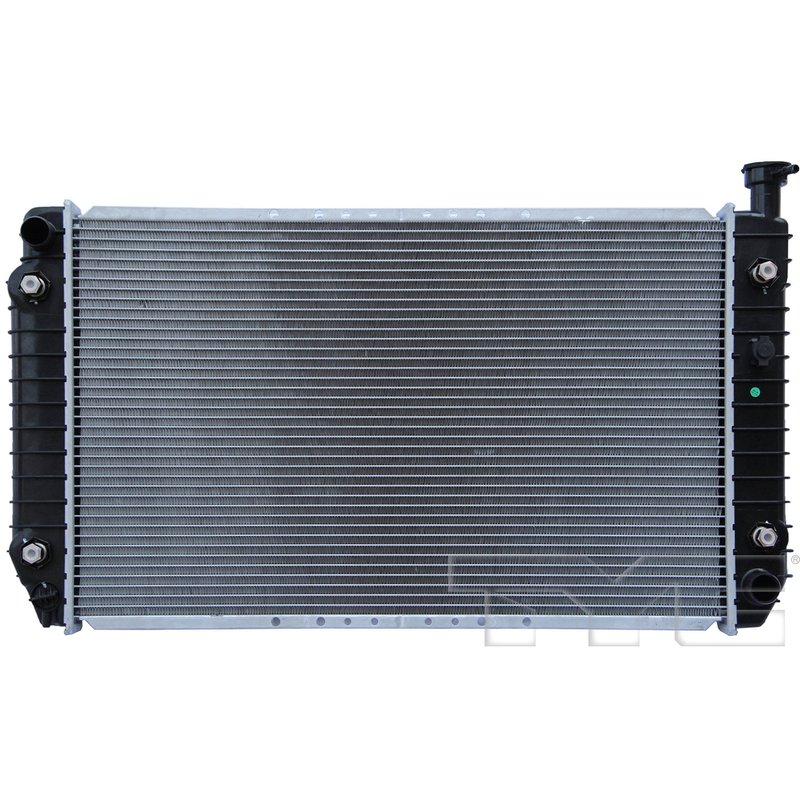

TYC 1799 Radiator
| Brand | TYC 1799 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate oil cooler |
| Engine Oil Cooler Included | No |
| Core Height (in) | 17.239999999999998 |
| Core Length (in) | 28.27 |
| Core Thickness (in) | 1.26 |
| Fin Count (every 4") | 40 |
| Fin Wave Height (in) | 0.35 |
| Find Wave Pitch | 2.8 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.3 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.3 |
| Toc Inlet Type | Hose clamp |
| Toc Outlet Diameter (in) | 0.5 |
| Toc Outlet Type | Hose clamp |
| Total Tube Count | 39 |
| Tube Width X Height | 32x39 |
| Fits | Chevrolet, Oldsmobile, and Pontiac · 3 vehicles |
Aluminum core. Helps shed heat efficiently with a lightweight, durable design.
Transmission oil cooler included. Adds integrated cooling for the transmission fluid circuit.
Crossflow design. Promotes even coolant flow through the radiator.
Cross-references 52470671 and GM3010297 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Radiator for 1996 GM Minivans
This TYC radiator, part number 1799, is built for 1996 Chevrolet Lumina APV, Oldsmobile Silhouette, and Pontiac Trans Sport applications. It uses an aluminum core with a crossflow layout and includes a transmission oil cooler for direct cooling-system service on these GM minivans.
Key Features
- Aluminum core construction for efficient heat transfer
- Crossflow design with one-row core layout
- Transmission oil cooler included with plate oil cooler design
- Hose clamp inlet and outlet connections
- Core dimensions: 17.24 in. height, 28.27 in. length, 1.26 in. thickness
- TYC radiator part number 1799
Detailed Product Overview
TYC 1799 is a replacement radiator engineered around the cooling and transmission-fluid routing needs of 1996 Chevrolet Lumina APV, 1996 Oldsmobile Silhouette, and 1996 Pontiac Trans Sport models. The aluminum core, 39 total tubes, and crossflow configuration support heat dissipation in a compact package, while the integrated plate-style transmission oil cooler adds the fluid-cooling function required by these vehicles. Inlet and outlet connections use hose clamps with 1.3 in. diameters, and the transmission oil cooler ports use hose clamp connections with a 0.5 in. outlet diameter.
This part cross-references GM3010297 and 52470671 for the same application. Use part number 1799 when verifying the correct radiator for your GM minivan cooling system service.
What This Radiator Helps Address
- Engine overheating caused by a restricted or leaking radiator
- Transmission fluid temperature concerns tied to a failed cooler circuit
- Coolant loss from cracked tanks, corroded tubes, or damaged seams
- Poor heat rejection from a worn or clogged core
- Cooling-system service needs on 1996 Chevrolet Lumina APV, Oldsmobile Silhouette, and Pontiac Trans Sport
Installation Notes and Tips
Confirm radiator dimensions, inlet and outlet sizes, and transmission cooler port routing before installation. Flush the cooling system, inspect hoses and clamps, and verify that the transmission cooler lines are clean before connecting them to the new radiator. After installation, refill with the correct coolant mixture and check for leaks at all hose clamp and cooler connections.
Quality Assurance
TYC manufactures replacement cooling components with application-specific fitment and OE-style construction details. Part number 1799 is built to match the listed 1996 Chevrolet Lumina APV, Oldsmobile Silhouette, and Pontiac Trans Sport applications.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|---|
| 1996 | Chevrolet | Lumina APV | Base | Mini Cargo Van | 3.4L | V6 | — |
| 1996 | Oldsmobile | Silhouette | — | Mini Passenger Van | 3.4L | V6 | — |
| 1996 | Pontiac | Trans Sport | — | Mini Passenger Van | 3.4L | V6 | — |
