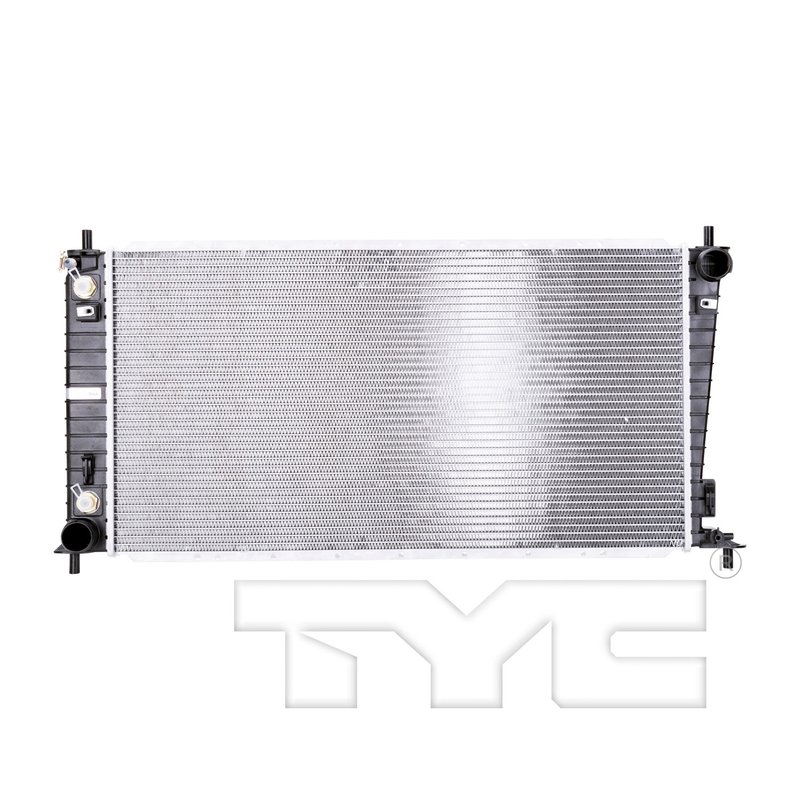

TYC 1831 Radiator

Overview of the TYC Radiator 1831 for Ford F-150 and F-250

The TYC Radiator 1831 is designed specifically for Ford F-150 and F-250 models, providing reliable cooling performance. Engineered with an aluminum core and integrated transmission oil cooler, this radiator supports efficient engine operation under demanding conditions.

• Core Material: Durable aluminum construction
• Transmission Oil Cooler: Included with plate oil cooler design
• Core Dimensions: 16.81 inches height, 31.89 inches length, 2.2 inches thickness
• Flow Configuration: Crossflow for optimized coolant circulation
• Inlet and Outlet: Hose clamp connections with 1.77-inch diameter
• Fin Count: 43 fins every 4 inches with 0.35-inch fin wave height
• Tube Count: 38 total tubes with 26x2 inch tube width and height

Detailed Features of the TYC Radiator 1831

This radiator features a single-row core with a crossflow design, enhancing heat dissipation efficiency for Ford F-150 and F-250 trucks. The aluminum core provides lightweight durability and corrosion resistance. The integrated transmission oil cooler uses a plate oil cooler type, allowing for effective transmission fluid temperature management without the need for a separate unit. Both inlet and outlet connections utilize hose clamps with a 1.77-inch diameter, ensuring secure and leak-free installation. The fin and tube configuration, including 43 fins every 4 inches and 38 tubes, supports consistent airflow and heat exchange.

About the TYC Radiator Product Line

The TYC Radiator line focuses on delivering reliable cooling solutions tailored to specific vehicle applications. This product line emphasizes quality core materials and integrated cooling components, such as transmission oil coolers, to meet the thermal management needs of modern trucks. The TYC Radiator 1831 exemplifies this approach by combining durable aluminum construction with a built-in plate oil cooler, designed to fit Ford F-150 and F-250 models precisely.

Common Applications and Issues Addressed

• Replacement for leaking or damaged radiators in Ford F-150 and F-250
• Improves engine cooling efficiency to prevent overheating
• Maintains proper transmission fluid temperature with integrated cooler
• Resolves coolant flow restrictions caused by clogged or corroded cores
• Supports vehicle performance under heavy load or towing conditions

Installation Notes and Tips

Installation requires proper handling of hose clamp connections for both inlet and outlet to ensure a secure fit. The crossflow design should be oriented correctly to match the vehicle’s coolant flow direction. It is recommended to inspect and replace any worn hoses or clamps during installation. The integrated transmission oil cooler connections use 1/2-20 UNF adapters, so compatible fittings and tools are necessary for proper attachment.

Quality Assurance and Warranty

TYC Radiator products, including part number 1831, are manufactured to meet OEM specifications for Ford F-150 and F-250 models. The aluminum core and integrated transmission oil cooler undergo quality checks to ensure durability and performance. Warranty coverage details should be confirmed with the product documentation or manufacturer, typically covering defects in materials and workmanship.
