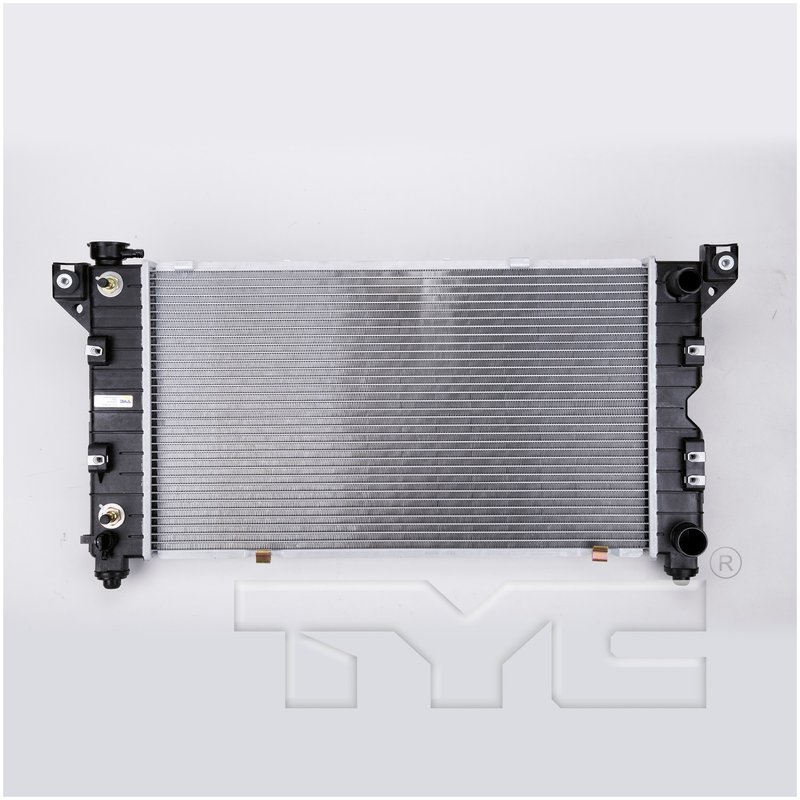

TYC 1850 Radiator

Overview of the TYC Radiator 1850 for Chrysler, Dodge, and Plymouth

The TYC Radiator part number 1850 is engineered for reliable cooling performance in select Chrysler, Dodge, and Plymouth vehicles. Designed specifically for models like the Caravan, Grand Caravan, Grand Voyager, Town & Country, and Voyager, this radiator ensures efficient engine temperature regulation and includes a transmission oil cooler for added functionality.

• Core constructed from durable aluminum for effective heat dissipation
• Includes a plate-type transmission oil cooler for integrated cooling
• Crossflow design with 1.26-inch core thickness and 64 fins per 4 inches
• Core dimensions: 14.65 inches height, 25.79 inches length
• Hose clamp inlet and outlet connections with diameters of 1.30 and 1.54 inches respectively
• Single-row tube configuration with 33 total tubes and 34 fin rows
• Compatible with Chrysler Caravan, Dodge Grand Caravan, Plymouth Voyager, and related models

TYC Radiator Product Line Details

The TYC Radiator line focuses on delivering quality cooling components that meet or exceed OEM specifications. This product line emphasizes durable aluminum cores and integrated transmission oil coolers, such as the plate oil cooler included in part number 1850. The design supports efficient heat exchange and reliable fitment for specific vehicle applications, including popular minivans from Chrysler, Dodge, and Plymouth.

Technical Description and Features

This radiator features a crossflow flow configuration that optimizes coolant movement through the core, enhancing heat transfer efficiency. The aluminum core measures 14.65 inches in height, 25.79 inches in length, and 1.26 inches in thickness, with a fin count of 64 every 4 inches and a fin wave height of 0.35 inches. The radiator includes a bottom and top header sized 2.5 by 15.74 inches, supporting structural integrity and coolant flow. The transmission oil cooler is a plate-type design with tube fitting inlet and outlet diameters of 0.35 inches, integrated to provide additional cooling for the transmission system. Hose clamp connections on the inlet and outlet ports ensure secure attachment with diameters of 1.30 and 1.54 inches respectively.

Applications and Problem Solving

• Replaces faulty or leaking radiators in Chrysler Caravan and Dodge Grand Caravan models
• Addresses overheating issues caused by inefficient heat dissipation
• Restores proper transmission cooling with the integrated plate oil cooler
• Solves coolant leaks related to damaged or corroded radiator cores
• Improves engine temperature regulation in Plymouth Voyager and Town & Country vehicles

Installation Notes and Tips

Ensure the radiator is compatible with your vehicle’s make and model before installation. Use appropriate hose clamps for inlet and outlet connections to prevent leaks. When installing the transmission oil cooler fittings, verify secure tube fitting connections to maintain transmission fluid integrity. It is recommended to flush the cooling system prior to installation to remove debris and contaminants. Follow manufacturer torque specifications for mounting hardware to avoid damage.

Quality Assurance and Warranty

TYC Radiator part number 1850 is manufactured to meet industry standards for durability and performance. The aluminum core construction provides corrosion resistance and long service life. This radiator includes a transmission oil cooler designed for reliable operation under normal driving conditions. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary by region.
