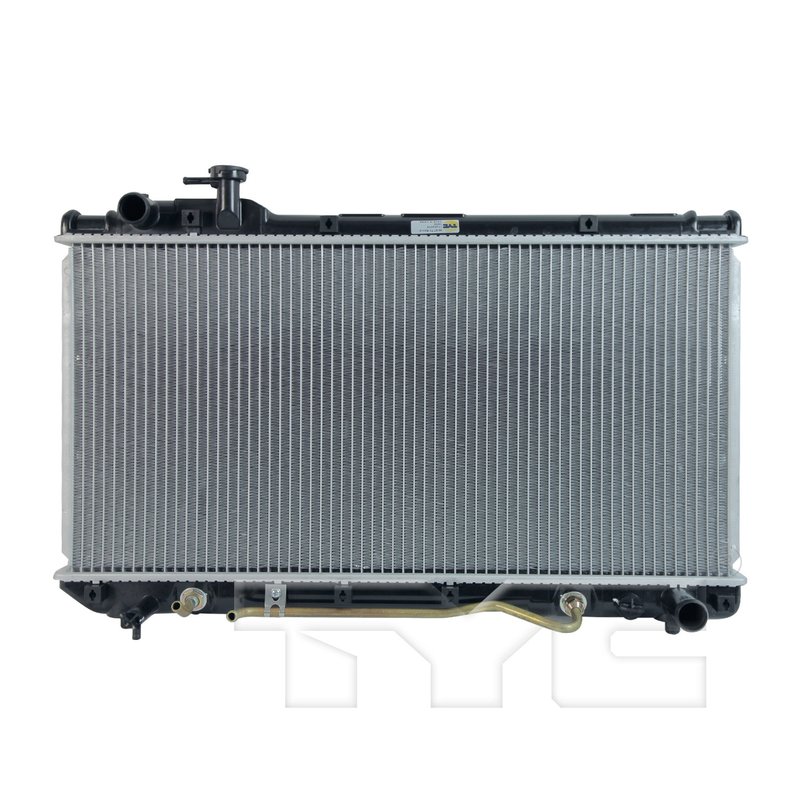

TYC 1859 Radiator
OE Quality 60-Day Returns
TYC
 TYC Radiator

TYC 1859 Radiator

Brand TYC 1859
Core Material Aluminum
Transmission Oil Cooler Included Yes
Transmission Oil Cooler Type Concentric oil cooler
Engine Oil Cooler Included No
Bottom Header 2.07x28.49
Core Height (in) 27.2
Core Length (in) 13.78
Core Thickness (in) 1.02
Fin Count (every 4") 64
Fin Wave Height (in) 0.35
Find Wave Pitch 3.2
Flow Configuration Downflow
Inlet Connection Type Hose clamp
Inlet Diameter (in) 1.26
No. Of Rows 1
Outlet Connection Type Hose clamp
Outlet Diameter (in) 1.26
Remarks Also fit 1860
Toc Distance (in) 15.75
Toc Inlet Diameter (in) 0.39
Toc Inlet Type Tube fitting
Toc Outlet Diameter (in) 0.39
Toc Outlet Type Tube fitting
Top Header 2.07x28.49
Total Fin Row Count 63
Total Tube Count 62
Tube Count (every 4") 10
Tube Width X Height 26x2
Product line TYC Radiator
Fits Toyota · 4 vehicles

Aluminum core. Lightweight construction helps promote efficient heat transfer.

Transmission oil cooler included. Adds integrated cooling for automatic transmission fluid.

Downflow design. Supports steady coolant flow through the radiator.

Cross-references APDI 8011859, CSF 2623 and DENSO 221-3134 for the same application. See all 10.

$138.66Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $138.66
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator options

TYC 1859 Radiator for Toyota RAV4

The TYC 1859 radiator is an aluminum replacement radiator with an integrated concentric transmission oil cooler for 1996-1997 Toyota RAV4 applications. It is built for downflow cooling and direct hose-clamp connections, making it a practical choice for a Toyota RAV4 radiator replacement when the original unit is leaking, clogged, or no longer cooling efficiently.

Key Features

  • Aluminum core construction for efficient heat transfer
  • Integrated transmission oil cooler included
  • Concentric oil cooler design
  • Downflow flow configuration
  • Hose clamp inlet and outlet connections
  • Single-row radiator design
  • Direct replacement reference: TYC 1859
  • Also fit reference: 1860

Product Details

This TYC Radiator line part is engineered around the listed core dimensions and connection layout for a direct-fit cooling system service on the Toyota RAV4. The radiator uses an aluminum core, 1.26-inch inlet and outlet diameters, and a concentric transmission cooler with tube-fitting connections. For buyers searching for a 1996 Toyota RAV4 radiator, 1997 Toyota RAV4 radiator, or TYC 1859 radiator replacement, this unit matches the confirmed fitment and cooling configuration.

This part cross-references Toyota 16400-7A122 for the same application.

Common Cooling System Issues It Can Address

  • Coolant leaks from a damaged or corroded radiator
  • Overheating caused by restricted coolant flow
  • Transmission fluid temperature concerns tied to a failing cooler circuit
  • Cracked plastic tanks or weakened radiator seams
  • Reduced cooling performance from an aging OE radiator

Installation Notes and Tips

Verify the radiator dimensions, inlet and outlet sizes, and transmission cooler line style before installation. Confirm hose-clamp connections and tube-fitting cooler ports match the vehicle’s existing setup on the Toyota RAV4. Flush the cooling system and inspect hoses, clamps, and coolant condition before installing the new radiator to help prevent contamination from carrying into the replacement unit.

Quality Assurance

TYC Radiator products are built as replacement cooling components with application-specific fitment and construction details listed for the vehicle shown. Confirmed fitment: 1996-1997 Toyota RAV4, N/A.

Related reading

This part fits 4 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelTransmissionLitersCylindersPositionNotes
1997ToyotaRAV4Automatic2.0LL4N/ARemarks: Also Fit 1860; TYC Radiator
1997ToyotaRAV4Manual2.0LL4N/ARemarks: Also Fit 1860; TYC Radiator
1996ToyotaRAV4Automatic2.0LL4N/ARemarks: Also Fit 1860; TYC Radiator
1996ToyotaRAV4Manual2.0LL4N/ARemarks: Also Fit 1860; TYC Radiator
Directly replaces or cross-references 10 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
APDI — 8011859CSF — 2623DENSO — 221-3134Partslink — TO3010159Silla Cooling — 7283Spectra Premium — CU1859Toyota — 16400-7A122TYC — TY37022AVista Pro — 432523Visteon — 9768
