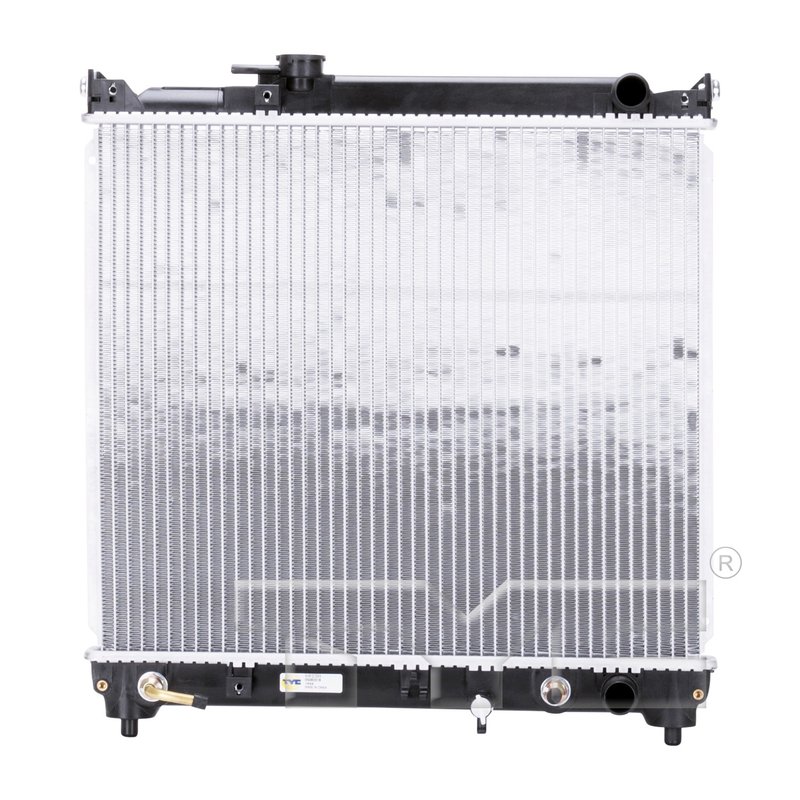

TYC 1864 Radiator - Primary
| Brand | TYC 1864 |
|---|---|
| Position | Primary |
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 2.03x20.1 |
| Core Height (in) | 18.98 |
| Core Length (in) | 16.73 |
| Core Thickness (in) | 1.02 |
| Fin Count (every 4") | 64 |
| Fin Wave Height (in) | 0.35 |
| Find Wave Pitch | 3.2 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.14 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.14 |
| Toc Distance (in) | 12.80 |
| Toc Inlet Diameter (in) | 0.31 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.31 |
| Toc Outlet Type | Tube fitting |
| Top Header | 2.03x20.1 |
| Total Fin Row Count | 44 |
| Total Tube Count | 43 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Suzuki · 12 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Transmission oil cooler included. Built with a concentric oil cooler for added cooling support.
Downflow design. Engineered for steady coolant flow through the radiator.
Cross-references APDI 8011864, CSF 2589 and DENSO 221-4802 for the same application. See all 9.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Suzuki Sidekick
The TYC Radiator 1864 is a direct-fit cooling replacement for select Suzuki Sidekick applications. Built with an aluminum core and a downflow design, it includes a concentric transmission oil cooler for vehicles equipped with automatic transmission cooling integration.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow radiator layout
- Transmission oil cooler included with concentric oil cooler design
- Hose clamp inlet and outlet connections
- Core dimensions: 18.98 in. height, 16.73 in. length, 1.02 in. thickness
- Single-row design with 43 tubes and 44 total fin rows
- Fits Suzuki Sidekick radiator replacement applications
Fitment Details
- Fits 1992-1993 Suzuki Sidekick, Primary.
- Fits 1994-1998 Suzuki Sidekick, N/A.
Detailed Description
TYC Radiator 1864 is engineered for Suzuki Sidekick cooling system service where a radiator with integrated transmission oil cooling is required. The aluminum core, downflow flow configuration, and hose clamp inlet and outlet connections support a straightforward replacement for the original radiator layout. This part cross-references DENSO 221-4802 for the same application.
For buyers searching for a 1994-1998 Suzuki Sidekick radiator replacement or a 1992-1993 Suzuki Sidekick Primary radiator, this unit matches the listed fitment and cooling configuration. The core and tube dimensions are specified to align with the vehicle’s cooling package, while the concentric transmission oil cooler adds transmission fluid cooling through the radiator assembly.
What It Is Used For
- Replacing a leaking or corroded Suzuki Sidekick radiator
- Restoring engine cooling performance after overheating
- Addressing transmission cooling concerns in automatic-equipped vehicles
- Correcting coolant loss from damaged core or header tanks
- Servicing a worn radiator with restricted heat exchange
Installation Notes and Tips
Verify inlet and outlet hose diameter, transmission cooler line style, and radiator mounting dimensions before installation. Confirm that the vehicle uses the listed radiator configuration with integrated transmission oil cooler connections. Inspect hoses, clamps, and coolant condition during replacement, and flush the cooling system if contamination or debris is present.
Quality Assurance
TYC manufactures replacement cooling components for OE-style fit and function. Part number 1864 is built to match the specified Suzuki Sidekick applications and cooling-system requirements.
| Year | Make | Model | Submodel | Body Type | # Doors | Transmission | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 1998 | Suzuki | Sidekick | — | — | — | Manual | N/A | TYC Radiator |
| 1998 | Suzuki | Sidekick | — | — | — | Automatic | N/A | TYC Radiator |
| 1997 | Suzuki | Sidekick | — | — | — | Automatic | N/A | TYC Radiator |
| 1997 | Suzuki | Sidekick | — | — | — | Manual | N/A | TYC Radiator |
| 1996 | Suzuki | Sidekick | — | — | — | Manual | N/A | TYC Radiator |
| 1996 | Suzuki | Sidekick | — | — | — | Automatic | N/A | TYC Radiator |
| 1995 | Suzuki | Sidekick | — | — | — | Manual | N/A | TYC Radiator |
| 1995 | Suzuki | Sidekick | — | — | — | Automatic | N/A | TYC Radiator |
| 1994 | Suzuki | Sidekick | — | — | — | Manual | N/A | TYC Radiator |
| 1994 | Suzuki | Sidekick | — | — | — | Automatic | N/A | TYC Radiator |
| 1993 | Suzuki | Sidekick | JS | Sport Utility | 2 Door | Manual | Primary | TYC Radiator |
| 1992 | Suzuki | Sidekick | JX | Sport Utility | 2 Door | Manual | Primary | TYC Radiator |
