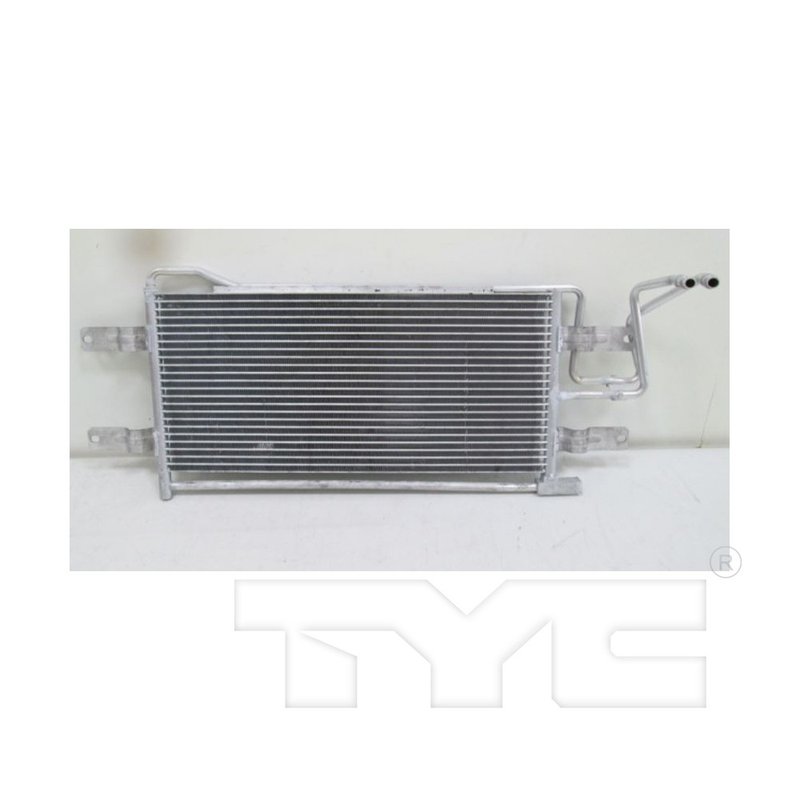

TYC 19086 Automatic Transmission Oil Cooler

Overview of TYC Automatic Transmission Oil Cooler 19086

The TYC Automatic Transmission Oil Cooler 19086 is designed to provide reliable cooling performance for Dodge Ram 2500 and Ram 3500 models. Engineered with precise dimensions and a crossflow design, this cooler helps maintain optimal transmission temperatures under demanding conditions.

• Core Height: 10.00 inches
• Core Length: 22.60 inches
• Core Thickness: 0.63 inches
• Flow Configuration: Crossflow
• Inlet Diameter: 0.50 inches with hose clamp fitting
• Outlet Diameter: 0.50 inches with hose clamp fitting

Detailed Product Description

The TYC 19086 automatic transmission oil cooler features a crossflow core design measuring 10 inches in height, 22.6 inches in length, and 0.63 inches in thickness. This configuration promotes efficient heat dissipation by allowing transmission fluid to flow horizontally across the core. Both the inlet and outlet ports have a 0.50-inch diameter and utilize hose clamp fittings, ensuring secure and leak-resistant connections. This cooler is specifically engineered for Dodge Ram 2500 and Ram 3500 trucks, providing a direct fit and reliable performance in these heavy-duty vehicles.

Compatible Vehicles and Applications

This automatic transmission oil cooler is compatible with the following Dodge models:

• Dodge Ram 2500
• Dodge Ram 3500

It is designed to help regulate transmission fluid temperature, which is critical for maintaining transmission efficiency and longevity in these trucks.

Common Issues Addressed by the TYC 19086 Oil Cooler

• Overheating of transmission fluid during heavy towing or hauling
• Reduced transmission performance due to elevated fluid temperatures
• Premature transmission wear caused by insufficient cooling
• Fluid leaks from worn or damaged coolers
• Inadequate heat dissipation in high-load driving conditions

Installation Notes and Tips

• Ensure compatibility with Dodge Ram 2500 or Ram 3500 before installation
• Use appropriate hose clamps to secure inlet and outlet fittings
• Inspect transmission fluid lines for wear or damage during installation
• Flush transmission fluid system if necessary to remove contaminants
• Follow vehicle manufacturer torque specifications for mounting hardware

Quality Assurance and Warranty

TYC manufactures the 19086 automatic transmission oil cooler to meet industry standards for durability and performance. While specific warranty details may vary, TYC products typically come with a limited warranty against defects in materials and workmanship. Refer to the product documentation or manufacturer for exact warranty terms.
