TYC 19109 Automatic Transmission Oil CoolerOE Quality 60-Day Returns

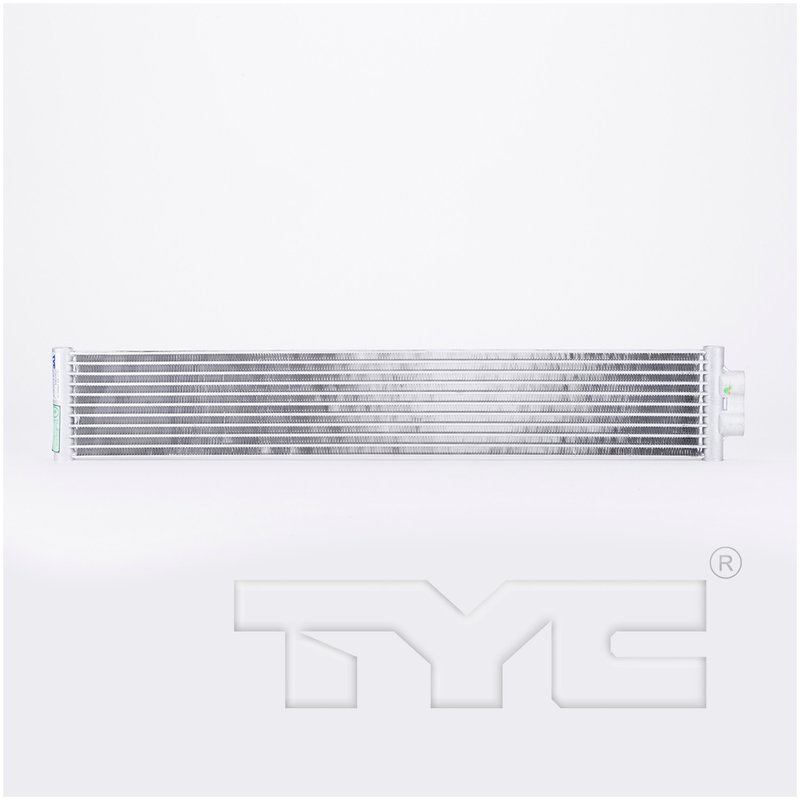

TYC 19109 Automatic Transmission Oil Cooler - view 1
TYC 19109 Automatic Transmission Oil Cooler - view 2
TYC 19109 Automatic Transmission Oil Cooler - view 3
Part #: 19109

TYC 19109 Automatic Transmission Oil Cooler

⚙️ 33 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$42.21Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Ram, ProMaster 1500, ProMaster 2500, and ProMaster 3500
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Automatic Transmission Oil Cooler options

Overview of TYC Automatic Transmission Oil Cooler 19109

The TYC 19109 automatic transmission oil cooler is designed to maintain optimal transmission fluid temperature for Ram ProMaster 1500, 2500, and 3500 models. Engineered with precise dimensions and quick connect fittings, this cooler supports efficient heat dissipation and reliable performance.

  • Core dimensions: 27.44 inches length, 4.37 inches height, 0.71 inches thickness
  • Crossflow design for effective fluid cooling
  • Inlet and outlet diameter of 0.87 inches
  • Quick connect inlet and outlet fittings for streamlined installation

Detailed Product Description

The TYC 19109 automatic transmission oil cooler features a crossflow core configuration that enhances heat exchange by allowing transmission fluid to flow horizontally across the core. Measuring 27.44 inches in length, 4.37 inches in height, and 0.71 inches thick, the cooler is engineered to fit specific Ram ProMaster models without modification. Both the inlet and outlet ports have a diameter of 0.87 inches and utilize quick connect fittings, simplifying the connection process and reducing installation time. This design ensures consistent transmission fluid temperature control, which is critical for maintaining transmission efficiency and longevity.

Applications and Problem Solving

  • Prevents transmission overheating during heavy-duty or extended driving
  • Reduces risk of transmission fluid breakdown and associated damage
  • Helps maintain smooth shifting performance in Ram ProMaster 1500, 2500, and 3500 vehicles
  • Supports transmission durability under high load or towing conditions
  • Addresses issues related to transmission fluid contamination from excessive heat

Installation Notes and Tips

When installing the TYC 19109 automatic transmission oil cooler, ensure compatibility with Ram ProMaster 1500, 2500, and 3500 models. The quick connect fittings on both inlet and outlet ports facilitate a secure and efficient connection to existing transmission lines. Verify that the cooler is mounted in a location with adequate airflow to maximize cooling efficiency. It is recommended to inspect transmission fluid levels and condition after installation to confirm proper system operation.

Quality Assurance and Warranty

TYC manufactures the 19109 automatic transmission oil cooler to meet or exceed OEM specifications for fit, form, and function. While specific warranty details are not provided, TYC products typically undergo rigorous quality control to ensure durability and reliable performance in demanding automotive applications.

BrandTYC
Part Number19109
Core Height4.37
Core Length27.44
Core Thickness0.71
Flow ConfigurationCrossflow
Inlet Diameter0.87
Inlet Fitting DesignQuick connect
Outlet Diamter0.87
Outlet Fitting DesignQuick connect

This part fits 33 vehicles. Search below:

YearMakeModelBody TypeLitersCylindersPositionNotes
2022RamProMaster 1500Standard Cargo Van3.6LV6N/A
2022RamProMaster 2500Standard Cargo Van3.6LV6N/A
2022RamProMaster 3500Standard Cargo Van3.6LV6N/A
2021RamProMaster 1500N/A
2021RamProMaster 2500N/A
2021RamProMaster 3500N/A
2020RamProMaster 1500Standard Cargo Van3.6LV6N/A
2020RamProMaster 2500Standard Cargo Van3.6LV6N/A
2020RamProMaster 3500Extended Cargo Van3.6LV6N/A
2020RamProMaster 3500Standard Cargo Van3.6LV6N/A
2019RamProMaster 1500Standard Cargo Van3.6LV6N/A
2019RamProMaster 2500Standard Cargo Van3.6LV6N/A
2019RamProMaster 3500Standard Cargo Van3.6LV6N/A
2019RamProMaster 3500Extended Cargo Van3.6LV6N/A
2018RamProMaster 1500Standard Cargo Van3.6LV6N/A
2018RamProMaster 2500Standard Cargo Van3.6LV6N/A
2018RamProMaster 3500Extended Cargo Van3.6LV6N/A
2018RamProMaster 3500Standard Cargo Van3.6LV6N/A
2017RamProMaster 1500Standard Cargo Van3.6LV6N/A
2017RamProMaster 2500Standard Cargo Van3.6LV6N/A
2017RamProMaster 3500Standard Cargo Van3.6LV6N/A
2017RamProMaster 3500Extended Cargo Van3.6LV6N/A
2016RamProMaster 1500Standard Cargo Van3.6LV6N/A
2016RamProMaster 2500Standard Cargo Van3.6LV6N/A
2016RamProMaster 3500Standard Cargo Van3.6LV6N/A
2016RamProMaster 3500Extended Cargo Van3.6LV6N/A
2015RamProMaster 1500Standard Cargo Van3.6LV6N/A
2015RamProMaster 2500Standard Cargo Van3.6LV6N/A
2015RamProMaster 3500Standard Cargo Van3.6LV6N/A
2015RamProMaster 3500Extended Cargo Van3.6LV6N/A
2014RamProMaster 1500Standard Cargo Van3.6LV6N/A
2014RamProMaster 2500Standard Cargo Van3.6LV6N/A
2014RamProMaster 3500Standard Cargo Van3.6LV6N/A

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

CH4050145

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
