TYC 19136 Automatic Transmission Oil CoolerOE Quality 60-Day Returns
Part #: 19136

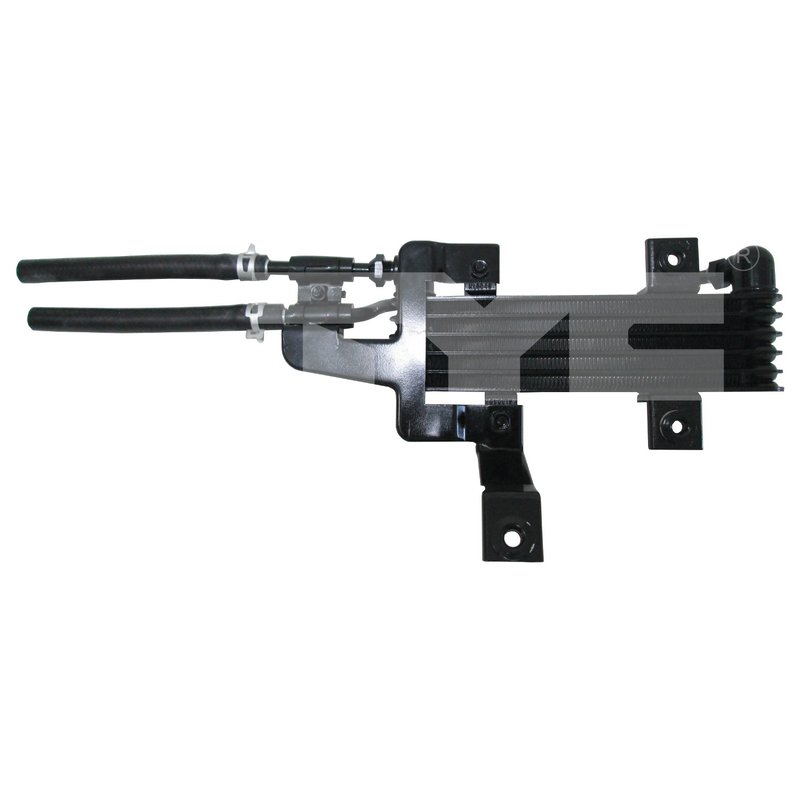

TYC 19136 Automatic Transmission Oil Cooler

23 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$96.99Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Acura and Honda, MDX and Ridgeline
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Automatic Transmission Oil Cooler options

Automatic Transmission Oil Cooler for Honda and Acura

This TYC automatic transmission oil cooler helps manage transmission fluid temperature in select Honda Ridgeline and Acura MDX applications. Built as a crossflow cooler with hose clamp inlet and outlet connections, it is sized for direct replacement use where the original cooler matches the listed dimensions.

Key Features

  • TYC Part Number 19136 automatic transmission oil cooler
  • Crossflow core design for efficient fluid cooling
  • Core dimensions: 9.80 in. length, 2.43 in. height, 1.26 in. thickness
  • 0.39 in. inlet and outlet diameters with hose clamp fittings
  • Direct-fit replacement for select Honda Ridgeline and Acura MDX applications
  • Cross-references Honda and Acura OE part number 25500-5J8-013
  • Cross-references Partslink HO4050103

Product Details

TYC 19136 is an automatic transmission oil cooler engineered for vehicles that use a compact crossflow cooler layout. The core measures 9.80 inches long, 2.43 inches high, and 1.26 inches thick, with 0.39-inch inlet and outlet connections designed for hose clamp attachment. This configuration supports fluid routing in the transmission cooling circuit and matches the listed OE-style application requirements for 2017-2019 Honda Ridgeline and 2014-2015 Acura MDX.

Fits 2017-2019 Honda Ridgeline, N/A. Fits 2014-2015 Acura MDX, N/A. If you are replacing a leaking or restricted cooler, TYC Part Number 19136 provides the specified dimensions and connection style for these applications.

Common Uses

  • Replacing a damaged transmission oil cooler
  • Restoring transmission fluid cooling after a leak
  • Addressing overheating concerns tied to restricted cooler flow
  • Replacing a corroded or impact-damaged cooler assembly
  • Matching OE-style cooler dimensions on Honda Ridgeline and Acura MDX models

Installation Notes

Verify core dimensions, inlet and outlet size, and hose clamp connection style before installation. Confirm the vehicle application against the listed fitment for 2017-2019 Honda Ridgeline and 2014-2015 Acura MDX. Inspect transmission lines and clamps for wear during replacement, and flush the cooling circuit if contamination is present.

Quality Assurance

TYC manufactures replacement cooling components for OE-style fitment and dimensional accuracy. Part Number 19136 cross-references Honda and Acura 25500-5J8-013 and Partslink HO4050103 for the same application.

BrandTYC
Part Number19136
Core Height2.43
Core Length9.80
Core Thickness1.26
Flow ConfigurationCrossflow
Inlet Diameter0.39
Inlet Fitting DesignHose clamp
Outlet Diamter0.39
Outlet Fitting DesignHose clamp

This part fits 23 vehicles. Search below:

YearMakeModelSubmodelBody TypeLitersCylindersPositionNotes
2019HondaRidgelineRTL-ECrew Cab Pickup3.5LV6N/A
2019HondaRidgelineRTL-TCrew Cab Pickup3.5LV6N/A
2019HondaRidgelineRTCrew Cab Pickup3.5LV6N/A
2019HondaRidgelineRTLCrew Cab Pickup3.5LV6N/A
2019HondaRidgelineSportCrew Cab Pickup3.5LV6N/A
2019HondaRidgelineBlack EditionCrew Cab Pickup3.5LV6N/A
2018HondaRidgelineRTL-TCrew Cab Pickup3.5LV6N/A
2018HondaRidgelineRTL-ECrew Cab Pickup3.5LV6N/A
2018HondaRidgelineSportCrew Cab Pickup3.5LV6N/A
2018HondaRidgelineBlack EditionCrew Cab Pickup3.5LV6N/A
2018HondaRidgelineRTCrew Cab Pickup3.5LV6N/A
2018HondaRidgelineRTLCrew Cab Pickup3.5LV6N/A
2017HondaRidgelineRTL-ECrew Cab Pickup3.5LV6N/A
2017HondaRidgelineRTCrew Cab Pickup3.5LV6N/A
2017HondaRidgelineRTL-TCrew Cab Pickup3.5LV6N/A
2017HondaRidgelineRTLCrew Cab Pickup3.5LV6N/A
2017HondaRidgelineSportCrew Cab Pickup3.5LV6N/A
2017HondaRidgelineRTSCrew Cab Pickup3.5LV6N/A
2017HondaRidgelineBlack EditionCrew Cab Pickup3.5LV6N/A
2015AcuraMDXBaseSport Utility3.5LV6N/A
2015AcuraMDXSH-AWDSport Utility3.5LV6N/A
2014AcuraMDXBaseSport Utility3.5LV6N/A
2014AcuraMDXSH-AWDSport Utility3.5LV6N/A

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

25500-5J8-013

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
