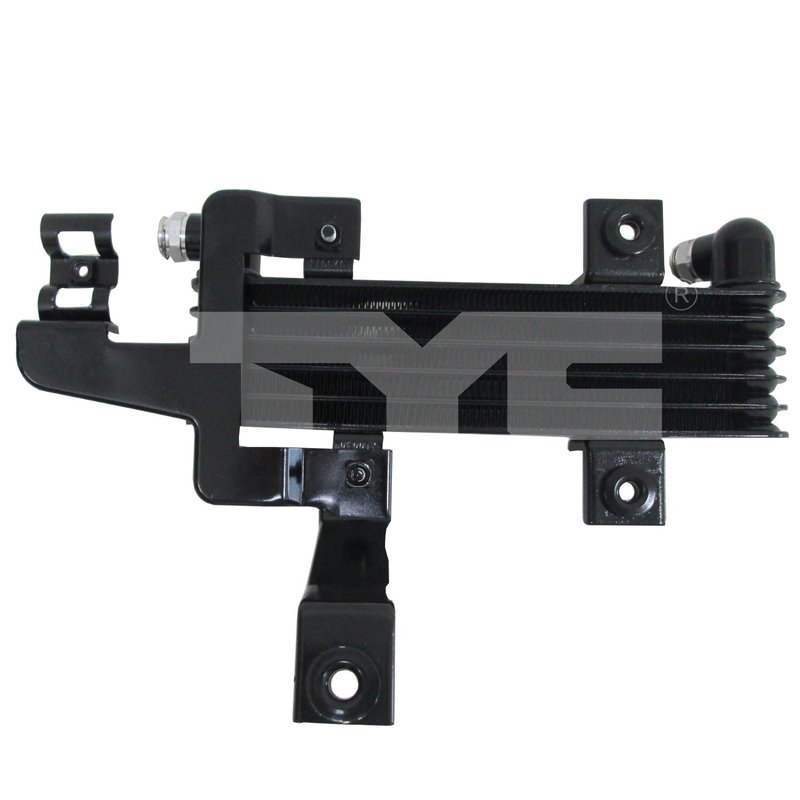

TYC 19141 Automatic Transmission Oil Cooler
| Brand | TYC 19141 |
|---|---|
| Core Height | 2.43 |
| Core Length | 9.80 |
| Core Thickness | 1.26 |
| Flow Configuration | Crossflow |
| Inlet Diameter | 0.49 |
| Inlet Fitting Design | Quick connect |
| Outlet Diamter | 0.49 |
| Outlet Fitting Design | Quick connect |
| Fits | Acura · 10 vehicles |
Quick-connect fittings. Simplifies hose attachment for a cleaner, faster install.
Crossflow design. Promotes efficient fluid movement through the cooler.
Automatic transmission oil cooler. Helps manage transmission fluid temperature.
Cross-references Acura 25500-5NC-013 and Partslink AC4050108 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Automatic Transmission Oil Cooler for Acura MDX
This TYC automatic transmission oil cooler is built for 2016-2020 Acura MDX applications and is shaped for direct replacement use in the cooling circuit. Part number 19141 is a crossflow cooler with quick connect inlet and outlet fittings for a clean OE-style connection.
- Fits 2016-2020 Acura MDX
- TYC part number 19141
- Crossflow core design for transmission fluid cooling
- Core dimensions: 9.80 in. length, 2.43 in. height, 1.26 in. thickness
- 0.49 in. inlet and outlet diameters with quick connect fitting design
Product Details
TYC 19141 is an automatic transmission oil cooler engineered around compact core dimensions and a crossflow layout to route transmission fluid through the cooler efficiently. The quick connect inlet and outlet fittings measure 0.49 in., helping match OE-style hose connections on the Acura MDX. This cooler cross-references Acura 25500-5NC-013 and Partslink AC4050108 for the same application.
For Acura MDX owners searching for a transmission oil cooler replacement, TYC 19141 provides a direct-fit solution for 2016, 2017, 2018, 2019, and 2020 models. It is a practical choice when replacing a leaking, restricted, or damaged cooler in the transmission cooling system.
Common Reasons for Replacement
- Transmission fluid cooler leakage
- Restricted fluid flow through the cooler
- Physical damage from road debris or corrosion
- Overheating concerns tied to reduced cooling performance
- Failed OE cooler on a 2016-2020 Acura MDX
Installation Notes
Verify the existing cooler dimensions, inlet and outlet size, and quick connect style before installation. Inspect the transmission lines and surrounding cooling components for wear, contamination, or damage, and confirm all connections are fully seated after installation. This part is listed for Acura MDX models only and should be matched to the vehicle’s original cooler configuration.
Quality Assurance
TYC manufactures replacement cooling components for OE-style fit and function. Part number 19141 is cataloged for direct application matching on the Acura MDX and is supported by OE and aftermarket cross-reference data.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2020 | Acura | MDX | Base | Sport Utility | 3.5L | V6 | N/A | — |
| 2020 | Acura | MDX | SH-AWD | Sport Utility | 3.5L | V6 | N/A | — |
| 2019 | Acura | MDX | Base | Sport Utility | 3.5L | V6 | N/A | — |
| 2019 | Acura | MDX | SH-AWD | Sport Utility | 3.5L | V6 | N/A | — |
| 2018 | Acura | MDX | SH-AWD | Sport Utility | 3.5L | V6 | N/A | — |
| 2018 | Acura | MDX | Base | Sport Utility | 3.5L | V6 | N/A | — |
| 2017 | Acura | MDX | Base | Sport Utility | 3.5L | V6 | N/A | — |
| 2017 | Acura | MDX | SH-AWD | Sport Utility | 3.5L | V6 | N/A | — |
| 2016 | Acura | MDX | SH-AWD | Sport Utility | 3.5L | V6 | N/A | — |
| 2016 | Acura | MDX | Base | Sport Utility | 3.5L | V6 | N/A | — |
| No rows match your filter. | ||||||||
