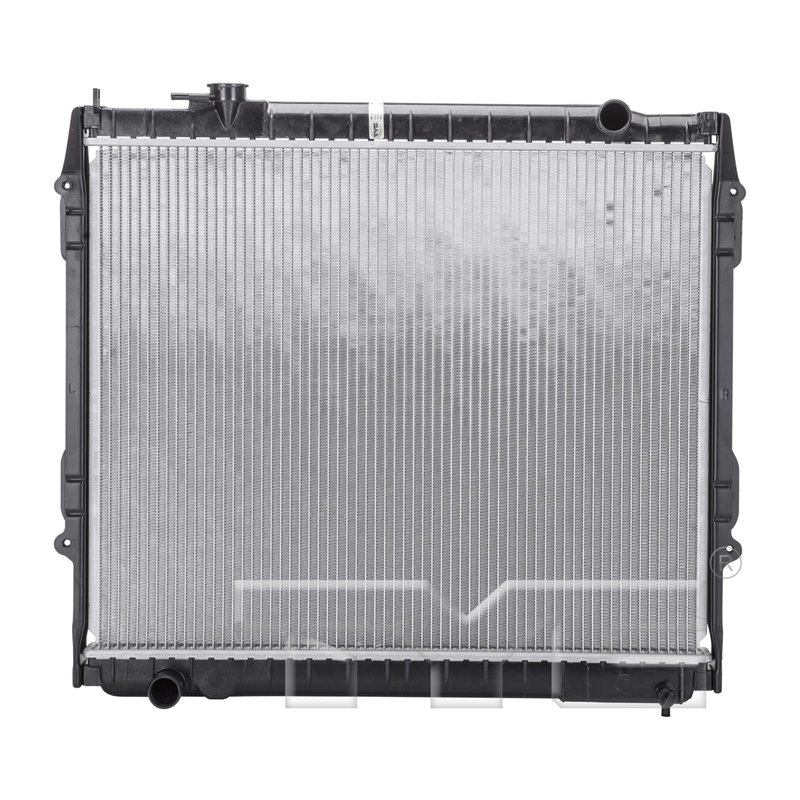

TYC 1985 Radiator

Overview of the TYC Radiator 1985 for Toyota Tacoma

The TYC Radiator part number 1985 is designed specifically for Toyota Tacoma models, providing reliable cooling performance. Constructed with an aluminum core, this radiator supports efficient heat dissipation to maintain optimal engine temperature.

• Core Material: Durable aluminum for effective heat transfer
• Core Dimensions: 24.72 inches height, 20.67 inches length, 0.87 inches thickness
• Flow Configuration: Downflow design for consistent coolant circulation
• Connection Types: Hose clamp inlet and outlet with 1.34-inch diameter
• Fin and Tube Count: 64 fins per 4 inches and 62 tubes total for enhanced cooling
• Single-row tube design with 22x2 inch tube width and height
• Top and Bottom Headers sized at 2.2x25.93 inches

TYC Radiator Product Line Details

The TYC Radiator line focuses on delivering quality cooling components engineered to meet or exceed OEM specifications. This radiator model 1985 is part of that line, offering a balance of durability and performance tailored for the Toyota Tacoma. The aluminum core and precise fin count contribute to effective heat exchange, supporting engine longevity and consistent operation.

Technical Description and Features

This radiator features a downflow flow configuration, which directs coolant downward through the core, optimizing heat dissipation. The aluminum core material enhances thermal conductivity while reducing weight compared to traditional copper cores. With 64 fins every 4 inches and a fin wave height of 0.31 inches, the design maximizes airflow and cooling efficiency. The radiator includes a single row of tubes, each measuring 22 by 2 inches, arranged to provide uniform coolant distribution. Both inlet and outlet connections use hose clamps with a 1.34-inch diameter, ensuring secure and leak-resistant hose attachment. The top and bottom headers measure 2.2 by 25.93 inches, providing structural support and coolant flow management.

Compatible Applications and Common Issues Addressed

• Replacement for damaged or leaking radiators in Toyota Tacoma vehicles
• Resolves engine overheating caused by inefficient cooling systems
• Addresses coolant leaks due to corrosion or physical damage
• Improves cooling performance in older or high-mileage Tacoma models
• Supports engine temperature regulation under heavy load or towing conditions

Installation Notes and Tips

When installing the TYC Radiator 1985, ensure the hose clamp connections for both inlet and outlet are properly secured to prevent leaks. Verify that the radiator core dimensions match the vehicle’s specifications to avoid fitment issues. It is recommended to flush the cooling system before installation to remove debris and contaminants. Check for proper alignment of the top and bottom headers during mounting to maintain coolant flow integrity.

Quality Assurance and Warranty

TYC Radiator products are manufactured to meet industry standards for durability and performance. The aluminum core construction provides resistance to corrosion and thermal stress. While specific warranty details are not provided here, TYC typically offers coverage against manufacturing defects. For precise warranty information, refer to the product documentation or manufacturer’s website.
