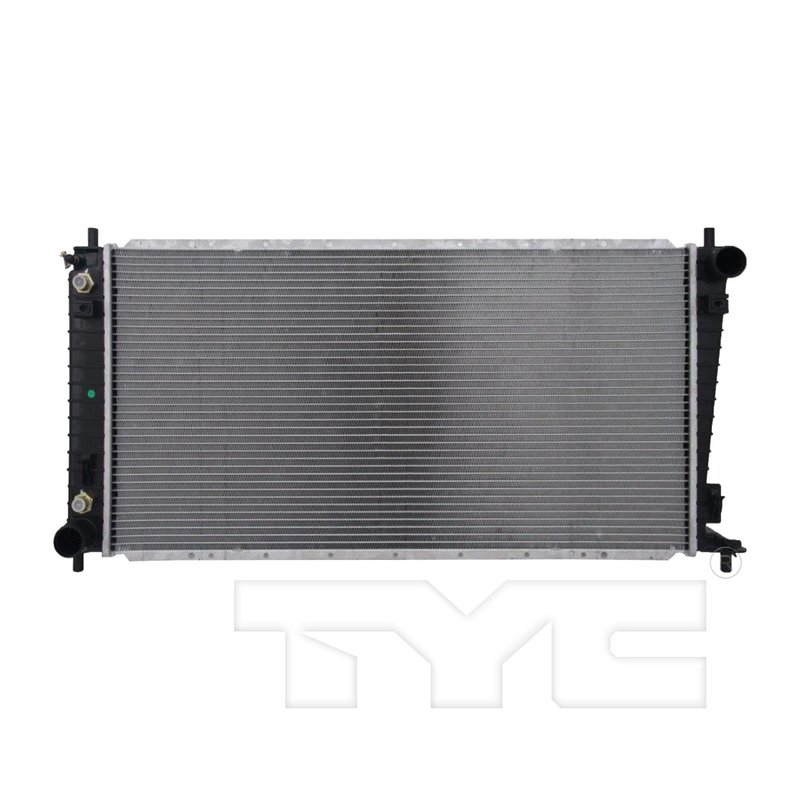

TYC 1996 Radiator - Primary

Overview of the TYC Radiator 1996 for Ford F-150 and F-250

The TYC Radiator part number 1996 is engineered to provide reliable cooling performance for Ford F-150 and F-250 trucks. Designed with durable aluminum core material and integrated transmission oil cooler, this radiator supports efficient engine operation under demanding conditions.

• Core material constructed from aluminum for effective heat dissipation
• Includes a plate-type transmission oil cooler for enhanced transmission cooling
• Crossflow flow configuration for optimized coolant circulation
• Core dimensions: 16.81 inches height, 31.89 inches length, and 2.2 inches thickness
• Hose clamp inlet and outlet connections with 1.77-inch diameter
• Single-row tube design with 38 total tubes and 39 fin rows
• Compatible with Ford F-150 and F-250 models

TYC Radiator Product Line Details

The TYC Radiator line focuses on delivering dependable cooling solutions tailored to specific vehicle applications. This product line emphasizes quality core materials and integrated cooling features such as transmission oil coolers, ensuring compatibility and performance for Ford trucks. The TYC Radiator 1996 exemplifies this approach by combining aluminum construction with a plate oil cooler to maintain optimal engine and transmission temperatures.

Technical Specifications and Features

This radiator features a crossflow design that promotes efficient coolant flow across the core, improving heat exchange. The aluminum core measures 16.81 inches in height, 31.89 inches in length, and 2.2 inches in thickness, with a fin count of 43 every 4 inches and a fin wave height of 0.35 inches. The radiator includes a plate-type transmission oil cooler with adapter inlet and outlet connections sized at 5/8-18UNF, supporting transmission fluid cooling without an engine oil cooler. Both inlet and outlet connections use hose clamps with a diameter of 1.77 inches, facilitating secure hose attachment. The radiator’s single-row tube configuration includes 38 tubes and 39 fin rows, designed to optimize airflow and cooling efficiency.

Applications and Problem Solving

• Replaces faulty or leaking radiators in Ford F-150 and F-250 trucks
• Addresses overheating issues caused by inefficient heat dissipation
• Supports transmission cooling to prevent transmission fluid overheating
• Resolves coolant leaks from damaged or corroded radiator cores
• Improves engine temperature regulation under heavy load or towing conditions

Installation Notes and Tips

Ensure compatibility with your specific Ford F-150 or F-250 model year before installation. The radiator uses hose clamp connections for both inlet and outlet hoses, which should be securely fastened to prevent leaks. The transmission oil cooler connections require adapters sized 5/8-18UNF; verify proper fitting during installation. Proper coolant flushing and system bleeding are recommended to maintain optimal cooling system performance after replacement.

Quality Assurance and Warranty

The TYC Radiator 1996 is manufactured to meet OEM standards for fit, form, and function. Constructed with an aluminum core and integrated transmission oil cooler, it is designed for durability and consistent performance. Warranty information is provided by the manufacturer and should be confirmed at the time of purchase to ensure coverage details.
