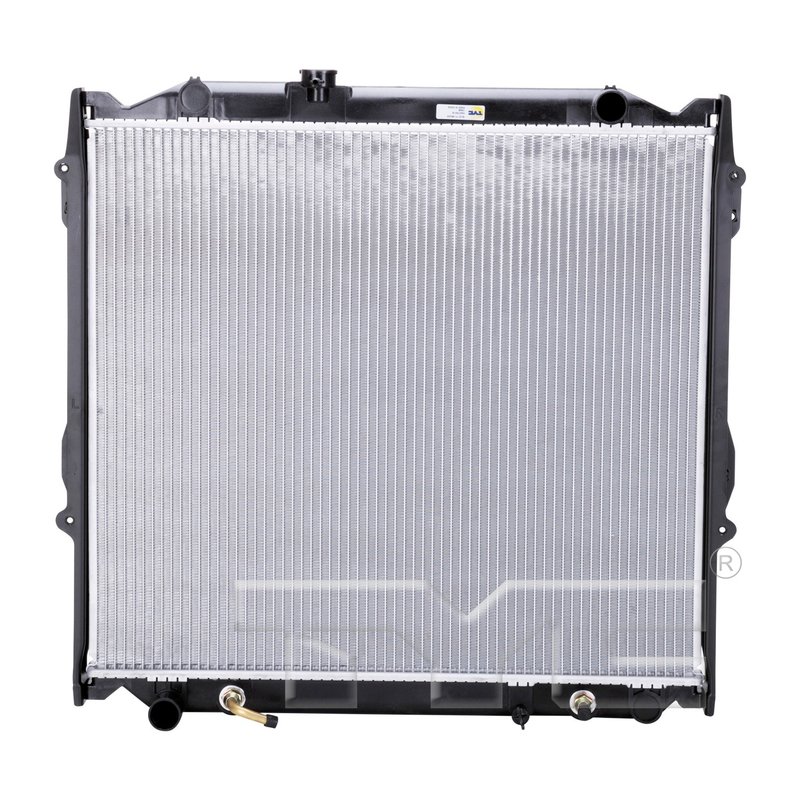

TYC 1998 Radiator
| Brand | TYC 1998 |
|---|---|
| Bottom Header | 2.11x25.91 |
| Core Height (in) | 25.12 |
| Core Length (in) | 22.64 |
| Core Material | Aluminum |
| Core Thickness (in) | 1.02 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 68 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 3 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose Clamp |
| Inlet Diameter (in) | 1.38 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose Clamp |
| Outlet Diameter (in) | 1.38 |
| Toc Distance (in) | 14.76 |
| Toc Inlet Diameter (in) | 0.39 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.39 |
| Toc Outlet Type | Tube fitting |
| Top Header | 2.11x25.91 |
| Total Fin Row Count | 64 |
| Total Tube Count | 63 |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric Oil Cooler |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Toyota · 12 vehicles |
Aluminum core. Helps shed heat efficiently for dependable cooling performance.
Concentric oil cooler. Built in to manage transmission fluid temperature within the radiator.
Downflow design. Promotes steady coolant flow through a single-row core.
Cross-references APDI 8011998, CSF 2607 and DENSO 221-0508 for the same application. See all 10.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Toyota 4Runner
The TYC Radiator Part Number 1998 is a direct-fit cooling system replacement for select 1996-2002 Toyota 4Runner models. Built with an aluminum core and a downflow design, it includes a concentric transmission oil cooler to support automatic transmission fluid temperature control in the same assembly.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow radiator design
- Transmission oil cooler included with concentric oil cooler type
- Hose clamp inlet and outlet connections
- Single-row core layout with 1.02 in. core thickness
- Fits 1996-2002 Toyota 4Runner, N/A
- TYC Radiator Part Number 1998
Product Details
This TYC Radiator is engineered around the listed core dimensions and connection sizes for a precise replacement in Toyota 4Runner cooling systems. The radiator measures 25.12 in. in core height, 22.64 in. in core length, and 1.02 in. in core thickness, with 1.38 in. inlet and outlet diameters. It also includes a transmission oil cooler with 0.39 in. tube-fitting inlet and outlet connections, making it a practical choice for vehicles that route transmission fluid through the radiator assembly. This part cross-references Toyota 16400-75180 for the same application.
Common Cooling Issues This Radiator Addresses
- Leaking radiator tanks or core seams
- Restricted coolant flow from an aging radiator core
- Transmission fluid temperature concerns tied to a worn cooler circuit
- Overheating caused by reduced heat dissipation
- Corrosion or fatigue in the original aluminum radiator assembly
Installation Notes and Tips
Verify the radiator dimensions, inlet and outlet sizes, and transmission cooler connection style before installation. Confirm that the vehicle uses the listed hose clamp upper and lower connections and the concentric transmission oil cooler layout. Flush the cooling system, inspect hoses and clamps, and check the transmission cooler lines for contamination before putting the vehicle back into service. Fits 1996-2002 Toyota 4Runner, N/A.
Quality Assurance
TYC Radiator components are cataloged with OE-style interchange references for application matching. Part Number 1998 also cross-references APDI 8011998 and DENSO 221-0508 for the same vehicle application.
| Year | Make | Model | Submodel | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2002 | Toyota | 4Runner | SR5 | Sport Utility | — | 3.4L | V6 | N/A | TYC Radiator |
| 2001 | Toyota | 4Runner | SR5 | Sport Utility | — | 3.4L | V6 | N/A | TYC Radiator |
| 2000 | Toyota | 4Runner | — | — | Automatic | 3.4L | V6 | N/A | TYC Radiator |
| 2000 | Toyota | 4Runner | — | — | Automatic | 2.7L | L4 | N/A | TYC Radiator |
| 1999 | Toyota | 4Runner | — | — | Automatic | 3.4L | V6 | N/A | TYC Radiator |
| 1999 | Toyota | 4Runner | — | — | Automatic | 2.7L | L4 | N/A | TYC Radiator |
| 1998 | Toyota | 4Runner | — | — | Automatic | 2.7L | L4 | N/A | TYC Radiator |
| 1998 | Toyota | 4Runner | — | — | Automatic | 3.4L | V6 | N/A | TYC Radiator |
| 1997 | Toyota | 4Runner | — | — | Automatic | 2.7L | L4 | N/A | TYC Radiator |
| 1997 | Toyota | 4Runner | — | — | Automatic | 3.4L | V6 | N/A | TYC Radiator |
| 1996 | Toyota | 4Runner | — | — | Automatic | 2.7L | L4 | N/A | TYC Radiator |
| 1996 | Toyota | 4Runner | — | — | Automatic | 3.4L | V6 | N/A | TYC Radiator |
