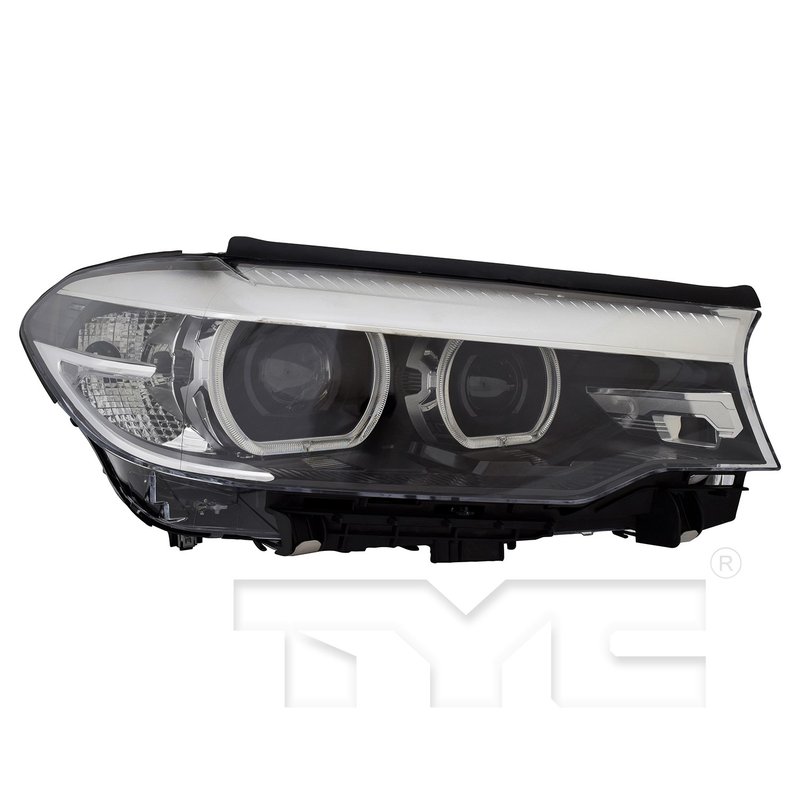

TYC 20-16417-00 Headlight Assembly - Right

Overview of TYC Regular Right Headlight Assembly for BMW

The TYC Regular Right Headlight Assembly (Part Number 20-16417-00) is designed specifically for select BMW models, including the 530e, 530i, 540i, M5, and others. This complete headlight assembly features LED bulbs and clear PC plastic lens for reliable exterior lighting performance.

• Complete headlight assembly with bulbs included
• Clear PC plastic lens and durable PP plastic housing
• LED bulbs for low beam, high beam, daytime running light, cornering lamp, park lamp, and front side marker light
• Halogen PY21W bulb for front signal light
• Right side position, compatible with BMW 530e, 530i, 540i, M5, and related xDrive models
• SAE/DOT compliant for road safety standards

TYC Regular Product Line Details

The TYC Regular product line offers reliable replacement lighting components that meet OEM specifications without additional features such as adaptive front lighting system (AFS) motors. This headlight assembly provides a straightforward, complete lighting solution with included LED bulbs, designed for direct fitment and dependable performance on compatible BMW vehicles.

Detailed Product Description

This right headlight assembly (20-16417-00) is engineered with a clear PC plastic lens and a robust PP plastic housing to withstand environmental exposure. It includes LED bulbs for the low beam, high beam, daytime running light, cornering lamp, park lamp, and front side marker light, ensuring consistent illumination and visibility. The front signal light uses a halogen PY21W bulb, maintaining compatibility with factory electrical systems. The assembly is SAE/DOT compliant and does not include an AFS motor, making it suitable for BMW models without adaptive lighting features.

Common Applications and Issues Addressed

• Replacement for damaged or cracked right headlight lens or housing
• Upgrade from burnt-out or failing bulbs to LED lighting
• Restoration of proper exterior lighting functionality on BMW 530e, 530i, 540i, M5, and xDrive variants
• Correction of moisture intrusion or fogging inside the headlight assembly
• Compliance with safety standards after collision or wear

Installation Notes and Tips

• Compatible with right side of BMW 530e, 530i, 540i, M5, and xDrive models listed
• No installation hardware included; reuse existing mounting components
• Ensure electrical connectors match factory plugs for LED and halogen bulbs
• Check alignment and adjust headlight aim after installation for optimal visibility
• Handle assembly carefully to avoid damage to lens or bulbs during installation

Quality Assurance and Compliance

The TYC Regular Right Headlight Assembly (20-16417-00) is manufactured to meet SAE and DOT compliance standards, ensuring it adheres to safety and performance requirements for exterior vehicle lighting. This assembly includes all necessary LED and halogen bulbs for a complete lighting solution. While installation hardware is not included, the product is designed for direct replacement on compatible BMW models, providing a dependable and compliant lighting upgrade.
