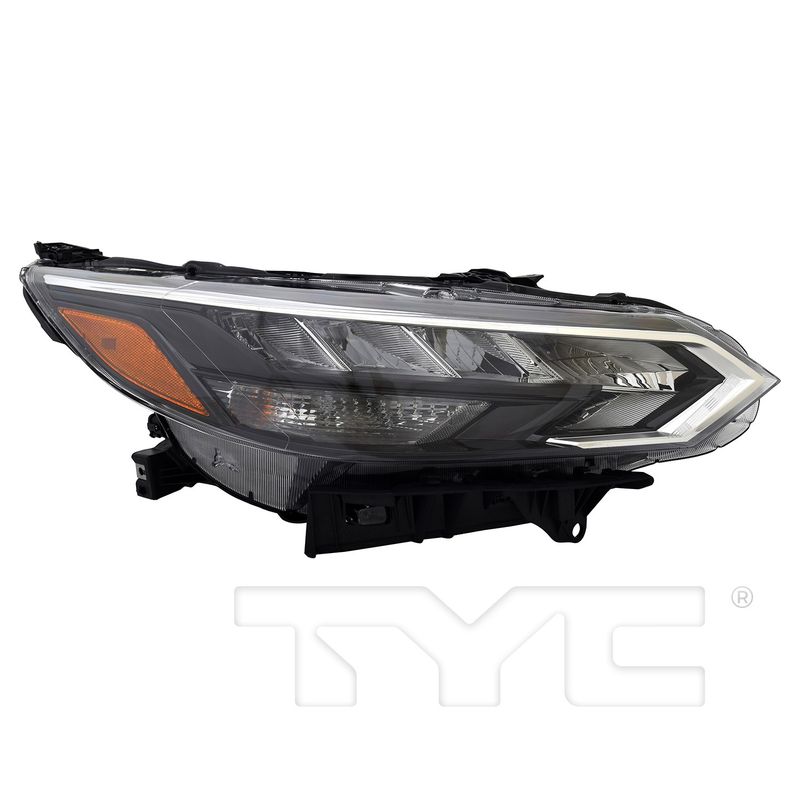

TYC 20-17531-90-9 Headlight Assembly - Right
| Brand | TYC 20-17531-90-9 |
|---|---|
| Position | Right |
| Bulbs Included | Yes |
| Lens Color | Clear |
| Bulb Type | Led |
| Lens Material | Pc plastic |
| Housing Material | Pp plastic |
| Components Included | Complete assembly |
| Daytime Running Light Bulb Included | Yes |
| Daytime Running Light Bulb Type | Led |
| Front Side Marker Light Bulb Included | Yes |
| Front Side Marker Light Bulb Type | Led |
| Front Signal Light Bulb Included | Yes |
| Front Signal Light Bulb Type | Halogen 21w |
| Hardware Included | No |
| Headlight Wiring Harness | Included |
| High Beam Bulb Included | Yes |
| High Beam Bulb Type | Led |
| Led Controller Included | Yes |
| Low Beam Bulb Included | Yes |
| Low Beam Bulb Type | Led |
| Other Side | 20-17532-90-9 |
| Remarks | Sr model |
| Sae/dot Compliant | Yes |
| Product line | CAPA Certified |
| Fits | Nissan · 2 vehicles |
Complete assembly. Includes bulbs, wiring harness, and LED controller for a full replacement.
CAPA Certified. Built to meet recognized certification standards for the listed application.
SAE/DOT compliant. Meets lighting compliance requirements for road use.
Cross-references 26010-6LY5A, 26010-6MW5A and NI2503303 for the same application. See all 3.
Overview
This TYC headlight assembly, part number 20-17531-90-9, is a complete right-side lighting unit for the Nissan Sentra SR with LED-type lighting. It is CAPA Certified and SAE/DOT compliant, making it a direct replacement option for restoring exterior lighting performance and appearance.
Key Features
- Complete headlight assembly with bulbs, wiring harness, and LED controller included
- Clear lens with LED low beam, high beam, and daytime running light functions
- Front signal light uses a halogen 21W bulb
- Lens material is PC plastic with a PP plastic housing
- CAPA Certified and SAE/DOT compliant
Detailed Description
Built for 2024-2025 Nissan Sentra applications on the right side, this TYC headlight assembly is engineered as a complete replacement for the factory lighting unit. The assembly includes the lighting components needed for the headlamp system, along with the headlight wiring harness and LED controller. The clear lens and integrated LED design support a clean factory-style appearance on the Nissan Sentra SR.
Part number 20-17531-90-9 cross-references Monroe Shocks & Struts (e.g., 26010-6LY5A, 26010-6MW5A) for the same application. This part also cross-references NI2503303 for the same application.
Compatible With 2024-2025 Nissan Sentra, right side, LED type, CAPA Certified.
Common Uses
- Replacing a damaged or cracked headlight assembly
- Restoring low beam, high beam, and daytime running light operation
- Correcting lens haze, moisture intrusion, or housing damage
- Returning exterior lighting to proper road-use compliance
Installation Notes
Verify the vehicle is equipped with the SR model and right-side LED headlight configuration before ordering. Hardware is not included. Confirm connector and harness compatibility during installation, and inspect aiming after the assembly is installed.
Quality Assurance
TYC identifies this assembly as CAPA Certified and SAE/DOT compliant for the listed application. Part number 20-17531-90-9 is built to match the specified fitment for 2024-2025 Nissan Sentra models.
| Year | Make | Model | Submodel | Body Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2025 | Nissan | Sentra | SR | Sedan | Right | LED Type; CAPA Certified |
| 2024 | Nissan | Sentra | SR | Sedan | Right | LED Type; CAPA Certified |
