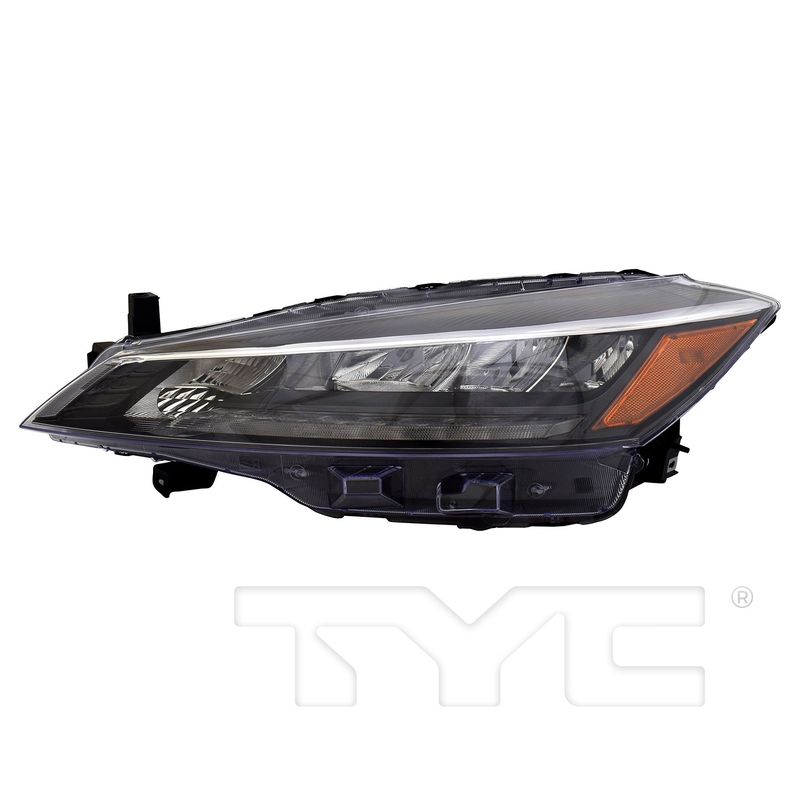

TYC 20-17938-00-9 Headlight Assembly - Left
| Brand | TYC 20-17938-00-9 |
|---|---|
| Position | Left |
| Bulbs Included | Yes |
| Lens Color | Clear |
| Bulb Type | Led |
| Lens Material | Pc plastic |
| Housing Material | Pp plastic |
| Components Included | Complete assembly |
| Daytime Running Light Bulb Included | Yes |
| Daytime Running Light Bulb Type | Led |
| Front Side Marker Light Bulb Included | Yes |
| Front Side Marker Light Bulb Type | Led |
| Front Signal Light Bulb Included | Yes |
| Front Signal Light Bulb Type | Led |
| Hardware Included | No |
| High Beam Bulb Included | Yes |
| High Beam Bulb Type | Led |
| Led Controller Included | 1 external |
| Low Beam Bulb Included | Yes |
| Low Beam Bulb Type | Led |
| Other Side | 20-17937-00-9 |
| Park Lamp Bulb Included | Yes |
| Park Lamp Bulb Type | Led |
| Remarks | Sr model |
| Sae/dot Compliant | Yes |
| Product line | CAPA Certified |
| Fits | Nissan · 4 vehicles |
CAPA Certified. Verified replacement standard for consistent fit and construction.
Complete assembly. Includes lens, housing, and integrated LED lighting components.
SAE/DOT compliant. Built to meet exterior lighting compliance requirements.
Cross-references 26060-5R05A and NI2502292 for the same application. See all 2.
CAPA Certified LED Headlight
This TYC headlight assembly is a complete left-side replacement built for the Nissan Kicks SR model. It uses LED bulbs throughout and includes the lens, housing, and lighting components needed for a direct exterior lighting replacement.
Fits 2021-2024 Nissan Kicks, left.
Key Features
- CAPA Certified replacement headlight assembly
- Complete assembly with clear lens and plastic housing
- LED bulb design for low beam, high beam, park lamp, signal, marker, and daytime running light functions
- SAE/DOT compliant exterior lighting construction
- Part number 20-17938-00-9 for accurate ordering and identification
Detailed Description
TYC part number 20-17938-00-9 is a left headlight assembly for the Nissan Kicks SR model. It is built as a complete unit with a clear polycarbonate lens and polypropylene housing, and it comes configured with LED lighting elements for the main beam, signal, marker, park lamp, and daytime running light functions. The CAPA Certified designation adds a documented fit and construction standard for buyers seeking a replacement exterior lamp with verified application coverage. This part cross-references Nissan OE number 26060-5R05A and aftermarket reference NI2502292 for the same application.
Common Replacement Uses
- Cracked or damaged headlight lens
- Dim or failed LED lighting functions
- Moisture intrusion in the headlamp housing
- Restoring exterior lighting after collision repair
- Replacing a worn left headlight assembly on a Nissan Kicks
Installation Notes
Verify the vehicle is equipped with the SR model and left-side headlamp application before ordering. This assembly is supplied without hardware, so reuse or source any required mounting components separately. Confirm connector and lighting configuration match the original unit prior to installation.
Quality Assurance
This TYC headlight assembly is CAPA Certified and SAE/DOT compliant, supporting consistent fit and regulatory compliance for the listed application. Part number 20-17938-00-9 should be matched to the original lamp reference during replacement.
| Year | Make | Model | Submodel | Body Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2024 | Nissan | Kicks | SR | Sport Utility | Left | LED Type; CAPA Certified |
| 2023 | Nissan | Kicks | SR | Sport Utility | Left | LED Type; CAPA Certified |
| 2022 | Nissan | Kicks | SR | Sport Utility | Left | LED Type; CAPA Certified |
| 2021 | Nissan | Kicks | SR | Sport Utility | Left | LED Type; CAPA Certified |
