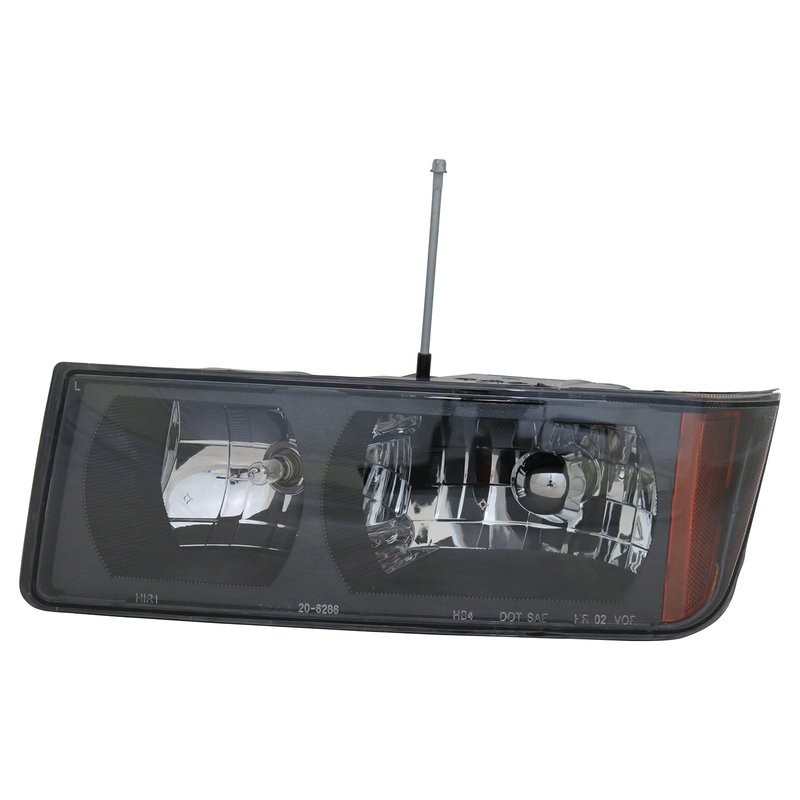

TYC 20-6286-00-9 Headlight Assembly - Left

Headlight Assembly for Avalanche Left Side

This TYC CAPA Certified headlight assembly is built for the left side of select Chevrolet Avalanche 1500 and Avalanche 2500 models. It includes halogen bulbs and is made with a plastic lens and plastic housing for a direct exterior lighting replacement.

Key Features

• TYC CAPA Certified headlight assembly
• Fits 2002-2006 Chevrolet Avalanche 1500, left
• Fits 2002-2006 Chevrolet Avalanche 2500, left
• Halogen bulb type with bulbs included
• High beam bulb included; high beam bulb type: halogen
• Low beam bulb included; low beam bulb type: HB4/9011
• Plastic lens and plastic housing
• SAE/DOT compliant
• Remarks: w/ body cladding

Product Details

The TYC 20-6286-00-9 headlight assembly is a CAPA Certified replacement for the left front lighting position on Chevrolet Avalanche trucks. It is listed for 2002-2006 Chevrolet Avalanche 1500 and 2002-2006 Chevrolet Avalanche 2500 applications, with body cladding noted in the fitment remarks. This part cross-references Chevrolet 15136536 and Partslink GM2502219 for the same application.

As a halogen headlamp assembly, this unit includes both high and low beam bulbs to support a complete lighting replacement. The plastic lens and housing are suited for exterior use, and SAE/DOT compliance supports road-use requirements. If you are replacing a damaged or cloudy Avalanche headlight, TYC 20-6286-00-9 provides the correct left-side configuration for these model years.

Common Issues This Part Can Address

• Cracked or broken left headlight housing
• Clouded or yellowed lens affecting light output
• Failed halogen bulb in the headlamp assembly
• Water intrusion from a damaged front lighting unit
• Restoring proper front-end lighting on a Chevrolet Avalanche

Installation Notes

Verify the vehicle is a 2002-2006 Chevrolet Avalanche 1500 or Avalanche 2500 with the left-side headlight configuration and body cladding noted in the fitment. Compare the existing connector, bulb type, and mounting points before installation. Confirm aim after installation so the headlight beam pattern is properly aligned.

Quality Assurance

TYC CAPA Certified parts are built to meet recognized fitment and compliance standards for replacement lighting. This headlight assembly is SAE/DOT compliant and is identified with part number 20-6286-00-9 for accurate ordering and application matching.
