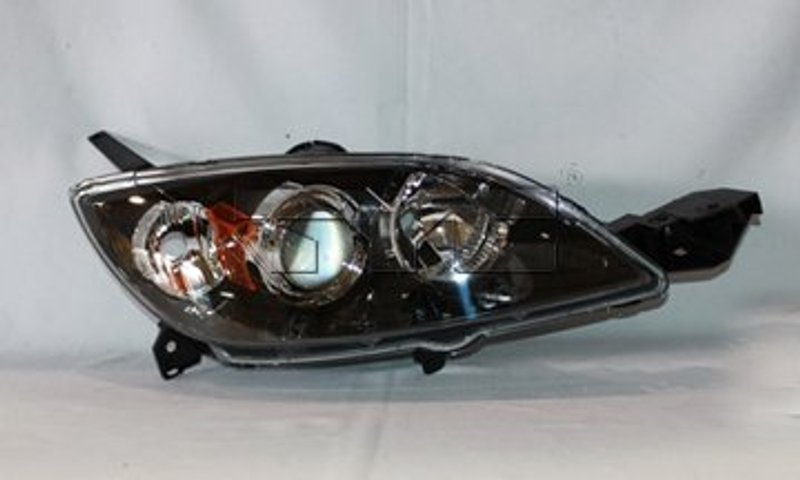

TYC 20-6697-01 Headlight Assembly - Right
OE Quality 60-Day Returns
TYC
 TYC Regular

TYC 20-6697-01 Headlight Assembly - Right

Brand TYC 20-6697-01
Position Right
Bulb Type Halogen
Bulbs Included No
Components Included Lens and Housing
High Beam Bulb Included No
High Beam Bulb Type Halogen
Housing Material Plastic
Lens Material Plastic
Low Beam Bulb Included No
Low Beam Bulb Type Halogen
Other Side 20-6698-01
Product line TYC Regular
Fits Mazda · 6 vehicles

Halogen lighting. Uses halogen bulbs for familiar exterior illumination.

Plastic lens and housing. Lightweight construction with both major components included.

TYC Regular line. A straightforward replacement part from TYC.

Cross-references Mazda BN8F-51-0K0E and Partslink MA2519107 for the same application. See all 2.

$109.30Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $109.30
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Headlight Assembly options

Right Headlight Assembly for Mazda 3

This TYC Regular headlight assembly is a direct-fit exterior lighting replacement for the right side of select Mazda 3 models. It uses a halogen bulb setup and includes the lens and housing for a complete front-end lighting repair.

Key Features

  • TYC Regular headlight assembly for the right side
  • Fits 2004-2009 Mazda 3, right
  • Halogen bulb type for low beam and high beam applications
  • Lens material: plastic
  • Housing material: plastic
  • Components included: lens and housing
  • Bulbs not included
  • Other side reference: 20-6698-01

Product Details

Built for 2004-2009 Mazda 3 vehicles with halogen lighting, this TYC Regular headlight assembly restores the right-side exterior lamp housing when the original unit is cracked, clouded, or no longer sealing properly. The plastic lens and plastic housing provide a service replacement solution for the front lighting system, and the assembly is listed with Mazda OE reference BN8F-51-0K0E and Partslink MA2519107. This part number, 20-6697-01, is the right-side counterpart to 20-6698-01 on the opposite side.

TYC Regular is the brand line for standard replacement lighting components, focused on OE-style fitment and straightforward service replacement for common repair needs. For Mazda 3 owners searching for a right headlight assembly for 2004-2009 Mazda 3 halogen models, 20-6697-01 provides the correct lens-and-housing configuration for that application.

Common Repair Uses

  • Cracked or broken right headlight housing
  • Clouded or damaged front lens
  • Water intrusion from a failed lamp assembly
  • Restoring proper front lighting after collision damage
  • Replacing a worn halogen headlamp unit on a Mazda 3

Installation Notes

Verify halogen bulb configuration before installation. Bulbs are not included, so transfer or source the correct halogen bulbs separately. Confirm right-side placement and match the vehicle to the listed fitment before final assembly. Check alignment and aim after installation to ensure proper road illumination.

Quality Assurance

This TYC Regular headlight assembly is built as a replacement lighting component for the listed Mazda 3 applications and cross-references Mazda BN8F-51-0K0E and Partslink MA2519107 for the same application.

Related reading

This part fits 6 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelBody TypePositionNotes
2009Mazda3HatchbackRightBulb Type: Halogen; Components Included: Lens & Housing; Other Side: 20-6698-01; TYC Regular
2008Mazda3HatchbackRightBulb Type: Halogen; Components Included: Lens & Housing; Other Side: 20-6698-01; TYC Regular
2007Mazda3HatchbackRightBulb Type: Halogen; Components Included: Lens & Housing; Other Side: 20-6698-01; TYC Regular
2006Mazda3HatchbackRightBulb Type: Halogen; Components Included: Lens & Housing; Other Side: 20-6698-01; TYC Regular
2005Mazda3HatchbackRightBulb Type: Halogen; Components Included: Lens & Housing; Other Side: 20-6698-01; TYC Regular
2004Mazda3HatchbackRightBulb Type: Halogen; Components Included: Lens & Housing; Other Side: 20-6698-01; TYC Regular
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Mazda — BN8F-51-0K0EPartslink — MA2519107
