Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

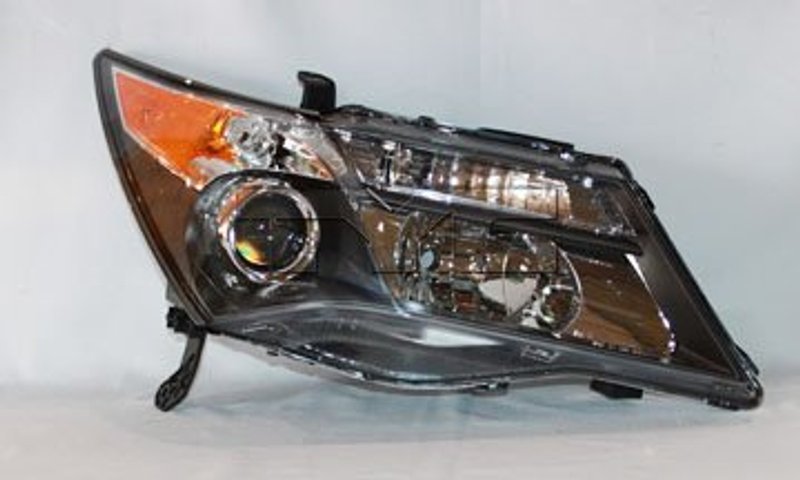

TYC 20-6845-01 Headlight Assembly - Right
| Brand | TYC 20-6845-01 |
|---|---|
| Position | Right |
| Bulb Type | HID |
| Bulbs Included | No |
| Components Included | Lens and Housing |
| Front Side Marker Light Bulb Included | YES |
| Front Side Marker Light Bulb Type | Halogen |
| Front Signal Light Bulb Included | YES |
| Front Signal Light Bulb Type | Halogen |
| Hid Ballast Included | NO |
| High Beam Bulb Included | NO |
| High Beam Bulb Type | Halogen HB3 |
| Housing Material | Plastic |
| Lens Material | Plastic |
| Low Beam Bulb Included | NO |
| Low Beam Bulb Type | HID D2S |
| Other Side | 20-6846-01 |
| Park Lamp Bulb Included | YES |
| Park Lamp Bulb Type | Halogen |
| Remarks | Includes Adjuster |
| Sae/dot Compliant | Yes |
| Product line | TYC Regular |
| Fits | Acura · 3 vehicles |
HID bulb type. Uses HID D2S low beams for focused, efficient lighting.
Lens and housing. Plastic construction keeps the assembly lightweight.
SAE/DOT compliant. Meets recognized lighting standards for road use.
Cross-references Acura 33101-STX-A02 and Partslink AC2519110 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Acura MDX Right Headlight Assembly
This TYC headlight assembly is a direct replacement for the right side of the 2007-2009 Acura MDX Sport Model. Built with a plastic lens and plastic housing, it restores exterior lighting function with the correct HID bulb type layout and integrated marker, signal, and park lamp bulb provisions.
TYC Regular parts are positioned as OE-style replacement lighting components for drivers who need a practical repair for a damaged, cloudy, or non-functioning headlamp. Part number 20-6845-01 is made for the right front corner of the Acura MDX and includes the lens and housing with adjuster.
Key Features
- Fits 2007-2009 Acura MDX, right front
- TYC Regular replacement headlight assembly, part number 20-6845-01
- Lens and housing included
- Plastic lens and plastic housing construction
- HID bulb type with low beam bulb type listed as HID D2S
- High beam bulb type listed as Halogen HB3
- Front side marker, front signal, and park lamp bulb provisions included
- Includes adjuster
- SAE/DOT compliant
Detailed Description
Compatible with 2007-2009 Acura MDX Sport Model applications, this right headlight assembly is built to match the original lighting layout for the vehicle’s front passenger side. The unit uses a plastic lens and housing and is configured for HID low beam operation, with separate halogen bulb types specified for the high beam, side marker, signal, and park lamp functions. Part number 20-6845-01 also cross-references Acura 33101-STX-A02 and Partslink AC2519110 for the same application.
TYC Regular 20-6845-01 is a practical replacement when the original headlamp is cracked, faded, or no longer operating correctly. The assembly includes the adjuster and is SAE/DOT compliant for road use. The matching left side reference is 20-6846-01.
Common Repair Uses
- Restores lighting after a broken or damaged right headlight assembly
- Replaces a cloudy or worn lens on a 2007-2009 Acura MDX
- Addresses low beam or high beam lighting issues tied to the headlamp assembly
- Replaces a failed front marker, signal, or park lamp housing on the right side
- Supports repair after front-end cosmetic or collision damage
Installation Notes and Tips
Verify the vehicle is a 2007-2009 Acura MDX Sport Model before ordering. This assembly is for the right side and uses HID low beam bulb type D2S with halogen HB3 high beam bulb type specification. Bulbs are not included, and the HID ballast is not included. Confirm all bulb and connector requirements against the original unit before installation, and use the included adjuster to set headlamp aim after mounting.
Quality Assurance
This TYC Regular headlight assembly is SAE/DOT compliant and built as an OE-style replacement for the Acura MDX lighting application. Part number 20-6845-01 is specified for consistent fitment on the right front side of the 2007-2009 Acura MDX Sport Model.
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 2009 | Acura | MDX | Sport Utility | Right | Sport Model; Components Included: Lens & Housing; Remarks: Includes Adjuster; Other Side: 20-6846-01; TYC Regular |
| 2008 | Acura | MDX | Sport Utility | Right | Sport Model; Components Included: Lens & Housing; Remarks: Includes Adjuster; Other Side: 20-6846-01; TYC Regular |
| 2007 | Acura | MDX | Sport Utility | Right | Sport Model; Components Included: Lens & Housing; Remarks: Includes Adjuster; Other Side: 20-6846-01; TYC Regular |
