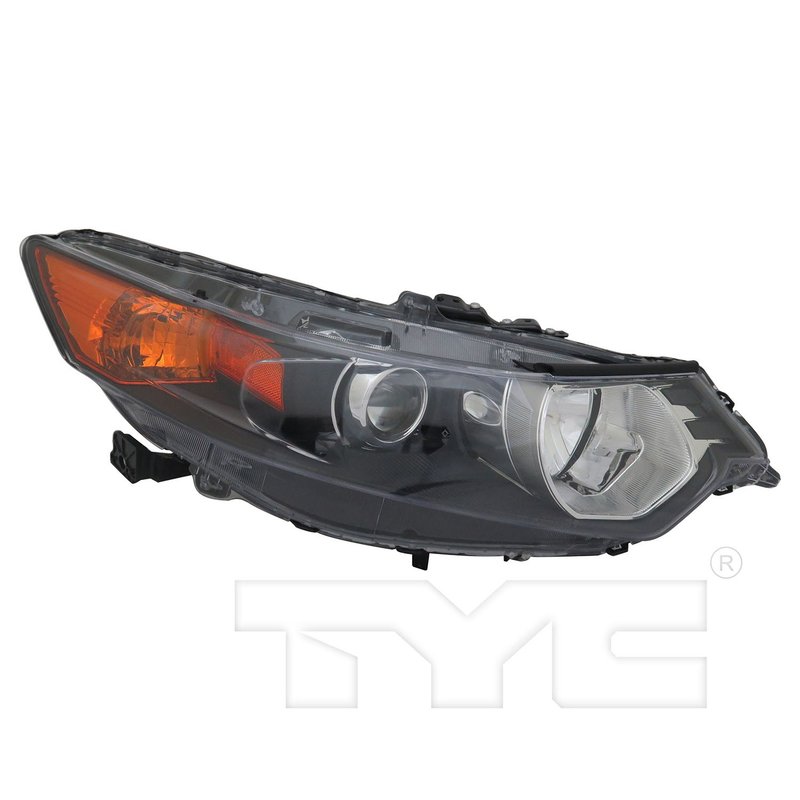

TYC 20-9069-01-9 Headlight Assembly - Right
OE Quality 60-Day Returns
TYC
 CAPA Certified

TYC 20-9069-01-9 Headlight Assembly - Right

Brand TYC 20-9069-01-9
Position Right
Bulb Type HID
Bulbs Included No
Components Included Lens and Housing
Daytime Running Light Bulb Type Same as High Beam
Front Side Marker Light Bulb Included Included
Front Side Marker Light Bulb Type same as park lamp
Front Signal Light Bulb Included Included
Front Signal Light Bulb Type same as park lamp
Hid Ballast Included NO
High Beam Bulb Included YES
High Beam Bulb Type Halogen HB3
Housing Material Plastic
Lens Material Plastic
Low Beam Bulb Included NO
Low Beam Bulb Type HID D2S
Other Side 20-9070-01-9
Park Lamp Bulb Included Included
Park Lamp Bulb Type Halogen
Sae/dot Compliant Yes
Product line CAPA Certified
Fits Acura · 18 vehicles

CAPA Certified. Meets recognized quality and compliance standards.

Plastic lens and housing. Lightweight construction with included lens and housing.

HID headlight assembly. Uses HID low beam and halogen high beam bulbs.

Cross-references Acura 33101-TL0-A02 and Partslink AC2503118 for the same application. See all 2.

$298.80Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $298.80
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Headlight Assembly options

Acura TSX Right Headlight Assembly

This TYC CAPA Certified headlight assembly is built for the right side of the 2009-2014 Acura TSX. It combines the lens and housing in a direct replacement format and uses HID low beam lighting with halogen high beam output.

Key Features

  • Fits 2009-2014 Acura TSX, right
  • TYC CAPA Certified replacement headlight assembly
  • Lens and housing included
  • HID bulb type for low beam function
  • High beam bulb type: Halogen HB3
  • Park lamp, front signal, and front side marker bulbs included
  • SAE/DOT compliant
  • Plastic lens and plastic housing construction

Product Details

TYC part number 20-9069-01-9 is a right headlight assembly for the Acura TSX that follows the original lighting layout for this application. The unit uses HID D2S low beam technology, while the high beam uses a Halogen HB3 bulb. The daytime running light uses the same bulb type as the high beam, and the park lamp, front signal light, and front side marker light bulbs are included. This part cross-references Acura 33101-TL0-A02 and Partslink AC2503118 for the same application. For shoppers searching for a 2009-2014 Acura TSX right headlight assembly or TYC 20-9069-01-9, this replacement matches the listed vehicle position and lighting configuration.

Common Replacement Reasons

  • Cracked or clouded headlight lens
  • Water intrusion in the headlamp housing
  • Dim or non-functioning low beam output
  • Broken mounting points or damaged housing
  • Failed park lamp, signal, or side marker lighting

Installation Notes

Confirm right-side placement before installation and verify bulb compatibility for HID D2S low beam and Halogen HB3 high beam use. This assembly does not include HID ballast. Transfer or connect the required lighting components according to the vehicle’s original setup and check aim after installation. For best results, compare the existing unit to TYC 20-9069-01-9 before final mounting on the Acura TSX.

Quality Assurance

TYC CAPA Certified lighting parts are built to meet recognized fit and compliance standards for this application. This headlight assembly is SAE/DOT compliant and is intended to support a proper OE-style replacement for the Acura TSX.

Related reading

This part fits 18 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelBody TypePositionNotes
2014AcuraTSXV6SedanRightOther Side: 20-9070-01-9; CAPA Certified
2014AcuraTSXBaseSedanRightOther Side: 20-9070-01-9; CAPA Certified
2014AcuraTSXSpecial EditionSedanRightOther Side: 20-9070-01-9; CAPA Certified
2014AcuraTSX—WagonRightOther Side: 20-9070-01-9; CAPA Certified
2013AcuraTSXBaseSedanRightOther Side: 20-9070-01-9; CAPA Certified
2013AcuraTSX—WagonRightOther Side: 20-9070-01-9; CAPA Certified
2013AcuraTSXSpecial EditionSedanRightOther Side: 20-9070-01-9; CAPA Certified
2013AcuraTSXV6SedanRightOther Side: 20-9070-01-9; CAPA Certified
2012AcuraTSXBaseSedanRightOther Side: 20-9070-01-9; CAPA Certified
2012AcuraTSX—WagonRightOther Side: 20-9070-01-9; CAPA Certified
2012AcuraTSXSpecial EditionSedanRightOther Side: 20-9070-01-9; CAPA Certified
2012AcuraTSXV6SedanRightOther Side: 20-9070-01-9; CAPA Certified
2011AcuraTSXV6SedanRightOther Side: 20-9070-01-9; CAPA Certified
2011AcuraTSXBaseSedanRightOther Side: 20-9070-01-9; CAPA Certified
2011AcuraTSX—WagonRightOther Side: 20-9070-01-9; CAPA Certified
2010AcuraTSXV6SedanRightOther Side: 20-9070-01-9; CAPA Certified
2010AcuraTSXBaseSedanRightOther Side: 20-9070-01-9; CAPA Certified
2009AcuraTSXBaseSedanRightOther Side: 20-9070-01-9; CAPA Certified
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Acura — 33101-TL0-A02Partslink — AC2503118
