Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

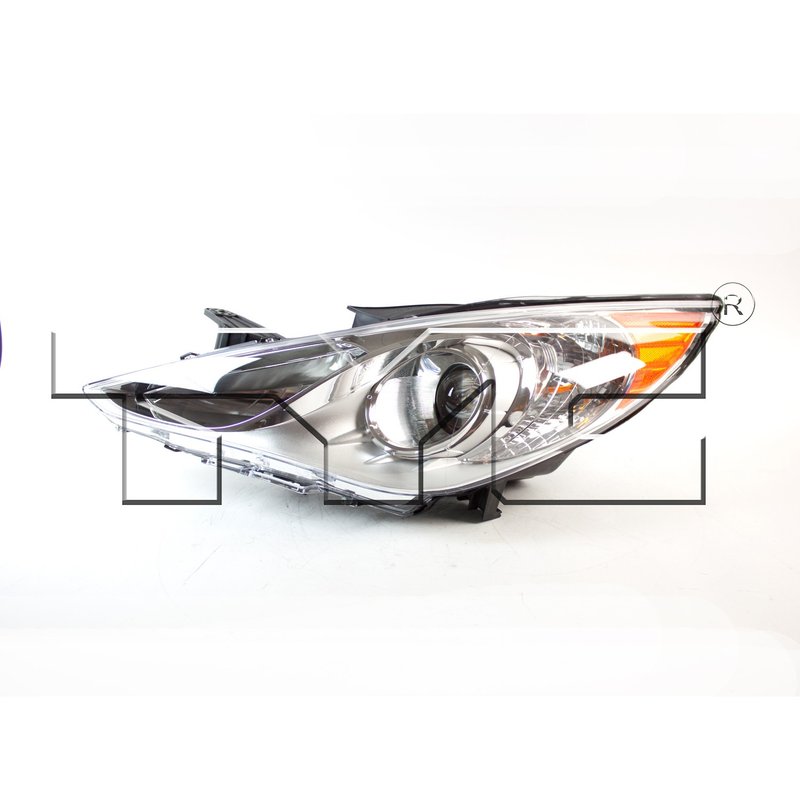

TYC 20-9150-00-9 Headlight Assembly - Left
| Brand | TYC 20-9150-00-9 |
|---|---|
| Position | Left |
| Bulb Type | Halogen |
| Bulbs Included | Yes |
| Components Included | Complete Assembly |
| Front Signal Light Bulb Included | YES |
| Front Signal Light Bulb Type | Halogen |
| High Beam Bulb Included | YES |
| High Beam Bulb Type | Halogen H7 |
| Housing Material | Plastic |
| Lens Color | Clear, Amber |
| Lens Material | Plastic |
| Low Beam Bulb Included | YES |
| Low Beam Bulb Type | Halogen H7 |
| Other Side | 20-9149-00-9 |
| Product Color | White Bezel |
| Remarks | Type 1 |
| Sae/dot Compliant | Yes |
| Product line | CAPA Certified |
| Fits | Hyundai · 4 vehicles |
CAPA Certified. Meets recognized quality standards for dependable exterior lighting.
Complete assembly. Includes bulbs and components for a ready-to-install replacement.
Halogen design. Uses clear, amber lenses with plastic lens and housing materials.
Cross-references Hyundai 92101-3Q000 and Partslink HY2502159 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Hyundai Sonata Left Headlight Assembly
This TYC CAPA Certified headlight assembly is a direct-fit exterior lighting replacement for the left side of the 2011-2014 Hyundai Sonata. It includes the bulbs and arrives as a complete assembly with a clear and amber lens, white bezel, and halogen lighting components.
Key Features
- Fits 2011-2014 Hyundai Sonata, left
- TYC CAPA Certified replacement headlight assembly
- Complete assembly with bulbs included
- Halogen bulb type with H7 high beam and low beam bulbs
- Clear and amber lens with plastic lens and housing
- Front signal light bulb included
- SAE/DOT compliant
- Cross-reference: Hyundai 92101-3Q000; Partslink HY2502159
Product Details
Built for the left side of the Hyundai Sonata, part number 20-9150-00-9 is a CAPA Certified headlight assembly that follows the Type 1 application noted for 2011-2014 models. The unit uses a plastic lens and plastic housing, with a white bezel finish and clear/amber lens color for a factory-style appearance. High beam and low beam bulbs are both included and specified as halogen H7, along with the front signal light bulb.
TYC’s CAPA Certified product line is aimed at replacement lighting that meets recognized certification standards for fit and construction. This headlight assembly is SAE/DOT compliant and is listed for the left position on the Hyundai Sonata, making it a focused replacement for drivers searching for a 2011-2014 Hyundai Sonata left headlight assembly, a halogen headlamp for Hyundai Sonata, or TYC 20-9150-00-9.
Common Issues This Part Can Address
- Cracked or clouded left headlight lens
- Dim or failed halogen headlight output
- Broken housing from front-end damage
- Water intrusion into the headlamp assembly
- Mismatch after replacing only one side of the lighting system
Installation Notes
Verify the vehicle is a 2011-2014 Hyundai Sonata with the Type 1 halogen headlight application before ordering. This assembly is for the left side only, and the opposite side is 20-9149-00-9. Confirm bulb and connector compatibility during installation, and aim the headlight after replacement to maintain proper road illumination.
Quality Assurance
This TYC headlight assembly is CAPA Certified and SAE/DOT compliant, supporting consistent replacement quality for the Hyundai Sonata application. Part number 20-9150-00-9 also cross-references Hyundai 92101-3Q000 and Partslink HY2502159 for the same application.
| Year | Make | Model | Submodel | Body Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2014 | Hyundai | Sonata | GLS | Sedan | Left | Type 1; Halogen Type; Other Side: 20-9149-00-9; CAPA Certified |
| 2013 | Hyundai | Sonata | GLS | Sedan | Left | Type 1; Halogen Type; Other Side: 20-9149-00-9; CAPA Certified |
| 2012 | Hyundai | Sonata | GLS | Sedan | Left | Type 1; Halogen Type; Other Side: 20-9149-00-9; CAPA Certified |
| 2011 | Hyundai | Sonata | GLS | Sedan | Left | Type 1; Halogen Type; Other Side: 20-9149-00-9; CAPA Certified |
| No rows match your filter. | ||||||
