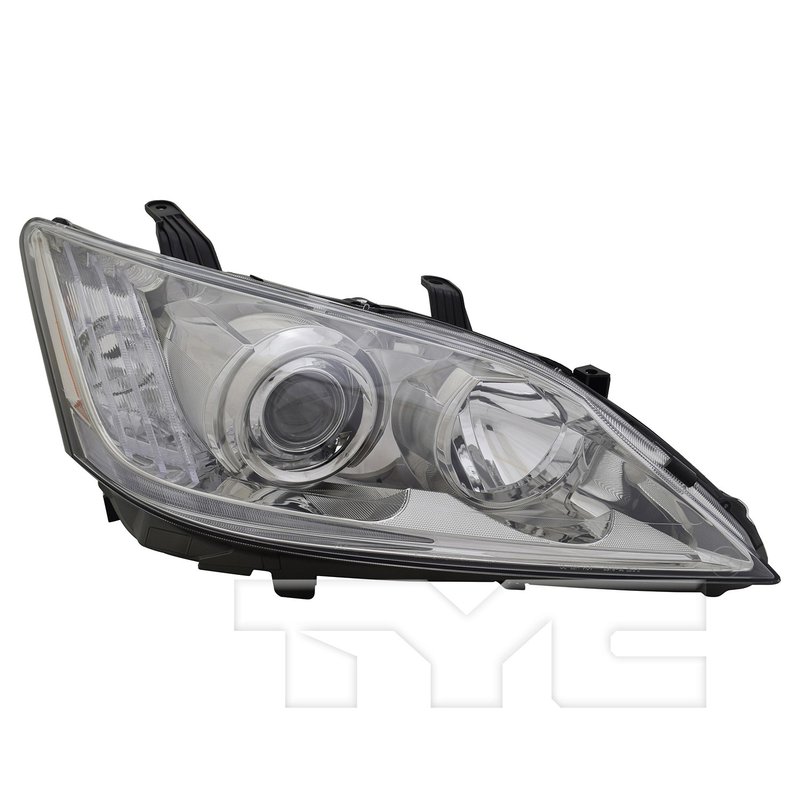

TYC 20-9163-01-9 Headlight Assembly - Right

Overview of TYC CAPA Certified Headlight Assembly for Lexus ES350

The TYC CAPA Certified Headlight Assembly 20-9163-01-9 is designed specifically for the right side of the Lexus ES350. This headlight assembly features a clear and amber lens made from durable PC plastic, ensuring reliable exterior lighting performance without bulbs included.

• Right side headlight assembly compatible with Lexus ES350
• Clear and amber lens color for optimal visibility
• Durable PC plastic lens and PP-TA20 plastic housing
• Includes lens and housing components; bulbs and hardware not included
• Compatible with HID D4S low beam and halogen HB3 high beam bulbs
• Park lamp bulb included (LED type)
• Meets SAE/DOT compliance standards

Detailed Product Description

This TYC headlight assembly (part number 20-9163-01-9) is engineered for the Lexus ES350, providing a precise fit and reliable lighting performance. The assembly features a clear and amber lens constructed from impact-resistant PC plastic, paired with a PP-TA20 plastic housing for durability and weather resistance. It supports HID D4S low beam bulbs and halogen HB3 high beam bulbs, although bulbs and hardware are not included with the assembly. The park lamp bulb is included and uses LED technology for efficient illumination. This assembly also accommodates halogen W5W front side marker light bulbs and halogen WY21W front signal light bulbs, which are not included. The product is SAE/DOT compliant, ensuring it meets safety and regulatory standards for exterior vehicle lighting.

About the CAPA Certified Product Line

The CAPA Certified line from TYC represents parts that meet the Certified Automotive Parts Association standards for quality and fitment. This certification ensures that the headlight assembly 20-9163-01-9 for the Lexus ES350 adheres to strict guidelines for performance and durability, providing a reliable replacement option that aligns with original equipment specifications.

Common Applications and Issues Addressed

• Replacement of damaged or cracked right side headlight lens and housing
• Restoring proper exterior lighting functionality on Lexus ES350
• Upgrading to a CAPA Certified assembly for improved fit and compliance
• Resolving issues with foggy or discolored headlight lenses
• Ensuring compatibility with HID and halogen bulb types specified for the vehicle

Installation Notes and Tips

• Bulbs and mounting hardware are not included; reuse existing components or purchase separately
• Ensure proper alignment of the assembly during installation to maintain beam pattern and visibility
• Handle the PC plastic lens carefully to avoid scratches or damage
• Verify compatibility with the left side assembly part number 20-9164-01-9 for full headlight replacement

Quality Assurance and Warranty

TYC CAPA Certified headlight assemblies are manufactured to meet industry standards for fit, finish, and performance. This part is SAE/DOT compliant, ensuring it meets federal safety requirements. While specific warranty details are not provided here, TYC products typically come with a limited warranty against defects in materials and workmanship.
