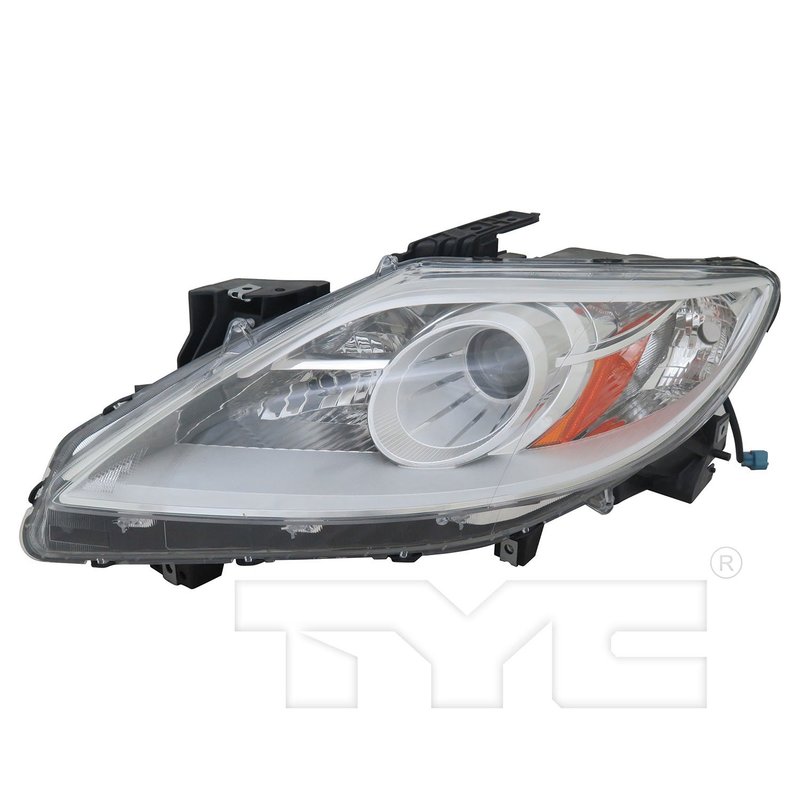

TYC 20-9234-01-9 Headlight Assembly - Left
OE Quality 60-Day Returns
TYC
 CAPA Certified

TYC 20-9234-01-9 Headlight Assembly - Left

Brand TYC 20-9234-01-9
Position Left
Bulb Type Halogen
Bulbs Included No
Front Side Marker Light Bulb Included Included
Front Side Marker Light Bulb Type Halogen
Front Signal Light Bulb Included Included
Front Signal Light Bulb Type Halogen
High Beam Bulb Included YES
High Beam Bulb Type Halogen
Housing Material Plastic
Lens Material Plastic
Low Beam Bulb Included YES
Low Beam Bulb Type H11/HB3
Other Side 20-9233-01-9
Park Lamp Bulb Included Included
Park Lamp Bulb Type Halogen
Product line CAPA Certified
Fits Mazda · 6 vehicles

CAPA Certified. Meets a recognized certification standard for dependable replacement quality.

Halogen lighting. Uses halogen bulbs for familiar, reliable exterior illumination.

Plastic lens and housing. Lightweight construction with a durable, practical finish.

Cross-references Mazda TE69-51-0L0C and Partslink MA2518145 for the same application. See all 2.

$268.37Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $268.37
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Headlight Assembly options

CAPA Certified Headlight Assembly for Mazda CX-9

This TYC headlight assembly is a CAPA Certified replacement for the left side of the 2010-2012 Mazda CX-9. Built with a plastic lens and plastic housing, it is configured for halogen lighting and includes the front side marker, front signal, park lamp, high beam, and low beam bulb positions as specified.

Part number 20-9234-01-9 is a direct-fit exterior lighting replacement for drivers restoring front-end visibility and factory-style lighting function on a Mazda CX-9. It cross-references Mazda TE69-51-0L0C and Partslink MA2518145 for the same application.

Key Features

  • TYC CAPA Certified headlight assembly
  • Fits 2010-2012 Mazda CX-9, left
  • Halogen bulb type with H11/HB3 low beam specification
  • Plastic lens and plastic housing construction
  • Front side marker light bulb included
  • Front signal light bulb included
  • Park lamp bulb included
  • High beam bulb included
  • Low beam bulb included
  • Other side: 20-9233-01-9

Product Details

TYC part number 20-9234-01-9 is a left headlight assembly for the Mazda CX-9 from 2010 through 2012. It is built for halogen lighting systems and includes the specified bulb positions for the front side marker, front signal, park lamp, high beam, and low beam functions. The CAPA Certified designation identifies this unit as a certified replacement option for the listed application, making it a practical choice when replacing a damaged or worn headlamp on a Mazda CX-9.

What This Headlight Assembly Helps Address

  • Cracked or broken left headlight housing
  • Clouded or damaged lens affecting forward lighting output
  • Failed front signal, side marker, or park lamp function in the headlamp assembly
  • Restoration after collision or front-end body repair
  • Replacement of a worn halogen headlight on a Mazda CX-9

Installation Notes and Tips

Verify the vehicle is a 2010-2012 Mazda CX-9 with left-side headlight application before ordering. Confirm the bulb type and connector layout match the existing halogen setup, including the H11/HB3 low beam specification. Compare the assembly to the opposite side, part number 20-9233-01-9, to confirm shape and mounting points before installation.

Quality Assurance

TYC CAPA Certified lighting parts are built to meet certified replacement standards for the listed application. This part number 20-9234-01-9 is identified for the left side of the Mazda CX-9 and cross-references OE and aftermarket numbers for application matching.

Related reading

This part fits 6 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelPositionNotes
2012MazdaCX-9SportLeftOther Side: 20-9233-01-9; CAPA Certified
2012MazdaCX-9TouringLeftOther Side: 20-9233-01-9; CAPA Certified
2011MazdaCX-9TouringLeftOther Side: 20-9233-01-9; CAPA Certified
2011MazdaCX-9SportLeftOther Side: 20-9233-01-9; CAPA Certified
2010MazdaCX-9SportLeftOther Side: 20-9233-01-9; CAPA Certified
2010MazdaCX-9TouringLeftOther Side: 20-9233-01-9; CAPA Certified
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Mazda — TE69-51-0L0CPartslink — MA2518145
