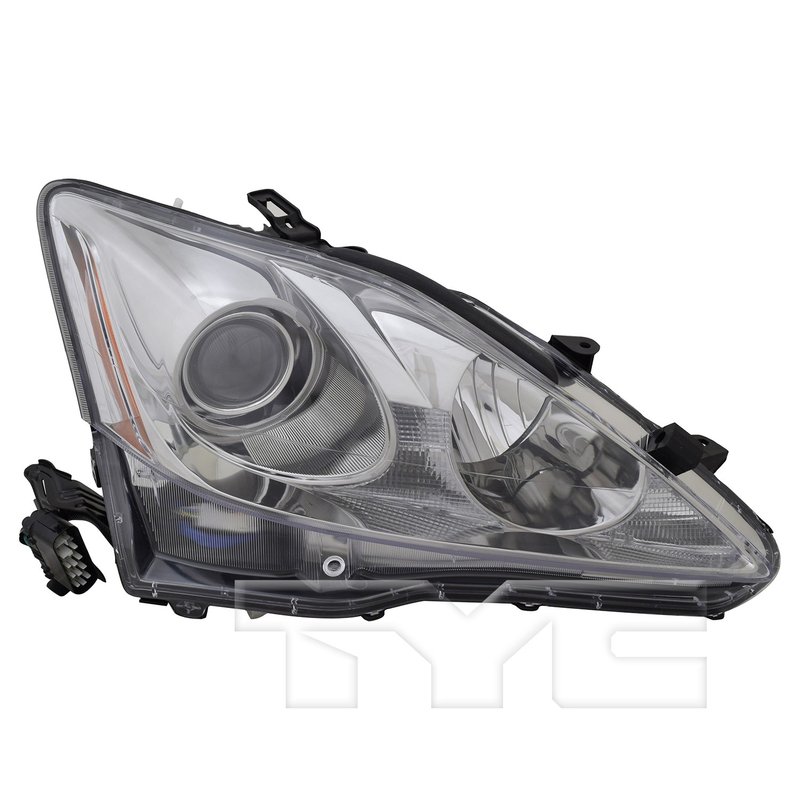

TYC 20-9267-01-9 Headlight Assembly - Right
Right Headlight Assembly for Lexus IS250 and IS350
This TYC CAPA Certified right headlight assembly is built for 2009-2010 Lexus IS250 and 2009-2010 Lexus IS350 models with HID and AFS. It includes the ballast and AFS motor, making it a direct replacement for the original front lighting unit on the passenger side.
Key Features
- Fits 2009-2010 Lexus IS250, right
- Fits 2009-2010 Lexus IS350, right
- TYC CAPA Certified replacement headlight assembly
- HID bulb type with AFS configuration
- Includes ballast and AFS motor
- Clear and amber lens design
- PMMA plastic lens and ABS plastic housing
- SAE/DOT compliant
- Cross-references Lexus 81140-53390 and Partslink LX2519124
Product Details
The TYC 20-9267-01-9 is a right headlight assembly for Lexus IS250 and Lexus IS350 applications that use HID lighting with adaptive front lighting system hardware. The assembly is supplied with the lens and housing, and it uses a clear and amber lens with PMMA plastic construction and an ABS plastic housing. The low beam uses HID D4S, while the front side marker and high beam bulb types are listed as halogen W5W and halogen WY21W. The TYC 20-9267-01-9 is SAE/DOT compliant and built for vehicles matching the listed factory configuration.
Common Replacement Uses
- Cracked or clouded right headlight lens
- Failed HID low beam output
- Malfunctioning AFS motor or ballast
- Water intrusion into the headlamp housing
- Restoring front lighting on a Lexus IS250 or IS350
Installation Notes and Tips
Verify the vehicle is equipped with HID lighting and AFS before ordering. This assembly is for the right side only and is matched to 2009-2010 Lexus IS250 and 2009-2010 Lexus IS350 models with the listed configuration. Transfer or source any bulbs not included with the assembly as needed, and confirm connector and mounting alignment against the original unit before final installation.
Quality Assurance
TYC CAPA Certified parts are built to meet recognized fit and performance standards for replacement lighting. This headlight assembly is SAE/DOT compliant and cross-references OEM part number 81140-53390 for the same application.
| Brand | TYC |
|---|---|
| Part Number | 20-9267-01-9 |
| Position | CAPA Certified, Right |
| Bulbs Included | No |
| Lens Color | Clear, amber |
| Configuration | W/ afs (includes ballast and afs motor) |
| Bulb Type | Hid |
| Lens Material | Pmma plastic |
| Housing Material | Abs plastic |
| Hardware Included | No |
| Components Included | Lens and housing |
| Front Side Marker Light Bulb Included | No |
| Front Side Marker Light Bulb Type | Halogen w5w |
| High Beam Bulb Included | No |
| High Beam Bulb Type | Halogen wy21w |
| Low Beam Bulb Included | No |
| Low Beam Bulb Type | Hid d4s |
| Other Side | 20-9268-01-9 |
| Position | Right |
| Sae/dot Compliant | Yes |
This part fits 4 vehicles. Search below:
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 2010 | Lexus | IS250 | Sedan | Right | HID Type; Configuration: w/ AFS (Includes ballast and AFS motor); CAPA Certified |
| 2010 | Lexus | IS350 | Sedan | Right | HID Type; Configuration: w/ AFS (Includes ballast and AFS motor); CAPA Certified |
| 2009 | Lexus | IS250 | Sedan | Right | HID Type; Configuration: w/ AFS (Includes ballast and AFS motor); CAPA Certified |
| 2009 | Lexus | IS350 | Sedan | Right | HID Type; Configuration: w/ AFS (Includes ballast and AFS motor); CAPA Certified |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
