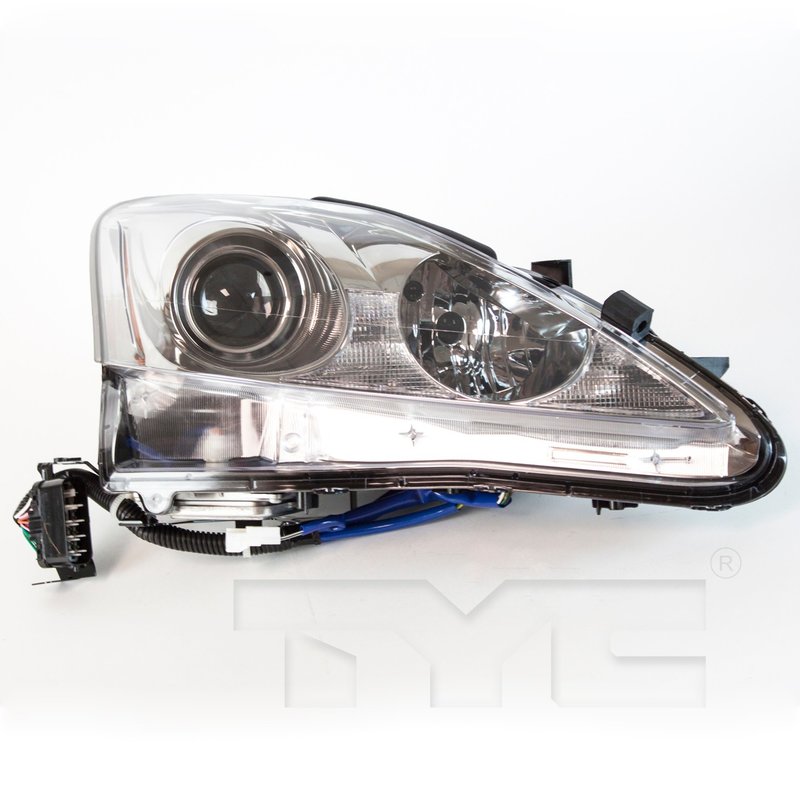

TYC 20-9267-01 Headlight Assembly - Right

Overview of TYC Regular Headlight Assembly for Lexus IS250 and IS350

The TYC Regular Headlight Assembly 20-9267-01 is designed specifically for the right side of Lexus IS250 and IS350 models. This headlight assembly features a clear and amber lens with advanced HID bulb compatibility, providing reliable exterior lighting performance.

• Right side headlight assembly for Lexus IS250 and IS350
• Includes lens and housing with clear and amber lens colors
• Compatible with HID D4S low beam bulbs (bulbs not included)
• Equipped with AFS system including ballast and AFS motor
• Durable PMMA plastic lens and ABS plastic housing materials
• Meets SAE/DOT compliance standards

Detailed Features and Specifications

This TYC Regular headlight assembly (part number 20-9267-01) is engineered with a clear and amber lens made from PMMA plastic, known for its optical clarity and resistance to UV damage. The housing is constructed from ABS plastic, offering strength and durability against road debris and weather conditions. The assembly includes an Adaptive Front-lighting System (AFS) with an integrated ballast and AFS motor, enhancing nighttime visibility by adjusting the beam direction based on steering input.

The headlight is designed for use with HID D4S low beam bulbs, halogen WY21W high beam bulbs, and halogen W5W front side marker bulbs, although bulbs are not included. This ensures compatibility with the original lighting setup of Lexus IS250 and IS350 vehicles. The assembly is SAE and DOT compliant, meeting safety and regulatory standards for exterior lighting.

About the TYC Regular Product Line

The TYC Regular product line offers reliable replacement lighting components that meet OEM specifications. This line focuses on providing quality assemblies with essential features such as durable materials and compliance with safety standards. The 20-9267-01 headlight assembly exemplifies the TYC Regular commitment to functional and dependable automotive lighting solutions for Lexus vehicles.

Common Applications and Problem Resolution

• Replacement for damaged or cracked right side headlight assembly on Lexus IS250 and IS350
• Restores proper HID low beam functionality with AFS system integration
• Improves exterior lighting clarity and visibility with clear and amber lens
• Resolves issues related to non-compliant or worn-out headlight housings
• Maintains vehicle safety and regulatory compliance with SAE/DOT certification

Installation Notes and Tips

Installation of the TYC Regular 20-9267-01 headlight assembly requires removal of the existing right side headlight. Since bulbs and hardware are not included, ensure that compatible HID D4S low beam bulbs, halogen WY21W high beam bulbs, and halogen W5W side marker bulbs are available. Proper connection of the AFS motor and ballast is necessary for full functionality. It is recommended to consult the vehicle’s service manual or a professional technician for precise installation procedures.

Quality Assurance and Warranty

TYC Regular headlight assemblies are manufactured to meet or exceed OEM standards, ensuring durability and performance. This part is SAE and DOT compliant, confirming adherence to safety regulations. Warranty coverage details should be verified with the distributor or manufacturer, as they may vary by region.
