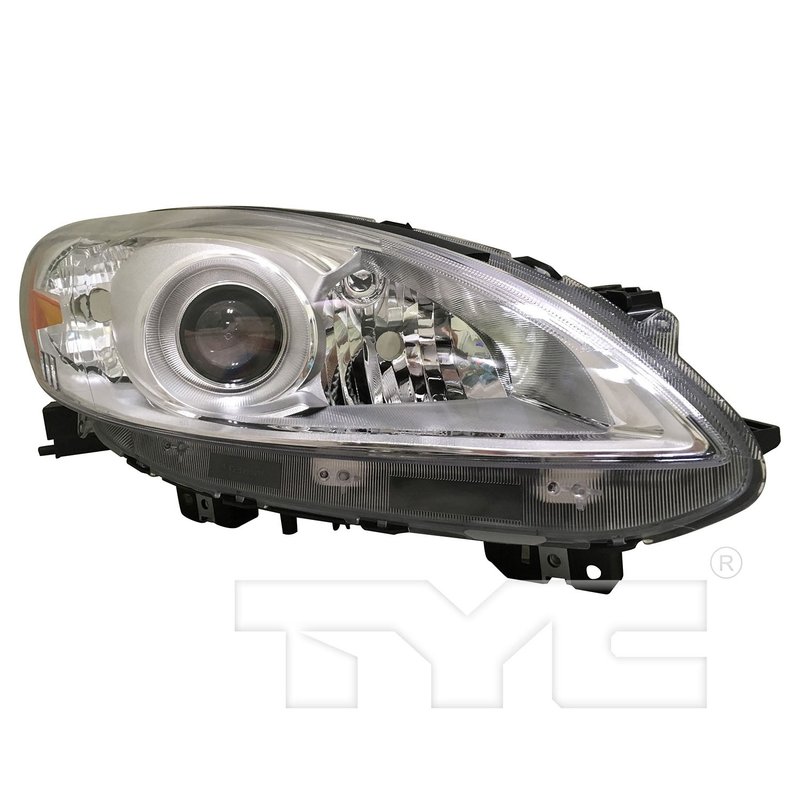

TYC 20-9277-01-9 Headlight Assembly - Front Right

Overview of TYC CAPA Certified Headlight Assembly for Mazda 5

The TYC CAPA Certified Headlight Assembly 20-9277-01-9 is designed specifically for the Mazda 5, providing reliable exterior lighting performance. This headlight assembly includes essential bulbs for side marker, signal, and park lamps, ensuring proper visibility and safety on the road.

• Compatible with Mazda 5 models
• Halogen bulb types for park lamp, side marker, and signal lights included
• Plastic lens and housing for durability and lightweight design
• Bulbs for high beam and low beam not included, compatible with H11/HB3 halogen bulbs
• Front side marker and signal light bulbs included, matching park lamp bulb type
• CAPA Certified product line ensuring compliance with industry standards

Detailed Product Features and Specifications

This TYC headlight assembly features a plastic lens and housing, which balances durability with weight considerations. The assembly comes with halogen bulbs for the front side marker, front signal, and park lamps, all matching the halogen park lamp bulb type. However, the high beam and low beam bulbs are not included and require H11 or HB3 halogen bulbs for replacement. The part number 20-9277-01-9 corresponds to the driver side, with the passenger side counterpart being 20-9278-01-9. This assembly is engineered to meet the lighting needs of Mazda 5 vehicles, ensuring proper fitment and function.

About the CAPA Certified Product Line

The CAPA Certified line from TYC represents parts that meet the Certified Automotive Parts Association standards. This certification ensures that the headlight assembly adheres to strict quality and fitment requirements, providing a reliable replacement option for Mazda 5 owners. Choosing a CAPA Certified part like the 20-9277-01-9 helps maintain vehicle safety and lighting performance according to industry benchmarks.

Common Applications and Problem Resolution

• Replacement of cracked or damaged headlight assemblies on Mazda 5
• Restoring proper front side marker and signal light functionality
• Addressing faded or yellowed plastic lenses affecting light output
• Upgrading to a CAPA Certified assembly for improved fit and compliance
• Fixing issues related to missing or broken park lamp bulbs included in the assembly

Installation Notes and Tips

Installation of the TYC 20-9277-01-9 headlight assembly is straightforward for Mazda 5 vehicles. Since high beam and low beam bulbs are not included, ensure you have compatible H11 or HB3 halogen bulbs on hand before installation. Handle the plastic lens carefully to avoid scratches, and verify all electrical connections for the included side marker, signal, and park lamp bulbs. Refer to the vehicle’s service manual for detailed removal and installation procedures.

Quality Assurance and Warranty Information

TYC’s CAPA Certified headlight assemblies undergo rigorous testing to meet industry standards for fit, finish, and performance. This part number 20-9277-01-9 is backed by TYC’s quality assurance protocols, providing confidence in durability and reliability. Warranty coverage details can be obtained from the manufacturer or authorized distributors to ensure protection against defects.
