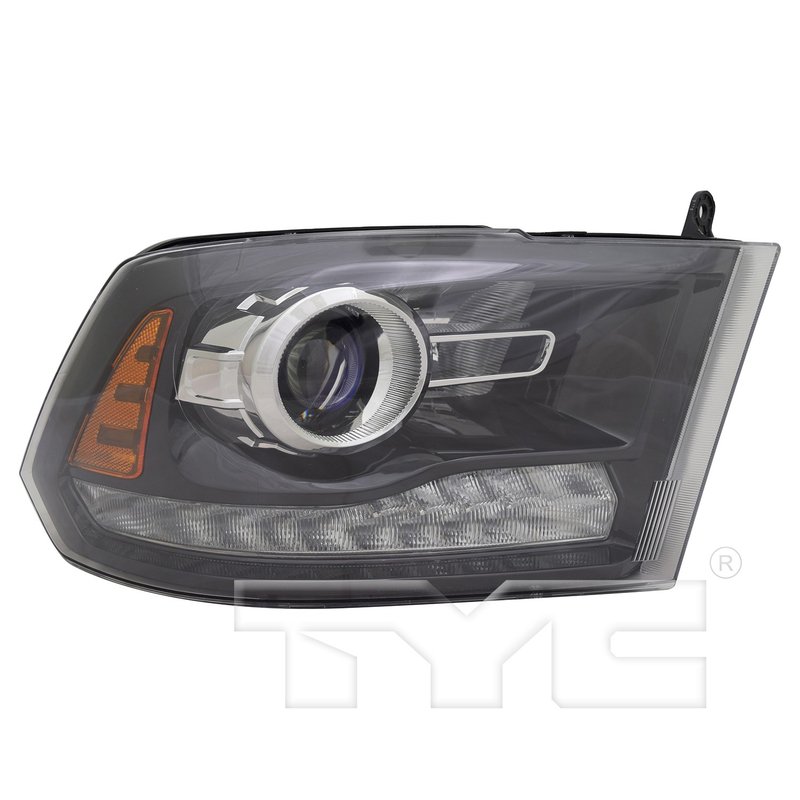

TYC 20-9391-90-9 Headlight Assembly - Right

Overview of TYC CAPA Certified Headlight Assembly

The TYC CAPA Certified Headlight Assembly 20-9391-90-9 is designed specifically for Ram 1500, 2500, and 3500 models. This right-side headlight assembly features a clear and amber lens with halogen and LED bulbs included for comprehensive exterior lighting needs.

• Complete headlight assembly with bulbs included
• Halogen low beam (HIR-2) and high beam bulbs
• LED front side marker and signal light bulbs included
• Durable plastic lens and housing materials
• Projector-type design for focused light output
• SAE/DOT compliant for road safety standards
• Compatible with Ram 1500, 2500, and 3500 models (right side)

Detailed Product Features and Specifications

This TYC headlight assembly (part number 20-9391-90-9) is engineered with a plastic lens and housing to provide a lightweight yet durable solution for your Ram truck’s exterior lighting. The assembly includes halogen bulbs for both low beam (HIR-2) and high beam functions, ensuring reliable illumination. Additionally, the front side marker and front signal lights utilize LED bulbs, offering improved visibility and longer lifespan compared to traditional bulbs. The lens color combines clear and amber sections to meet vehicle lighting requirements, while the projector-type design enhances beam focus and road illumination. This assembly is designed for the right side of Ram 1500, 2500, and 3500 models and is SAE/DOT compliant, meeting federal safety standards.

About the CAPA Certified Product Line

The CAPA Certified line from TYC represents parts that meet the Certified Automotive Parts Association standards for quality and fitment. This headlight assembly is part of that line, ensuring it adheres to strict guidelines for performance and durability. Choosing a CAPA Certified product like the 20-9391-90-9 provides assurance that the part is designed to match OEM specifications for your Ram truck.

Common Applications and Problem Resolution

• Replacement for damaged or cracked headlight assemblies on Ram 1500, 2500, and 3500
• Restores proper low and high beam lighting performance
• Improves visibility with upgraded LED side marker and signal lights
• Resolves issues with foggy or discolored lenses
• Ensures compliance with SAE/DOT lighting regulations

Installation Notes and Tips

Installation of the TYC 20-9391-90-9 headlight assembly requires no additional hardware, as it comes as a complete assembly with bulbs included. It is designed for direct replacement on the right side of compatible Ram models. Care should be taken to align the projector lens properly to maintain beam pattern and avoid glare. Disconnect the vehicle battery before installation to prevent electrical issues. Refer to the vehicle’s service manual for detailed removal and installation procedures.

Quality Assurance and Warranty

TYC’s CAPA Certified headlight assemblies are manufactured to meet or exceed industry standards. This part is SAE/DOT compliant, ensuring it meets federal safety requirements. While specific warranty details are not provided here, CAPA Certified products typically come with a limited warranty covering defects in materials and workmanship. Verify warranty terms with the product documentation or supplier.
