Part #: 20-9524-00-9

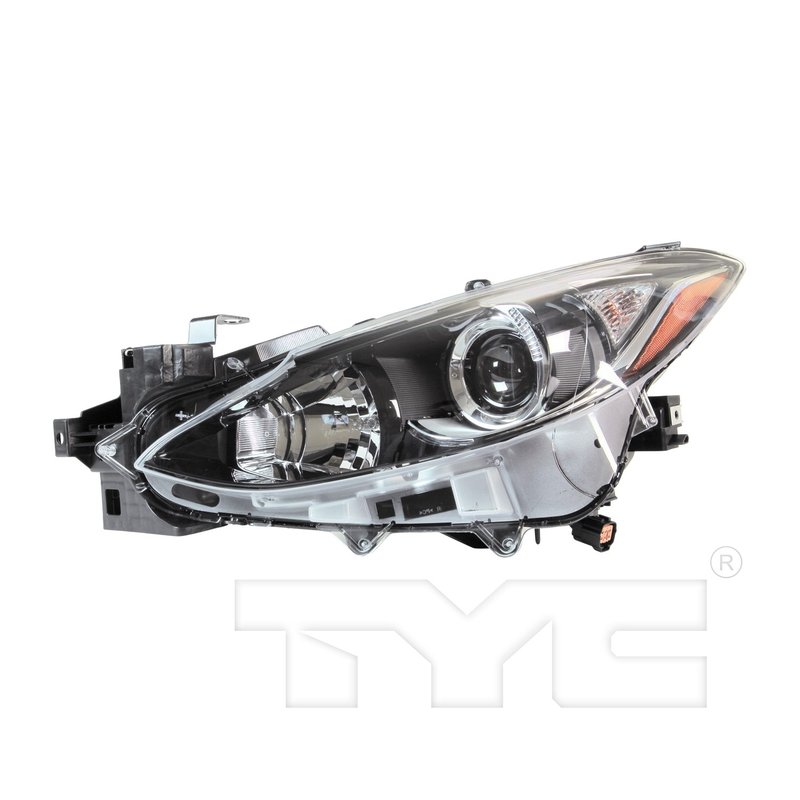

TYC 20-9524-00-9 Headlight Assembly - Left

CAPA Certified, Left
⚙️ 6 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$111.87Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
📦CAPA Certified, Left
🚗Fitment: Mazda, 3
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST

Overview of TYC CAPA Certified Headlight Assembly

The TYC CAPA Certified Headlight Assembly 20-9524-00-9 is designed specifically for the left side of Mazda 3 models. This complete headlight assembly includes halogen bulbs and features clear and amber lenses for optimal lighting performance and safety.

  • Complete headlight assembly with bulbs included
  • Halogen bulb type for both high and low beams
  • Clear and amber plastic lens for durability and visibility
  • Plastic housing material for lightweight and corrosion resistance
  • SAE/DOT compliant for road safety standards
  • Compatible with Mazda 3 vehicles (left side)

Detailed Product Description

This TYC headlight assembly, part number 20-9524-00-9, is engineered to meet the lighting needs of Mazda 3 drivers. The assembly includes both high beam and low beam halogen bulbs, ensuring full functionality upon installation. The clear and amber lens combination provides effective illumination and turn signal visibility. Constructed with durable plastic materials for both the lens and housing, this headlight assembly offers resistance to environmental factors while maintaining a lightweight design. The product is SAE and DOT compliant, meeting regulatory standards for exterior vehicle lighting.

CAPA Certified Product Line Information

The CAPA Certified line by TYC represents parts that meet or exceed the standards set by the Certified Automotive Parts Association. This certification ensures that the headlight assembly 20-9524-00-9 maintains quality, fit, and function comparable to original equipment. Choosing a CAPA Certified part provides assurance of reliability and compatibility with your Mazda 3.

Common Applications and Problem Solving

  • Replacement for damaged or cracked left headlight assembly on Mazda 3
  • Restores proper lighting performance with included halogen bulbs
  • Improves visibility and safety during night driving or adverse weather
  • Resolves issues with non-compliant or malfunctioning exterior lighting
  • Upgrades faded or yellowed lenses to clear and amber for better signal clarity

Installation Notes and Tips

Installation of the TYC 20-9524-00-9 headlight assembly is straightforward for technicians familiar with Mazda 3 lighting components. The assembly comes complete with bulbs, eliminating the need for separate bulb purchases. Ensure electrical connections are secure and test all lighting functions before finalizing installation. Refer to the vehicle’s service manual for specific removal and installation procedures to avoid damage to mounting points or wiring.

Quality Assurance and Warranty

TYC CAPA Certified headlight assemblies are manufactured to meet industry standards and undergo rigorous quality control. This part is SAE and DOT compliant, ensuring it meets safety and performance requirements. Warranty coverage details should be confirmed with the distributor or retailer, as TYC typically offers limited warranties on their CAPA Certified products.

BrandTYC
Part Number20-9524-00-9
PositionCAPA Certified, Left
Bulb TypeHalogen
Bulbs IncludedYes
Components IncludedComplete Assembly
High Beam Bulb IncludedYES
High Beam Bulb TypeHalogen
Housing MaterialPlastic
Lens ColorClear, Amber
Lens MaterialPlastic
Low Beam Bulb IncludedYES
Low Beam Bulb TypeHalogen
Other Side20-9523-00-9
PositionLeft
RemarksHalogen Bulb Type
Sae/dot CompliantYES

This part fits 6 vehicles. Search below:

YearMakeModelBody TypePositionNotes
2016Mazda3HatchbackLeftHalogen Bulb Type; Other Side: 20-9523-00-9; CAPA Certified
2016Mazda3SedanLeftHalogen Bulb Type; Other Side: 20-9523-00-9; CAPA Certified
2015Mazda3HatchbackLeftHalogen Bulb Type; Other Side: 20-9523-00-9; CAPA Certified
2015Mazda3SedanLeftHalogen Bulb Type; Other Side: 20-9523-00-9; CAPA Certified
2014Mazda3HatchbackLeftHalogen Bulb Type; Other Side: 20-9523-00-9; CAPA Certified
2014Mazda3SedanLeftHalogen Bulb Type; Other Side: 20-9523-00-9; CAPA Certified

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

BPW1-51-0L0

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
