Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

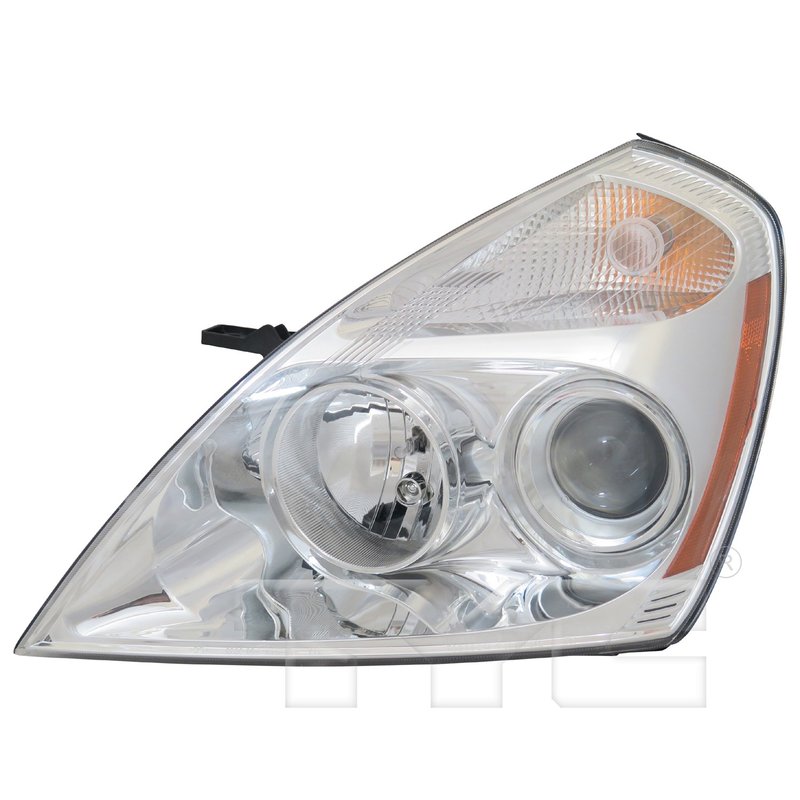

TYC 20-9660-00-9 Headlight Assembly - Left
| Brand | TYC 20-9660-00-9 |
|---|---|
| Position | Left |
| Bulb Type | Halogen |
| Bulbs Included | YES |
| Components Included | Complete Assembly |
| Front Side Marker Light Bulb Included | YES |
| Front Side Marker Light Bulb Type | Halogen W5W |
| Front Signal Light Bulb Included | YES |
| Front Signal Light Bulb Type | Halogen 2357A |
| Hardware Included | No |
| High Beam Bulb Included | YES |
| High Beam Bulb Type | Halogen H1 |
| Housing Material | PP Plastic |
| Lens Color | Clear, Amber |
| Lens Material | PC Plastic |
| Low Beam Bulb Included | YES |
| Low Beam Bulb Type | Halogen H11 |
| Other Side | 20-9659-00-9 |
| Park Lamp Bulb Included | YES |
| Park Lamp Bulb Type | Halogen 2357A |
| Sae/dot Compliant | Yes |
| Product line | CAPA Certified |
| Fits | Kia · 13 vehicles |
CAPA Certified. Meets recognized quality standards for dependable lighting performance.
Complete assembly. Includes bulbs and housing for a ready-to-install replacement.
Clear, amber lens. Provides crisp illumination with a clean, factory-style look.
Cross-references Kia 92101 4D013 and Partslink KI2502133 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Left Headlight Assembly for Kia Sedona
This TYC CAPA Certified headlight assembly is built for the left side of 2008-2012 Kia Sedona models. Part number 20-9660-00-9 includes the complete exterior lighting assembly with bulbs installed for a direct replacement on the driver-side front corner.
Key Features
- CAPA Certified TYC headlight assembly for consistent fit and construction
- Fits 2008-2012 Kia Sedona, left
- Complete assembly with bulbs included
- Clear and amber lens color for factory-style appearance
- Halogen bulb type with included low beam, high beam, park lamp, front signal, and front side marker bulbs
- Lens material: PC plastic; housing material: PP plastic
- SAE/DOT compliant
- Cross-reference: Kia 92101 4D013; Partslink KI2502133
Product Details
TYC 20-9660-00-9 is a left headlight assembly for the Kia Sedona, engineered as a complete exterior lighting replacement. It uses a clear and amber lens with a halogen lighting setup, including H11 low beam, H1 high beam, 2357A front signal and park lamp bulbs, and W5W front side marker lighting. The CAPA Certified designation supports verified replacement quality for this application, while the SAE/DOT compliant construction aligns with road-use lighting requirements. This part number 20-9660-00-9 is a direct fit for 2008-2012 Kia Sedona left-side headlamp replacement needs.
Common Reasons to Replace
- Cracked or clouded headlight lens
- Dim, failed, or uneven front lighting
- Moisture intrusion inside the headlamp housing
- Broken mounting tabs or damaged housing
- Restoring proper left-side illumination on a Kia Sedona
Installation Notes
Verify left-side fitment before installation on 2008-2012 Kia Sedona models. Transfer or connect the vehicle’s existing wiring as required and confirm bulb operation after mounting. Because this assembly includes bulbs, check all lighting functions before finalizing alignment and aiming. Compare the original unit to TYC 20-9660-00-9 and the other-side reference 20-9659-00-9 to confirm correct side placement.
Quality Assurance
TYC CAPA Certified lighting products are built to meet recognized replacement standards for exterior lighting applications. This headlight assembly is SAE/DOT compliant and uses durable PC plastic lens and PP plastic housing materials for everyday road use.
| Year | Make | Model | Submodel | Body Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2012 | Kia | Sedona | EX | Mini Passenger Van | Left | CAPA Certified |
| 2012 | Kia | Sedona | LX | Mini Passenger Van | Left | CAPA Certified |
| 2011 | Kia | Sedona | EX | Mini Passenger Van | Left | CAPA Certified |
| 2011 | Kia | Sedona | LX | Mini Passenger Van | Left | CAPA Certified |
| 2010 | Kia | Sedona | LX | Mini Passenger Van | Left | CAPA Certified |
| 2010 | Kia | Sedona | EX | Mini Passenger Van | Left | CAPA Certified |
| 2010 | Kia | Sedona | Base | Mini Passenger Van | Left | CAPA Certified |
| 2009 | Kia | Sedona | LX | Mini Passenger Van | Left | CAPA Certified |
| 2009 | Kia | Sedona | Base | Mini Passenger Van | Left | CAPA Certified |
| 2009 | Kia | Sedona | EX | Mini Passenger Van | Left | CAPA Certified |
| 2008 | Kia | Sedona | LX | Mini Passenger Van | Left | CAPA Certified |
| 2008 | Kia | Sedona | Base | Mini Passenger Van | Left | CAPA Certified |
| 2008 | Kia | Sedona | EX | Mini Passenger Van | Left | CAPA Certified |
| No rows match your filter. | ||||||
