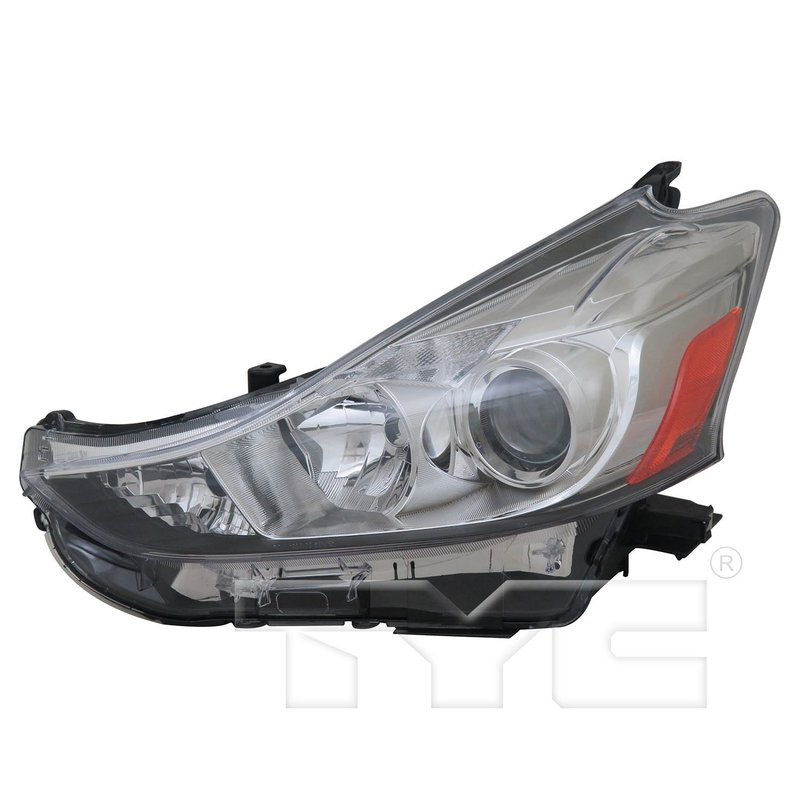

TYC 20-9692-01-9 Headlight Assembly - Left
| Brand | TYC 20-9692-01-9 |
|---|---|
| Position | Left |
| Bulb Type | Halogen |
| Bulbs Included | No |
| Components Included | Lens And Housing |
| Front Side Marker Light Bulb Included | No |
| Front Side Marker Light Bulb Type | Halogen |
| Front Signal Light Bulb Included | No |
| Front Signal Light Bulb Type | Halogen |
| Hardware Included | No |
| High Beam Bulb Included | YES |
| High Beam Bulb Type | Halogen |
| Housing Material | Plastic |
| Lens Color | Clear, Amber |
| Lens Material | Plastic |
| Low Beam Bulb Included | YES |
| Low Beam Bulb Type | Halogen |
| Other Side | 20-9691-01-9 |
| Park Lamp Bulb Included | No |
| Park Lamp Bulb Type | Halogen |
| Remarks | Halogen Type |
| Sae/dot Compliant | YES |
| Product line | CAPA Certified |
| Fits | Toyota · 12 vehicles |
CAPA Certified. Meets recognized quality standards for dependable replacement confidence.
Halogen headlight assembly. Complete lens-and-housing design for a straightforward replacement.
SAE/DOT compliant. Built to meet lighting compliance requirements.
Cross-references Partslink TO2518152 and Toyota 81170-47650 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Left Headlight Assembly for Prius V
This TYC CAPA Certified left headlight assembly is built for 2015-2017 Toyota Prius V models with halogen lighting. It includes the lens and housing and is SAE/DOT compliant for direct replacement use on the front left side.
Key Features
- Fits 2015-2017 Toyota Prius V, left
- TYC CAPA Certified replacement headlight assembly
- Halogen bulb type with clear and amber lens color
- Lens and housing included; bulbs not included except high and low beam bulbs
- Plastic lens and plastic housing construction
- SAE/DOT compliant
- Cross-reference: Toyota 81170-47650
- Cross-reference: Partslink TO2518152
Detailed Description
TYC Part Number 20-9692-01-9 is a left headlight assembly for the Toyota Prius V, engineered for halogen-equipped vehicles from 2015 through 2017. The CAPA Certified designation identifies this as a replacement headlamp built to meet recognized fit and performance standards for the front left position. The assembly uses a clear and amber lens with a plastic lens and housing, and it includes the lens and housing components needed for replacement. High beam and low beam bulbs are included, while the front side marker, front signal, and park lamp bulbs are not included. This part number, 20-9692-01-9, is a direct-fit option for Prius V owners replacing a damaged or worn left headlight assembly.
Common Replacement Reasons
- Cracked or broken left headlight lens
- Clouded or damaged headlamp housing
- Failed halogen headlight assembly on a Toyota Prius V
- Restoring front lighting after collision damage
- Replacing a non-functioning OE-style left headlamp
Installation Notes and Tips
Verify halogen headlight configuration before ordering. Confirm the left-side application and compare the existing connector, mounting points, and lens style to the original assembly. Transfer any required bulbs or related components not included with the unit, and test beam aim after installation. For best results, inspect the opposite side, part number 20-9691-01-9, for matching condition and appearance.
Quality Assurance
TYC CAPA Certified lighting products are built for OE-style replacement applications and this assembly is SAE/DOT compliant. Use part number 20-9692-01-9 when matching the correct left headlight assembly for 2015-2017 Toyota Prius V models.
| Year | Make | Model | Submodel | Body Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2017 | Toyota | Prius V | Two | Wagon | Left | Halogen Type; Other Side: 20-9691-01-9; CAPA Certified |
| 2017 | Toyota | Prius V | Four | Wagon | Left | Halogen Type; Other Side: 20-9691-01-9; CAPA Certified |
| 2017 | Toyota | Prius V | Three | Wagon | Left | Halogen Type; Other Side: 20-9691-01-9; CAPA Certified |
| 2017 | Toyota | Prius V | Five | Wagon | Left | Halogen Type; Other Side: 20-9691-01-9; CAPA Certified |
| 2016 | Toyota | Prius V | Five | Wagon | Left | Halogen Type; Other Side: 20-9691-01-9; CAPA Certified |
| 2016 | Toyota | Prius V | Four | Wagon | Left | Halogen Type; Other Side: 20-9691-01-9; CAPA Certified |
| 2016 | Toyota | Prius V | Two | Wagon | Left | Halogen Type; Other Side: 20-9691-01-9; CAPA Certified |
| 2016 | Toyota | Prius V | Three | Wagon | Left | Halogen Type; Other Side: 20-9691-01-9; CAPA Certified |
| 2015 | Toyota | Prius V | Four | Wagon | Left | Halogen Type; Other Side: 20-9691-01-9; CAPA Certified |
| 2015 | Toyota | Prius V | Five | Wagon | Left | Halogen Type; Other Side: 20-9691-01-9; CAPA Certified |
| 2015 | Toyota | Prius V | Three | Wagon | Left | Halogen Type; Other Side: 20-9691-01-9; CAPA Certified |
| 2015 | Toyota | Prius V | Two | Wagon | Left | Halogen Type; Other Side: 20-9691-01-9; CAPA Certified |
