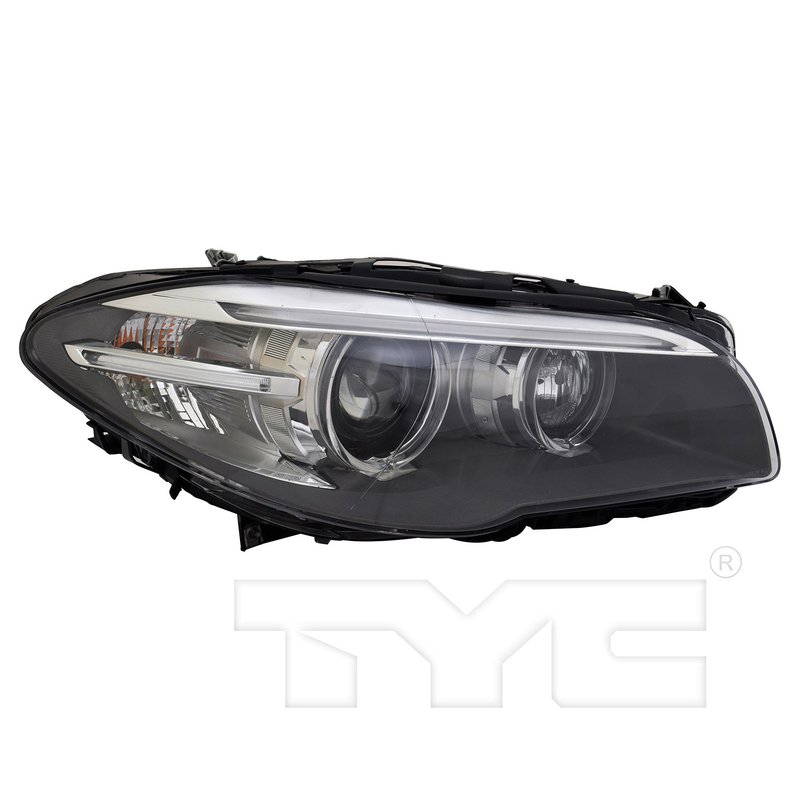

TYC 20-9767-01 Headlight Assembly - Right

Overview of TYC Regular Right Headlight Assembly for BMW 5 Series

The TYC Regular right headlight assembly 20-9767-01 is designed specifically for select BMW 5 Series models, including the 528i, 535i, 550i, and ActiveHybrid 5. This headlight assembly features a clear plastic lens and durable plastic housing, engineered to meet SAE/DOT compliance standards for reliable exterior lighting performance.

• Compatible with BMW 528i, 528i xDrive, 535d, 535d xDrive, 535i, 535i xDrive, 550i, 550i xDrive, and ActiveHybrid 5
• Right side headlight assembly, part number 20-9767-01
• Clear plastic PC lens and plastic PP housing for durability
• Includes lens and housing components only; bulbs not included for low and high beams
• Daytime running light and front side marker light bulbs included (LED type)
• Front signal light and park lamp bulbs included (halogen type)
• Designed for HID bulb types D1S for low and high beams
• SAE/DOT compliant for safety and regulatory standards

Detailed Product Description

The TYC Regular 20-9767-01 headlight assembly is engineered to restore or upgrade the exterior lighting system on compatible BMW 5 Series vehicles. The assembly features a clear plastic PC lens paired with a robust plastic PP housing, providing resistance to environmental elements and road debris. This right side headlight assembly supports HID D1S bulbs for both low and high beams, although these bulbs are not included. The daytime running light and front side marker light bulbs are LED type and included, enhancing visibility and safety. Additionally, the front signal light and park lamp bulbs are halogen types and included with the assembly. This part is designed to meet SAE/DOT compliance, ensuring it adheres to federal lighting standards.

Applications and Common Issues Addressed

• Replacement for damaged or cracked right headlight assembly on BMW 528i and 535i models
• Restores proper lighting function for daytime running lights and side marker lights
• Resolves issues with foggy or yellowed lenses affecting visibility
• Upgrades worn or non-compliant headlight assemblies to meet safety standards
• Addresses electrical lighting failures related to housing or lens damage

Installation Notes and Tips

When installing the TYC Regular 20-9767-01 headlight assembly, ensure the vehicle is compatible with the specified BMW models. Since low and high beam bulbs are not included, source compatible HID D1S bulbs separately. The assembly includes the lens and housing components, so handle carefully to avoid damage during installation. Verify all LED and halogen bulbs included are properly seated and connected. Consult the vehicle’s service manual for detailed installation procedures and alignment specifications.

Quality Assurance and Compliance

TYC Regular headlight assemblies are manufactured to meet SAE and DOT compliance standards, ensuring safety and regulatory adherence. The use of durable plastic materials for the lens and housing contributes to long-lasting performance. While specific warranty details are not provided, TYC products typically undergo rigorous quality control to maintain consistent reliability for BMW 5 Series lighting applications.
