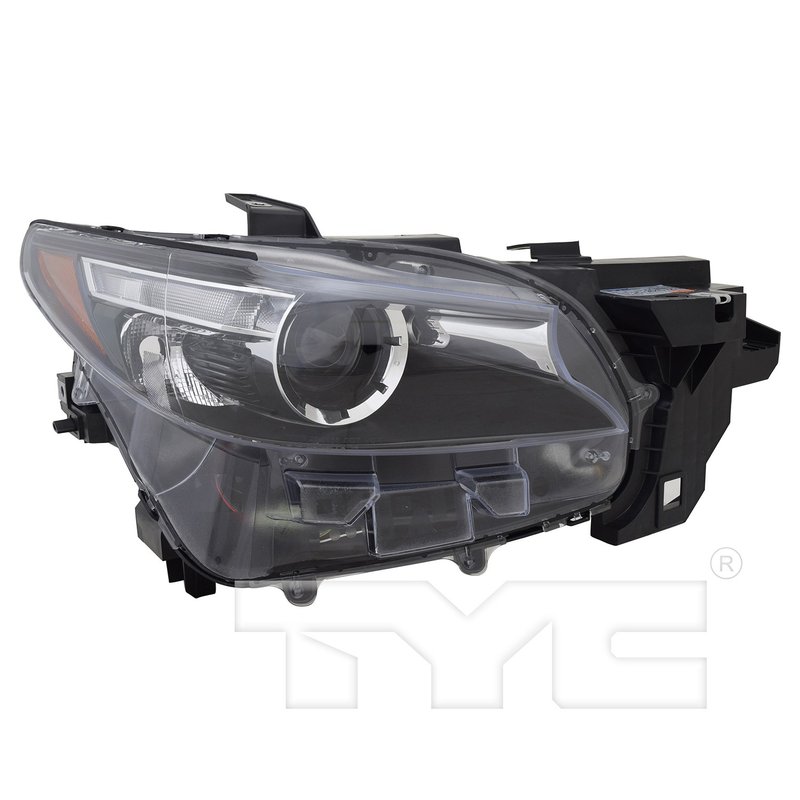

TYC 20-9865-00-9 Headlight Assembly - Right
| Brand | TYC 20-9865-00-9 |
|---|---|
| Position | Right |
| Bulb Type | LED |
| Bulbs Included | Yes |
| Front Side Marker Light Bulb Included | Not Included |
| Front Side Marker Light Bulb Type | Halogen |
| Front Signal Light Bulb Included | Not Included |
| Front Signal Light Bulb Type | Halogen |
| High Beam Bulb Included | YES |
| High Beam Bulb Type | LED |
| Housing Material | Plastic |
| Lens Color | Clear, Amber |
| Lens Material | Plastic |
| Low Beam Bulb Included | YES |
| Low Beam Bulb Type | LED |
| Other Side | 20-9866-00-9 |
| Park Lamp Bulb Included | Not Included |
| Park Lamp Bulb Type | same as Side Marker |
| Sae/dot Compliant | Yes |
| Product line | CAPA Certified |
| Fits | Mazda · 8 vehicles |
CAPA Certified. Meets recognized quality standards for a dependable lighting replacement.
LED bulbs included. Ready with LED high and low beams already installed.
SAE/DOT compliant. Built to meet road-use lighting requirements.
Cross-references Mazda TM52-51-0K0B and Partslink MA2503148 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Right Headlight Assembly for Mazda CX-9
This TYC CAPA Certified headlight assembly is built for the right side of the vehicle and fits 2016-2023 Mazda CX-9 models without adaptive headlamps. It includes LED high beam and low beam bulbs, with a clear and amber lens for a factory-style exterior lighting replacement.
Key Features
- TYC CAPA Certified headlight assembly for the right side
- Fits 2016-2023 Mazda CX-9, front right, without adaptive headlamps
- LED high beam and low beam bulbs included
- Clear and amber lens with plastic lens and housing construction
- SAE/DOT compliant for road use
- Front side marker and front signal bulb types are halogen
Product Details
The TYC 20-9865-00-9 is a right headlight assembly engineered for Mazda CX-9 applications that require a non-adaptive headlamp setup. The clear lens and amber accent match the original exterior lighting layout, while the LED high and low beam bulbs provide an integrated replacement solution. As part of TYC’s CAPA Certified line, this headlight assembly is positioned for buyers who want a certified replacement option for the Mazda CX-9. The part number 20-9865-00-9 is also useful when cross-checking catalog listings and confirming the correct right-side unit.
This part cross-references Mazda TM52-51-0K0B and Partslink MA2503148 for the same application.
Common Problems This Part Can Address
- Cracked or damaged right headlight housing
- Clouded or broken lens affecting forward lighting output
- Failed low beam or high beam lighting on the passenger side
- Water intrusion or housing wear in the original assembly
- Restoring proper front-end lighting appearance on a Mazda CX-9
Installation Notes and Tips
Fits 2016-2023 Mazda CX-9, right, without adaptive headlamps. Confirm the vehicle uses the non-adaptive headlamp configuration before ordering. Verify connector style, bulb layout, and mounting points against the original assembly. The part number 20-9865-00-9 should be matched to the existing unit and vehicle trim to help ensure correct application.
Quality Assurance
TYC CAPA Certified lighting products are built to meet recognized certification standards for replacement parts. This headlight assembly is SAE/DOT compliant and uses LED bulbs for the high beam and low beam functions, with a plastic lens and housing designed for exterior lighting service.
| Year | Make | Model | Submodel | Body Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2023 | Mazda | CX-9 | Touring | Sport Utility | Right | w/o Adaptive Headlamps; CAPA Certified |
| 2022 | Mazda | CX-9 | Touring | Sport Utility | Right | w/o Adaptive Headlamps; CAPA Certified |
| 2021 | Mazda | CX-9 | Touring | Sport Utility | Right | w/o Adaptive Headlamps; CAPA Certified |
| 2020 | Mazda | CX-9 | — | Sport Utility | Right | w/o Adaptive Headlamps; CAPA Certified |
| 2019 | Mazda | CX-9 | — | Sport Utility | Right | w/o Adaptive Headlamps; CAPA Certified |
| 2018 | Mazda | CX-9 | — | Sport Utility | Right | w/o Adaptive Headlamps; CAPA Certified |
| 2017 | Mazda | CX-9 | — | Sport Utility | Right | w/o Adaptive Headlamps; CAPA Certified |
| 2016 | Mazda | CX-9 | — | Sport Utility | Right | w/o Adaptive Headlamps; CAPA Certified |
