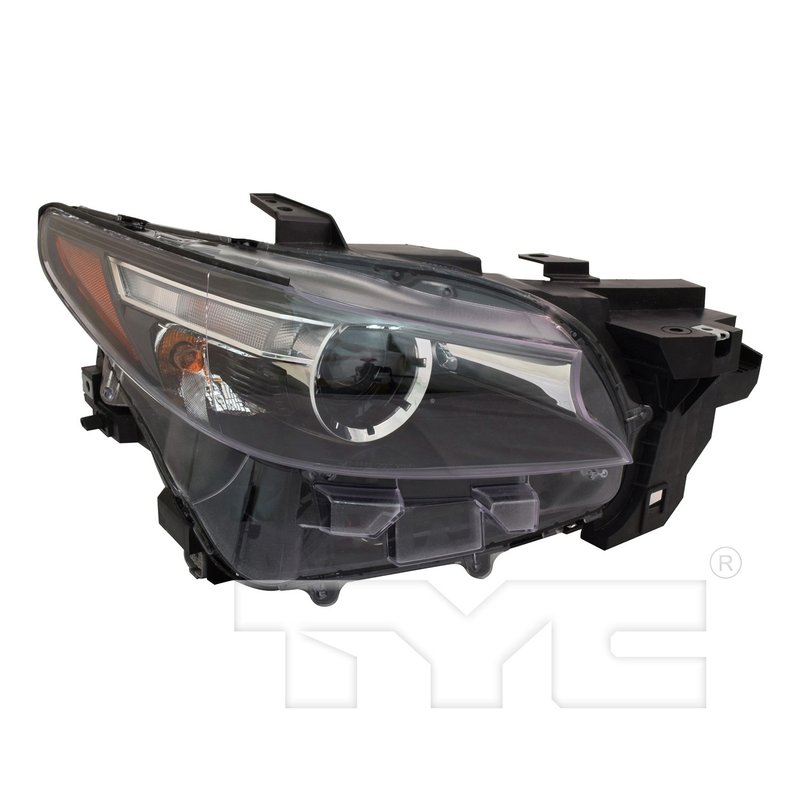

TYC 20-9865-00 Headlight Assembly - Right
| Brand | TYC 20-9865-00 |
|---|---|
| Position | Right |
| Bulb Type | LED |
| Bulbs Included | Yes |
| Front Side Marker Light Bulb Included | Included |
| Front Side Marker Light Bulb Type | Halogen |
| Front Signal Light Bulb Included | Included |
| Front Signal Light Bulb Type | Halogen |
| High Beam Bulb Included | YES |
| High Beam Bulb Type | LED |
| Housing Material | Plastic |
| Lens Color | Clear, Amber |
| Lens Material | Plastic |
| Low Beam Bulb Included | YES |
| Low Beam Bulb Type | LED |
| Other Side | 20-9866-00 |
| Park Lamp Bulb Included | Included |
| Park Lamp Bulb Type | same as Side Marker |
| Sae/dot Compliant | YES |
| Product line | TYC Regular |
| Fits | Mazda · 8 vehicles |
LED lighting. Includes LED bulbs for bright, efficient illumination.
Clear, amber lens. Provides a clean look with distinct signal visibility.
SAE/DOT compliant. Meets recognized lighting standards for road use.
Cross-references Mazda TM52-51-0K0B and Partslink MA2503148 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Right Headlight Assembly for Mazda CX-9
This TYC Regular headlight assembly is a direct replacement for the right side on select Mazda CX-9 models. It is built with a clear and amber lens, plastic lens and housing materials, and includes the bulbs needed for the front lighting functions.
Key Features
- Position: right side headlight assembly
- Bulbs included for low beam, high beam, park lamp, front side marker, and front signal functions
- LED low beam and high beam bulbs included
- Halogen front side marker and front signal bulbs included
- Clear and amber lens with plastic lens and housing construction
- SAE/DOT compliant
- TYC Regular product line replacement for OE-style service
Product Details
TYC Part Number 20-9865-00 is a right headlight assembly for the Mazda CX-9. It is listed for 2016-2020 Mazda CX-9, right, without adaptive headlamps, and for 2021-2023 Mazda CX-9, right, without adaptive headlamps. The assembly includes LED bulbs for the high beam and low beam, plus included bulbs for the front side marker, front signal, and park lamp functions. This part cross-references Mazda TM52-51-0K0B and Partslink MA2503148 for the same application.
The TYC Regular line focuses on replacement lighting components for vehicles that need a straightforward OE-style fit. For Mazda CX-9 owners searching for a right headlight assembly, TYC 20-9865-00 provides the specified lighting configuration and compliance needed for exterior lighting service.
Common Reasons for Replacement
- Cracked or damaged right headlight lens
- Failed low beam or high beam lighting on the passenger side
- Moisture intrusion or housing wear
- Amber or clear lens damage affecting front lighting visibility
- Restoring proper front lighting after collision repair
Installation Notes
Fits 2016-2020 Mazda CX-9, right, without adaptive headlamps. Fits 2021-2023 Mazda CX-9, right, without adaptive headlamps. Verify the vehicle is equipped without adaptive headlamps before installation and confirm the right-side application matches the original unit. Compare the connector layout, mounting points, and lighting functions to the removed assembly before final installation.
Quality Assurance
This TYC headlight assembly is SAE/DOT compliant and built as a replacement lighting component for the specified Mazda CX-9 applications. The TYC Regular line is used for dependable exterior lighting replacement where OE-style fit and function are required.
| Year | Make | Model | Submodel | Body Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2023 | Mazda | CX-9 | Touring Plus | Sport Utility | Right | w/o Adaptive Headlamps; TYC Regular |
| 2022 | Mazda | CX-9 | Touring | Sport Utility | Right | w/o Adaptive Headlamps; TYC Regular |
| 2021 | Mazda | CX-9 | Sport | Sport Utility | Right | w/o Adaptive Headlamps; TYC Regular |
| 2020 | Mazda | CX-9 | — | Sport Utility | Right | w/o Adaptive H.L; Other Side: 20-9866-00; TYC Regular |
| 2019 | Mazda | CX-9 | — | Sport Utility | Right | w/o Adaptive H.L; Other Side: 20-9866-00; TYC Regular |
| 2018 | Mazda | CX-9 | — | Sport Utility | Right | w/o Adaptive H.L; Other Side: 20-9866-00; TYC Regular |
| 2017 | Mazda | CX-9 | — | Sport Utility | Right | w/o Adaptive H.L; Other Side: 20-9866-00; TYC Regular |
| 2016 | Mazda | CX-9 | — | Sport Utility | Right | w/o Adaptive H.L; Other Side: 20-9866-00; TYC Regular |
