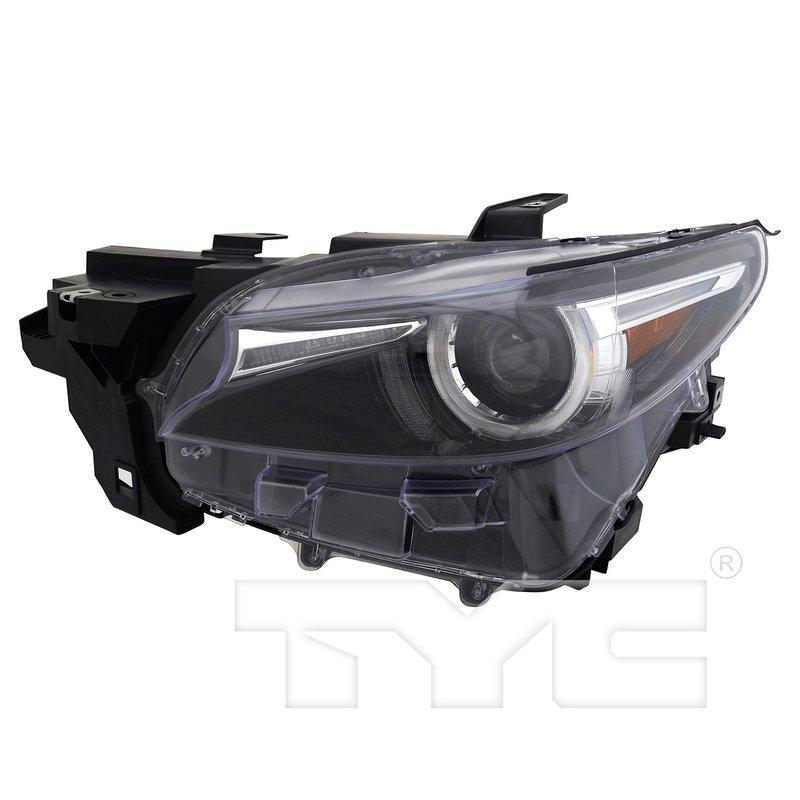

TYC 20-9868-00 Headlight Assembly - Left
| Brand | TYC 20-9868-00 |
|---|---|
| Position | Left |
| Bulb Type | LED |
| Bulbs Included | Yes |
| Components Included | Complete Assembly |
| Configuration | w/ AFS |
| Daytime Running Light Bulb Included | YES |
| Daytime Running Light Bulb Type | LED |
| Front Side Marker Light Bulb Included | YES |
| Front Side Marker Light Bulb Type | LED |
| Front Signal Light Bulb Included | YES |
| Front Signal Light Bulb Type | LED |
| Hardware Included | No |
| High Beam Bulb Included | YES |
| High Beam Bulb Type | LED |
| Housing Material | PP Plastic |
| Lens Color | Clear |
| Lens Material | PC Plastic |
| Low Beam Bulb Included | YES |
| Low Beam Bulb Type | LED |
| Other Side | 20-9867-00 |
| Park Lamp Bulb Included | YES |
| Park Lamp Bulb Type | LED |
| Sae/dot Compliant | Yes |
| Product line | TYC Regular |
| Fits | Mazda · 15 vehicles |
Complete assembly. Includes bulbs and integrated LED lighting components.
Clear lens. Helps deliver a clean, modern lighting appearance.
SAE/DOT compliant. Built to meet recognized lighting standards.
Cross-references Mazda TM55-51-041B and Partslink MA2518174 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
OE-Style Left Headlight for Mazda CX-9
This TYC Regular headlight assembly is built for the left side of the 2016-2023 Mazda CX-9 with adaptive headlamps. Part number 20-9868-00 is a complete exterior lighting assembly with LED bulbs included and a clear lens for a clean factory-style appearance.
Key Features
- Fits 2016-2023 Mazda CX-9, left
- Configuration: w/ AFS for adaptive headlamp systems
- Complete assembly with bulbs included
- LED bulb type for low beam, high beam, daytime running light, park lamp, front signal light, and front side marker light
- Clear lens with PC plastic lens material
- PP plastic housing
- SAE/DOT compliant
- Cross-reference: Mazda TM55-51-041B
- Cross-reference: Partslink MA2518174
Detailed Description
TYC Regular part number 20-9868-00 is a left headlight assembly for the Mazda CX-9, engineered for vehicles equipped with adaptive headlamps. It includes the complete lighting unit with LED bulbs already specified for the low beam, high beam, daytime running light, park lamp, front signal light, and front side marker light functions. The clear lens and durable plastic construction support a factory-style exterior lighting replacement for the Mazda CX-9.
The TYC Regular product line focuses on direct replacement lighting components that match the original application requirements. For drivers searching for a 2016-2023 Mazda CX-9 left headlight assembly with AFS, this part number 20-9868-00 provides the correct configuration for the listed fitment.
What This Headlight Assembly Helps Address
- Cracked or clouded left headlight lens
- Failed LED lighting functions in the headlamp assembly
- Water intrusion or housing damage
- Reduced nighttime visibility from a worn exterior lamp
- Replacement needs after collision or front-end repair
Installation Notes and Tips
Verify that the vehicle is equipped with adaptive headlamps before ordering. This assembly is for the left side only and should be matched to the opposite side as needed. Confirm connector condition, mounting points, and aiming after installation to restore proper beam alignment and lighting performance.
Quality Assurance
This headlight assembly is SAE/DOT compliant and built as a complete replacement lighting unit for the specified Mazda CX-9 application. TYC Regular parts are positioned as direct-fit replacement components for exterior lighting repairs.
| Year | Make | Model | Submodel | Body Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2023 | Mazda | CX-9 | Signature | Sport Utility | Left | w/ Adaptive Headlamps; TYC Regular |
| 2022 | Mazda | CX-9 | Grand Touring | Sport Utility | Left | w/ Adaptive Headlamps; TYC Regular |
| 2021 | Mazda | CX-9 | Grand Touring | Sport Utility | Left | w/ Adaptive Headlamps; TYC Regular |
| 2021 | Mazda | CX-9 | Signature | Sport Utility | Left | w/ Adaptive Headlamps; TYC Regular |
| 2021 | Mazda | CX-9 | Carbon Edition | Sport Utility | Left | w/ Adaptive Headlamps; TYC Regular |
| 2020 | Mazda | CX-9 | Grand Touring | Sport Utility | Left | w/ Adaptive Headlamps; TYC Regular |
| 2020 | Mazda | CX-9 | Signature | Sport Utility | Left | w/ Adaptive Headlamps; TYC Regular |
| 2019 | Mazda | CX-9 | Signature | Sport Utility | Left | w/ Adaptive Headlamps; TYC Regular |
| 2019 | Mazda | CX-9 | Grand Touring | Sport Utility | Left | w/ Adaptive Headlamps; TYC Regular |
| 2018 | Mazda | CX-9 | Grand Touring | Sport Utility | Left | w/ Adaptive Headlamps; TYC Regular |
| 2018 | Mazda | CX-9 | Signature | Sport Utility | Left | w/ Adaptive Headlamps; TYC Regular |
| 2017 | Mazda | CX-9 | Signature | Sport Utility | Left | w/ Adaptive Headlamps; TYC Regular |
| 2017 | Mazda | CX-9 | Grand Touring | Sport Utility | Left | w/ Adaptive Headlamps; TYC Regular |
| 2016 | Mazda | CX-9 | Grand Touring | Sport Utility | Left | w/ Adaptive Headlamps; TYC Regular |
| 2016 | Mazda | CX-9 | Signature | Sport Utility | Left | w/ Adaptive Headlamps; TYC Regular |
