Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

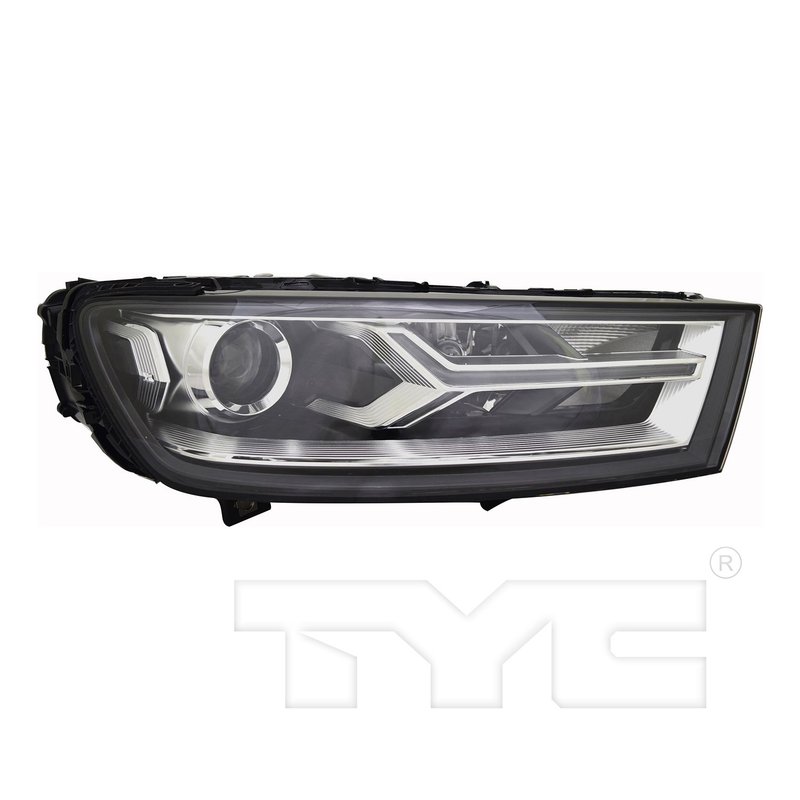

TYC 20-9959-01 Headlight Assembly - Right
| Brand | TYC 20-9959-01 |
|---|---|
| Position | Right |
| Bulb Type | HID |
| Bulbs Included | No |
| Components Included | Lens and Housing |
| Cornering Lamp Bulb Type | Halogen H7 |
| Cornering Lamp Included | No |
| Daytime Running Light Bulb Type | LED |
| Front Side Marker Light Bulb Included | YES |
| Front Side Marker Light Bulb Type | LED |
| Front Signal Light Bulb Included | No |
| Front Signal Light Bulb Type | Halogen PWY 24W |
| High Beam Bulb Included | No |
| High Beam Bulb Type | HID D5S |
| Housing Material | Plastic |
| Lens Material | Plastic |
| Low Beam Bulb Included | No |
| Low Beam Bulb Type | HID D5S |
| Other Side | 20-9960-01 |
| Park Lamp Bulb Included | YES |
| Park Lamp Bulb Type | LED |
| Remarks | HID D5S Bulb Is Not Included |
| Product line | TYC Regular |
| Fits | Audi · 3 vehicles |
HID headlight assembly. Includes the lens and housing for a complete lighting unit.
Plastic construction. Lightweight lens and housing materials help keep the assembly manageable.
LED and HID lighting. Combines modern daytime running, marker, and park lamp illumination.
Cross-references Audi 4M0 941 044 E and Partslink AU2503201 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Right Headlight Assembly for Audi Q7
Restore the front lighting on your 2017-2019 Audi Q7 with this TYC Regular right headlight assembly. Part number 20-9959-01 is built as a lens-and-housing replacement for HID-equipped vehicles and includes the lighting elements specified for this application.
Key Features
- Fits 2017-2019 Audi Q7, right
- TYC Regular headlight assembly, part number 20-9959-01
- HID low beam and high beam design with D5S bulb type
- Plastic lens and plastic housing
- Daytime running light uses LED technology
- Front side marker light bulb included; park lamp bulb included
- Front signal light uses halogen PWY 24W
- Cornering lamp uses halogen H7
- HID D5S bulb is not included
Product Details
This TYC headlight assembly is made for the right side of the Audi Q7 and matches the HID type configuration used on 2017-2019 models. It includes the lens and housing, with LED daytime running light, LED side marker light, and LED park lamp functions, plus halogen cornering and signal lamp provisions. The assembly is identified by part number 20-9959-01 and cross-references Audi 4M0 941 044 E for the same application.
TYC Regular is the brand line for replacement lighting components focused on direct-fit exterior lighting applications. For Audi Q7 owners replacing a damaged or worn right headlight, this assembly provides the correct housing format and bulb-type layout for the specified vehicle years.
Common Reasons to Replace
- Cracked or clouded headlight lens
- Water intrusion or housing damage
- Failed HID lighting output on the right side
- Broken daytime running light, side marker, or park lamp function
- Restoring proper front-end lighting after collision repair
Installation Notes
Verify the vehicle is equipped with HID lighting before ordering. This assembly uses HID D5S low beam and high beam bulb types, and the HID D5S bulb is not included. Confirm the right-side application and compare the existing connector layout, lamp functions, and part number 20-9959-01 against the original unit before installation.
Quality Assurance
TYC manufactures replacement lighting components for direct-fit automotive applications. This headlight assembly is built to match the listed Audi Q7 fitment and lighting configuration for a proper replacement on the right side.
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 2019 | Audi | Q7 | Sport Utility | Right | HID Type; Bulb Type: HID w/ LED DRL; Other Side: 20-9960-01-1; Remarks: HID D5S Bulb Is Not Included; TYC Regular |
| 2018 | Audi | Q7 | Sport Utility | Right | HID Type; Bulb Type: HID w/ LED DRL; Other Side: 20-9960-01-1; Remarks: HID D5S Bulb Is Not Included; TYC Regular |
| 2017 | Audi | Q7 | Sport Utility | Right | HID Type; Bulb Type: HID w/ LED DRL; Other Side: 20-9960-01-1; Remarks: HID D5S Bulb Is Not Included; TYC Regular |
