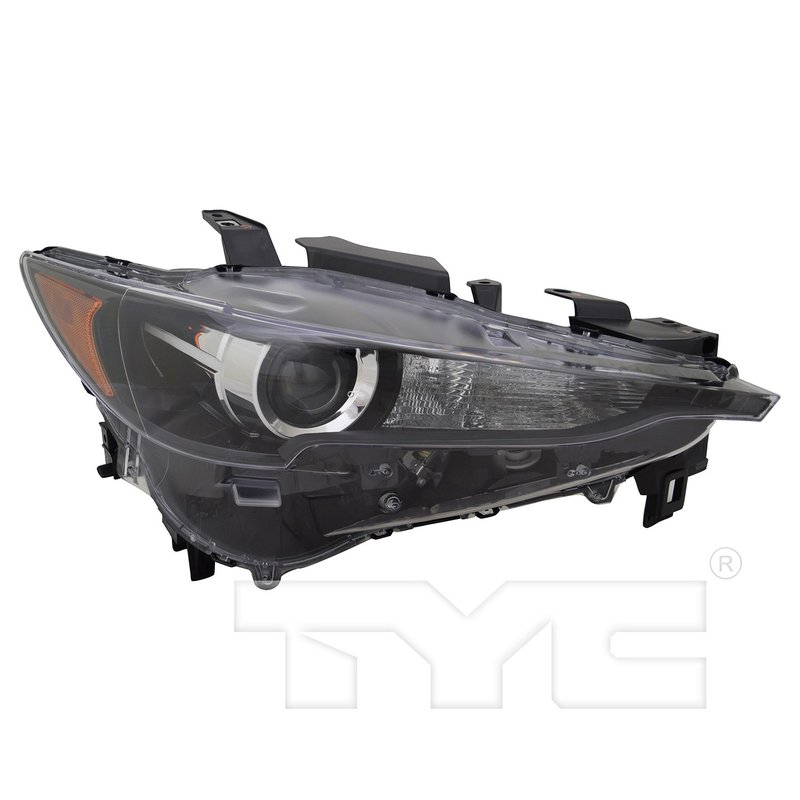

TYC 20-9977-00-9 Headlight Assembly - Right

Overview of TYC CAPA Certified Headlight Assembly for Mazda CX-5

The TYC CAPA Certified Headlight Assembly 20-9977-00-9 is designed specifically for the right side of Mazda CX-5 models. This complete headlight assembly includes LED bulbs and features clear and amber lenses, providing reliable exterior lighting without adaptive headlamp functionality.

• Complete headlight assembly with bulbs included
• Right side fitment for Mazda CX-5
• LED low and high beam bulbs included
• Clear and amber plastic lens and housing
• Halogen bulbs for front side marker and signal lights included
• SAE/DOT compliant for safety standards
• Part number 20-9977-00-9

Detailed Product Features and Specifications

This TYC headlight assembly is constructed with durable plastic for both the lens and housing, ensuring a lightweight yet sturdy design. The assembly includes LED bulbs for both low and high beams, enhancing visibility and energy efficiency. Additionally, the front side marker light and front signal light bulbs are halogen types (W5W and 7444NA respectively), included with the assembly for a complete lighting solution. The lens color combines clear and amber elements to meet vehicle lighting requirements. This assembly is designed without adaptive front lighting system (AFS) features, making it compatible with Mazda CX-5 models that do not have adaptive headlamps.

About the CAPA Certified Product Line

The CAPA Certified line from TYC ensures that each part meets stringent quality and performance standards set by the Certified Automotive Parts Association. This certification guarantees that the 20-9977-00-9 headlight assembly provides reliable fitment and function for the Mazda CX-5, maintaining safety and compliance with SAE and DOT regulations.

Common Applications and Problem Resolution

• Replacement for damaged or cracked right side headlight assembly on Mazda CX-5
• Upgrade from halogen to LED low and high beam lighting
• Restoration of front side marker and signal light functionality
• Addressing issues with dim or non-functioning headlight bulbs
• Ensuring compliance with vehicle lighting safety standards

Installation Notes and Tips

Installation of the TYC 20-9977-00-9 headlight assembly is straightforward for technicians familiar with Mazda CX-5 exterior lighting components. Since hardware is not included, retain original mounting clips and screws during removal. Verify electrical connections for LED and halogen bulbs to ensure proper operation. This assembly is designed for vehicles without adaptive headlamp systems, so confirm vehicle specifications before installation.

Quality Assurance and Warranty

TYC CAPA Certified headlight assemblies are manufactured to meet or exceed OEM standards. The 20-9977-00-9 part is SAE and DOT compliant, ensuring adherence to safety and performance regulations. While specific warranty details vary, TYC products typically come with a limited warranty covering defects in materials and workmanship.
