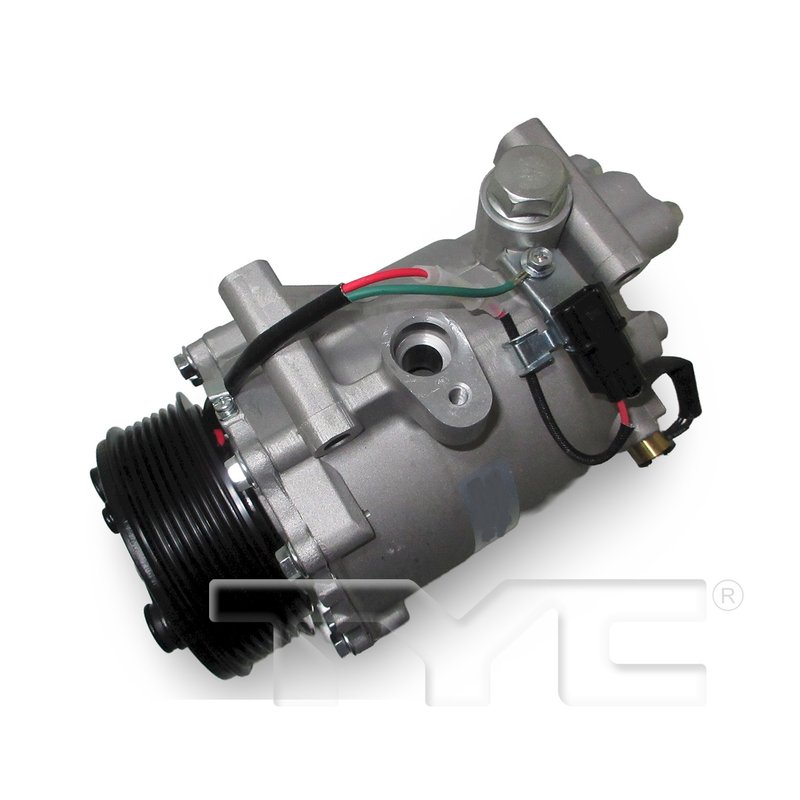

TYC 20009 A/C Compressor
| Brand | TYC 20009 |
|---|---|
| Refrigerant Type | R134a or r1234yf |
| Coil Voltage | 12v |
| Connector Type | 3 pin |
| Electronic Control Valve | No |
| Notes 1 | 2 year warranty |
| O-ring Quantity | 0 |
| Oil Quantity | 3 oz |
| Oiling Type | Pag46yf |
| Pully Wheel Grooves | 7 |
| Fits | Acura and Honda · 11 vehicles |
OE-style replacement. Direct-fit A/C compressor for select HVAC service applications.
Refrigerant flexibility. Supports R134a or R1234yf systems with a 12V coil.
Warranty included. TYC lists a 2-year warranty for this compressor.
Cross-references Four Seasons 98580, Global Parts Distributors LLC 6512639 and 38810-RWC-A03 for the same application. See all 5.
Overview
TYC A/C Compressor 20009 is a direct-fit HVAC compressor for select Acura and Honda applications. It is built for R134a or R1234yf refrigerant systems and uses a 12V, 3-pin electrical connection for straightforward replacement service.
Compatible With select Acura RDX and Honda CR-V applications, this compressor is a fitment-based replacement for vehicles that use a 7-groove pulley and PAG46YF oil specification. Part number 20009 is also cross-referenced to Four Seasons 98580 and Global Parts Distributors LLC 6512639 for the same application.
Key Features
- Supports R134a or R1234yf refrigerant systems.
- 12V compressor with a 3-pin connector.
- 7-groove pulley wheel for matched belt drive engagement.
- Uses PAG46YF oil specification.
- 2-year warranty noted by the manufacturer.
Detailed Description
TYC 20009 is an A/C compressor for 2007-2012 Acura RDX and 2007-2011 Honda CR-V applications. It is specified for systems using either R134a or R1234yf refrigerant, with a 12V coil and 3-pin connector. The compressor is listed with no electronic control valve and an oil quantity of 3 oz, making it a fitment-focused replacement for common OE-style HVAC service.
For buyers searching for an Acura RDX A/C compressor or Honda CR-V A/C compressor, part number 20009 provides a clear match to the listed vehicle coverage. The 7-groove pulley and PAG46YF oil specification are important details when matching the compressor to the existing system. Part number 20009 also appears under Four Seasons 98580 and Global Parts Distributors LLC 6512639.
What It Is Used For
- Restoring cabin cooling when the original compressor has failed.
- Replacing a compressor with an incorrect refrigerant or electrical connection.
- Addressing belt-drive noise related to compressor wear.
- Correcting A/C performance loss caused by internal compressor damage.
- Servicing HVAC systems that require the listed pulley and oil specification.
Installation Notes and Tips
Verify refrigerant type, connector style, pulley groove count, and oil specification before installation. Confirm the vehicle application against the listed fitment for 2007-2012 Acura RDX and 2007-2011 Honda CR-V. System evacuation, leak checking, and proper oil balancing should be completed during A/C service.
Quality Assurance
TYC lists a 2-year warranty for this compressor. Part number 20009 is built for the specified HVAC applications and is cross-referenced to other catalog numbers used for the same fitment.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|---|
| 2012 | Acura | RDX | Base | Sport Utility | 2.3L | L4 | — |
| 2011 | Acura | RDX | SH-AWD | Sport Utility | 2.3L | L4 | — |
| 2011 | Honda | CR-V | SE | Sport Utility | 2.4L | L4 | — |
| 2010 | Acura | RDX | Base | Sport Utility | 2.3L | L4 | — |
| 2010 | Honda | CR-V | EX | Sport Utility | 2.4L | L4 | — |
| 2009 | Acura | RDX | Base | Sport Utility | 2.3L | L4 | — |
| 2009 | Honda | CR-V | EX | Sport Utility | 2.4L | L4 | — |
| 2008 | Acura | RDX | Base | Sport Utility | 2.3L | L4 | — |
| 2008 | Honda | CR-V | LX | Sport Utility | 2.4L | L4 | — |
| 2007 | Acura | RDX | Base | Sport Utility | 2.3L | L4 | — |
| 2007 | Honda | CR-V | EX-L | Sport Utility | 2.4L | L4 | — |
