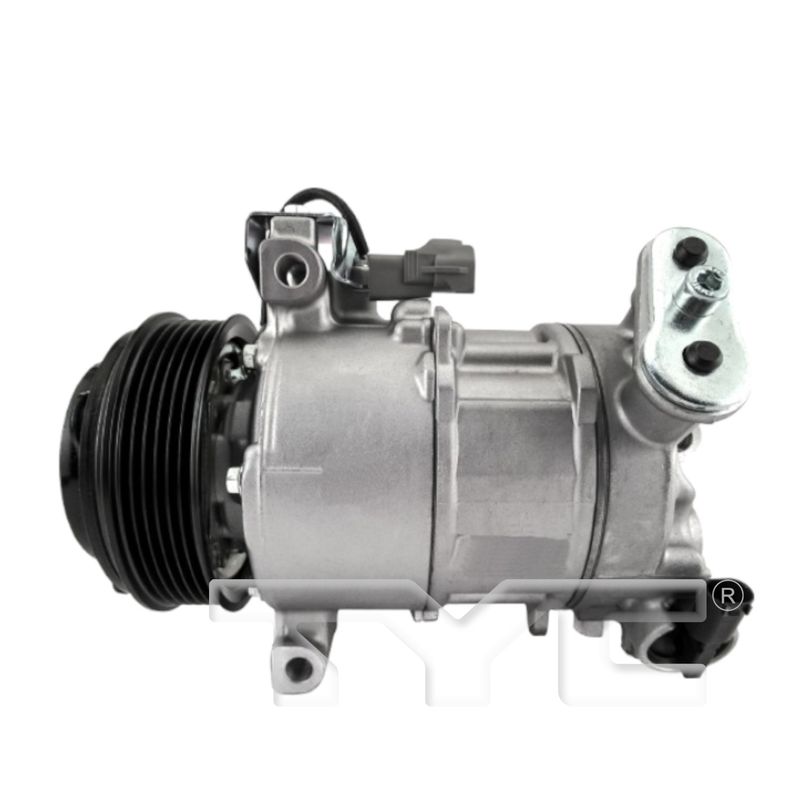

TYC 20312 A/C Compressor

Overview

This TYC A/C compressor, part number 20312, is built for vehicles using R-134a or R1234yf refrigerant and a 12V coil. It is a fitment-based replacement for select Jeep Renegade and Fiat 500X applications, with compressor specifications that match common OE service requirements.

Key Features

• Supports R-134a or R1234yf refrigerant systems.
• 12V coil voltage for standard automotive A/C operation.
• Uses PAG46YF oil specification with 4.7 oz oil quantity.
• 6-groove pulley wheel for belt-driven compressor setups.
• Includes 2 O-rings for sealing at the connection points.
• Backed by a 2 year warranty.

Detailed Description

TYC part number 20312 is an A/C compressor engineered for replacement service in select compact crossover applications. It is specified for 2015-2021 Jeep Renegade and 2016-2018 Fiat 500X models, making it a direct fitment reference for buyers searching for a Jeep Renegade A/C compressor or Fiat 500X compressor replacement. The compressor is configured for R-134a or R1234yf refrigerant, uses a 12V coil, and features a 6-groove pulley wheel to match the belt drive layout used in these applications. The listed oiling type is PAG46YF, with 4.7 oz oil quantity noted for service planning. Part number 20312 also cross-references Four Seasons 168376 for the same application.

Common Uses

• Restoring cooling performance when the compressor is no longer building pressure.
• Replacing a noisy or seized A/C compressor assembly.
• Addressing refrigerant circulation problems in the HVAC system.
• Matching a failed compressor with the correct refrigerant and pulley configuration.

Installation Notes

Verify refrigerant type, coil voltage, pulley groove count, and oil specification before installation. Confirm the vehicle application against the listed fitment for 2015-2021 Jeep Renegade and 2016-2018 Fiat 500X. Replace sealing components as needed during service and follow standard evacuation, recovery, and recharge procedures for the system.

Quality Assurance

This TYC compressor is covered by a 2 year warranty. The part number 20312 is also listed with interchange references including Four Seasons 168376, Global Parts Distributors LLC 6513311, and OE-style references 68245074AA and CO 29252C.
