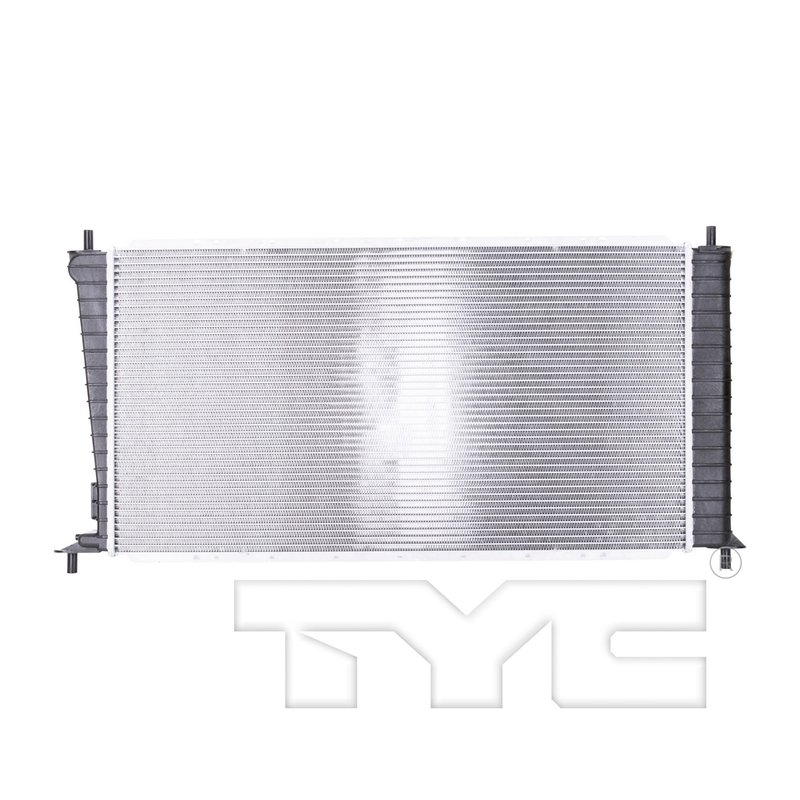

TYC 2136 Radiator - Front
| Brand | TYC 2136 |
|---|---|
| Position | Front |
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 3.16x17.31 |
| Core Height (in) | 16.85 |
| Core Length (in) | 31.89 |
| Core Thickness (in) | 2.2 |
| Fin Count (every 4") | 55 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 3.7 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.77 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.73 |
| Toc Distance (in) | 12.01 |
| Toc Inlet Diameter (in) | 5/8-18unf |
| Toc Inlet Type | Adapter |
| Toc Outlet Diameter (in) | 5/8-18unf |
| Toc Outlet Type | Adapter |
| Top Header | 3.16x17.31 |
| Total Fin Row Count | 43 |
| Total Tube Count | 42 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Ford and Lincoln · 15 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Crossflow design. Supports even coolant flow through the radiator core.
Transmission oil cooler included. Adds integrated cooling for the transmission fluid.
Cross-references APDI 8012136, Ford F75Z 8005 JA and Partslink FO3010144 for the same application. See all 8.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator 2136 for Ford Trucks and SUVs
TYC Radiator 2136 is a direct-fit aluminum radiator built for crossflow cooling layouts and vehicles that use an integrated transmission oil cooler. It is specified for select Ford F-150, Ford F-250 Super Duty, Ford Expedition, and Lincoln Navigator applications with the listed core-depth requirements.
Key Features
- Aluminum core construction for efficient heat transfer
- Crossflow design with one-row core layout
- Transmission oil cooler included with plate-style cooler design
- Hose clamp inlet and outlet connections
- Core dimensions: 31.89 in. length, 16.85 in. height, 2.2 in. thickness
- Inlet diameter: 1.77 in.; outlet diameter: 1.73 in.
- Fits applications requiring a 2-1/4 inch core depth
Product Details
This TYC Radiator line focuses on OE-style replacement cooling components for vehicles that need accurate fitment and dependable thermal management. Part number 2136 uses an aluminum core, crossflow flow configuration, and an integrated transmission oil cooler with adapter-style 5/8-18UNF connections. The radiator is listed for 1997-1998 Ford Expedition, 1998-2002 Lincoln Navigator, 1999-2003 Ford F-250 Super Duty, 2003 Ford F-150, 2004 Ford F-150, and 2004 Ford F-150 Heritage applications, including front-position fitments where specified.
This part cross-references Spectra Premium CU2136 and Ford F75Z 8005 JA for the same application.
What It Helps Address
- Overheating caused by a restricted or leaking radiator
- Transmission temperature issues tied to a failed cooler circuit
- Coolant loss from cracked tanks or damaged core tubes
- Poor heat rejection in high-load towing or daily driving conditions
- Fitment problems when replacing an OE-style crossflow radiator
Installation Notes and Tips
Verify core depth, inlet and outlet diameter, and transmission cooler connection style before installation. This radiator is listed for front and non-positioned applications depending on the vehicle, so match the exact year, make, model, and notes shown in the fitment data. Confirm hose routing and cooler line adapter compatibility before final assembly.
Quality Assurance
TYC Radiator 2136 is built as a replacement cooling component for the listed Ford and Lincoln applications, with construction details that align with OE-style service requirements. Confirm all fitment notes before purchase to ensure the correct radiator for your vehicle.
- Fits 1997-1998 Ford Expedition, N/A
- Fits 1998-2002 Lincoln Navigator, N/A
- Fits 1999-2003 Ford F-250 Super Duty, Front, SUPER DUTY; w/ 2-1/4 inch Core Depth; Crossflow; TYC Radiator
- Fits 2003 Ford F-150, N/A, w/ 2-1/4 inch Core Depth; Light Duty; Crossflow; TYC Radiator
- Fits 2004 Ford F-150, Front, w/ 2-1/4 inch Core Depth; Light Duty; Crossflow; TYC Radiator
- Fits 2004 Ford F-150 Heritage, Front, w/ 2-1/4 inch Core Depth; Light Duty; Crossflow; TYC Radiator
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2004 | Ford | F-150 | — | 5.4L | V8 | Front | w/ 2-1/4 inch Core Depth; Light Duty; Crossflow; TYC Radiator |
| 2004 | Ford | F-150 Heritage | — | 5.4L | V8 | Front | w/ 2-1/4 inch Core Depth; Light Duty; Crossflow; TYC Radiator |
| 2003 | Ford | F-150 | Lightning | 5.4L | V8 | N/A | w/ 2-1/4 inch Core Depth; Light Duty; Crossflow; TYC Radiator |
| 2003 | Ford | F-250 Super Duty | — | 5.4L | V8 | Front | SUPER DUTY; w/ 2-1/4 inch Core Depth; Crossflow; TYC Radiator |
| 2002 | Ford | F-250 Super Duty | — | 5.4L | V8 | Front | SUPER DUTY; w/ 2-1/4 inch Core Depth; Crossflow; TYC Radiator |
| 2002 | Lincoln | Navigator | — | 5.4L | V8 | N/A | w/ 2-1/4 inch Core Depth; Crossflow; TYC Radiator |
| 2001 | Ford | F-250 Super Duty | — | 5.4L | V8 | Front | SUPER DUTY; w/ 2-1/4 inch Core Depth; Crossflow; TYC Radiator |
| 2001 | Lincoln | Navigator | — | 5.4L | V8 | N/A | w/ 2-1/4 inch Core Depth; Crossflow; TYC Radiator |
| 2000 | Ford | F-250 Super Duty | — | 5.4L | V8 | Front | SUPER DUTY; w/ 2-1/4 inch Core Depth; Crossflow; TYC Radiator |
| 2000 | Lincoln | Navigator | — | 5.4L | V8 | N/A | w/ 2-1/4 inch Core Depth; Crossflow; TYC Radiator |
| 1999 | Ford | F-250 Super Duty | — | 5.4L | V8 | Front | SUPER DUTY; w/ 2-1/4 inch Core Depth; Crossflow; TYC Radiator |
| 1999 | Lincoln | Navigator | — | 5.4L | V8 | N/A | w/ 2-1/4 inch Core Depth; Crossflow; TYC Radiator |
| 1998 | Ford | Expedition | — | 4.6L | V8 | N/A | w/ 2-1/4 inch Core Depth; Crossflow; TYC Radiator |
| 1998 | Lincoln | Navigator | — | 5.4L | V8 | N/A | w/ 2-1/4 inch Core Depth; Crossflow; TYC Radiator |
| 1997 | Ford | Expedition | — | 5.4L | V8 | N/A | w/ 2-1/4 inch Core Depth; Crossflow; TYC Radiator |
