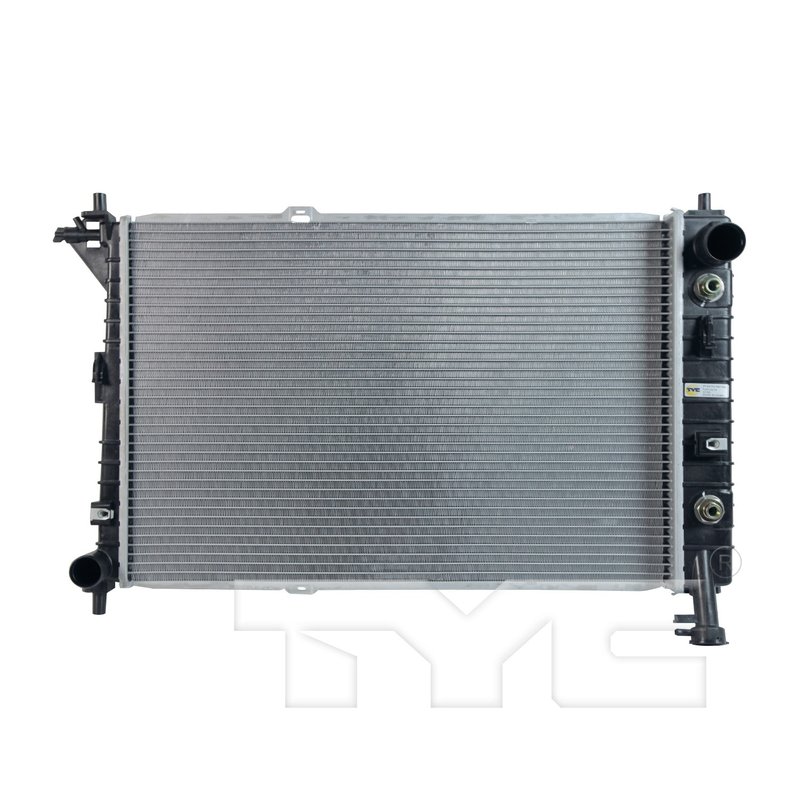

TYC 2138 Radiator

Overview of the TYC Radiator 2138 for Ford Mustang

The TYC Radiator 2138 is engineered specifically for Ford Mustang models, providing reliable cooling performance with integrated transmission oil cooling. Designed with durable aluminum core material, this radiator supports efficient heat dissipation and vehicle operation under demanding conditions.

• Core material constructed from aluminum for effective heat transfer
• Includes a plate-type transmission oil cooler for enhanced transmission cooling
• Crossflow flow configuration for optimized coolant circulation
• Core dimensions: 16.81 inches height, 25 inches length, and 1.02 inches thickness
• Hose clamp inlet and outlet connections with diameters of 1.50 and 1.73 inches respectively
• Single-row tube design with 38 tubes and 39 total fin rows for efficient cooling
• Compatible with Ford Mustang vehicles requiring part number 2138

Detailed Features and Specifications

The TYC Radiator 2138 features an aluminum core that ensures lightweight durability and effective heat dissipation. Its crossflow design promotes uniform coolant flow across the core, improving engine temperature regulation. The radiator includes a plate-type transmission oil cooler, which is integrated with adapter inlet and outlet fittings sized at 1/2-20 UNF, supporting transmission fluid temperature control without the need for a separate cooler.

Core dimensions measure 16.81 inches in height, 25 inches in length, and 1.02 inches in thickness, with a fin count of 73 every 4 inches and a fin wave height of 0.35 inches. The bottom and top headers measure 3.14x17.29 inches and 1.97x17.28 inches respectively, contributing to the radiator’s structural integrity. The inlet and outlet connections use hose clamps, sized at 1.50 inches and 1.73 inches diameter, ensuring secure hose attachment.

About the TYC Radiator Product Line

The TYC Radiator product line focuses on delivering replacement radiators that meet or exceed OEM specifications. This line emphasizes quality core materials and integrated cooling features, such as transmission oil coolers, to support vehicle cooling system efficiency. The TYC Radiator 2138 exemplifies this approach by combining a robust aluminum core with a built-in plate oil cooler, tailored for Ford Mustang applications.

Common Applications and Problem Resolution

• Replacement for leaking or damaged radiators in Ford Mustang vehicles
• Addresses overheating issues caused by inefficient coolant flow or radiator core damage
• Improves transmission cooling performance with integrated oil cooler
• Resolves coolant leaks at hose connections due to worn or incompatible fittings
• Supports engine temperature regulation during high-load or extended driving conditions

Installation Notes and Tips

• Ensure compatibility with Ford Mustang model year and engine specifications before installation
• Inspect and replace all hose clamps and coolant hoses as needed to prevent leaks
• Flush the cooling system prior to installation to remove debris and contaminants
• Verify proper connection of transmission oil cooler adapters to avoid fluid leaks
• Follow manufacturer torque specifications for mounting hardware to secure radiator

Quality Assurance and Warranty

The TYC Radiator 2138 is manufactured to meet industry standards for durability and performance. Constructed with corrosion-resistant aluminum and designed for precise fitment, this radiator supports reliable vehicle operation. Warranty coverage details should be confirmed with the distributor or manufacturer to ensure protection against defects.
